Champion R-10 Bare Replacement Pump, 2hp - 3hp, Splash Lubricated

(0)
$1,850.00
$1,850.00
$3,070.00
Sold out
Quantity must be 1 or more

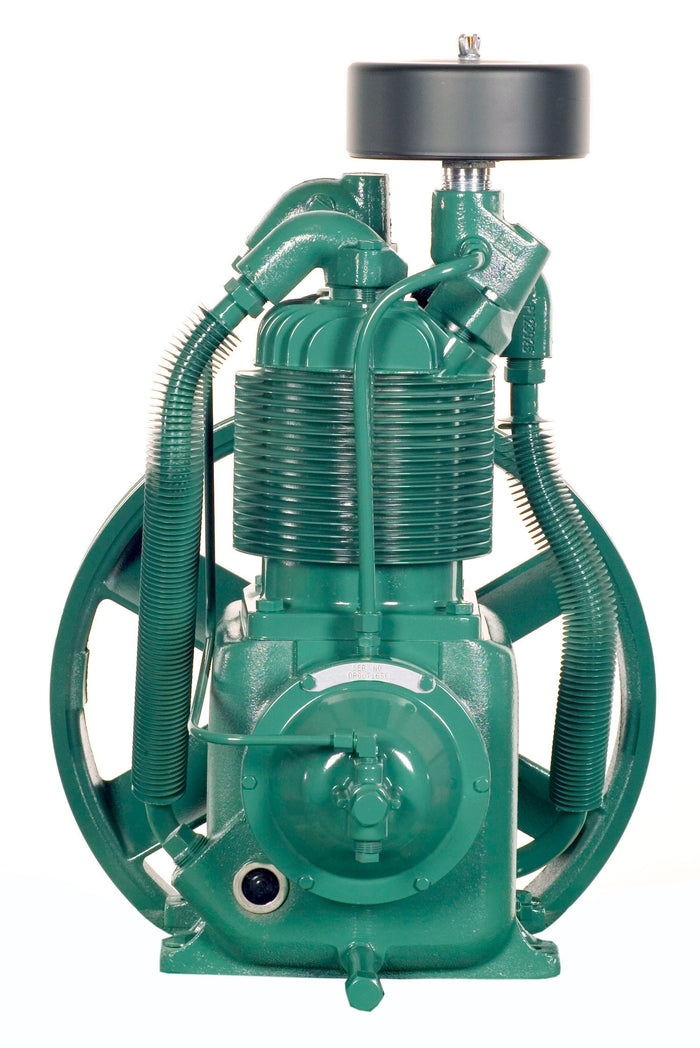

Champion R10 Bare Pump – Heavy-Duty, Professional-Grade Performance

The Champion R10 Bare Pump is the heart of the legendary Champion R-Series—built for reliability, longevity, and superior air delivery in demanding industrial environments. Whether you're rebuilding an existing compressor or upgrading to professional-grade performance, the R10 delivers the durability and output Champion is known for.

Engineered with rugged cast-iron construction, efficient cooling, and field-proven internal components, the R10 is designed to run cooler, last longer, and provide consistent compressed air for shops of all sizes.

As America’s choice for compressed air solutions, Compressed Air Advisors Online proudly offers the Champion R10 Bare Pump backed by expert support and nationwide delivery.

Key Features

  • Rugged Cast-Iron Build
    Industrial-duty construction ensures long life, reliability, and exceptional heat dissipation.

  • Loadless Starting System
    Equipped with a centrifugal unloader for smooth, low-stress starts every time.

  • 10-Micron Industrial Intake Filter
    Helps the pump run cleaner and last longer in dusty shop environments.

  • High-Performance Two-Cylinder Design
    Smooth operation with balanced compression and efficient air handling.

  • ASME Interstage Pressure Relief Valve
    Added safety and reliability under continuous-duty load.

  • 5-Year Pro-Rated Pump Warranty
    Champion’s industry-leading warranty reflects its confidence in the R-Series pump line.

Performance Specifications

(Directly sourced from the Champion R-Series documentation)

Champion R-10 Brochure

  • Model: R-10D

  • Pump RPM (Min/Max): 400–1050

  • Number of Cylinders: 2

  • Bore: 4.6" × 2.5"

  • Stroke: 3"

  • Oil Capacity: 2 Quarts

  • Dimensions (L × W × H): 20" × 16.8" × 23.3"

  • Approx. Shipping Weight: 125 lbs.

Why Choose Champion R-Series Pumps?

Champion R-Series pumps have been trusted for decades in woodworking shops, manufacturing plants, automotive repair facilities, and countless industrial applications. They’re known for:

  • Superior component quality

  • Easy maintenance and serviceability

  • Exceptional reliability in demanding duty cycles

  • Nationwide parts availability

  • Long operating life with minimal downtime

Your Trusted Compressed Air Partner

At Compressed Air Advisors Online, we provide more than just equipment—we provide guidance. If you're installing a new pump, rebuilding an older unit, or designing a system around the R10, our experts can walk you through best practices, compatible motors, tanks, control systems, and installation recommendations.
