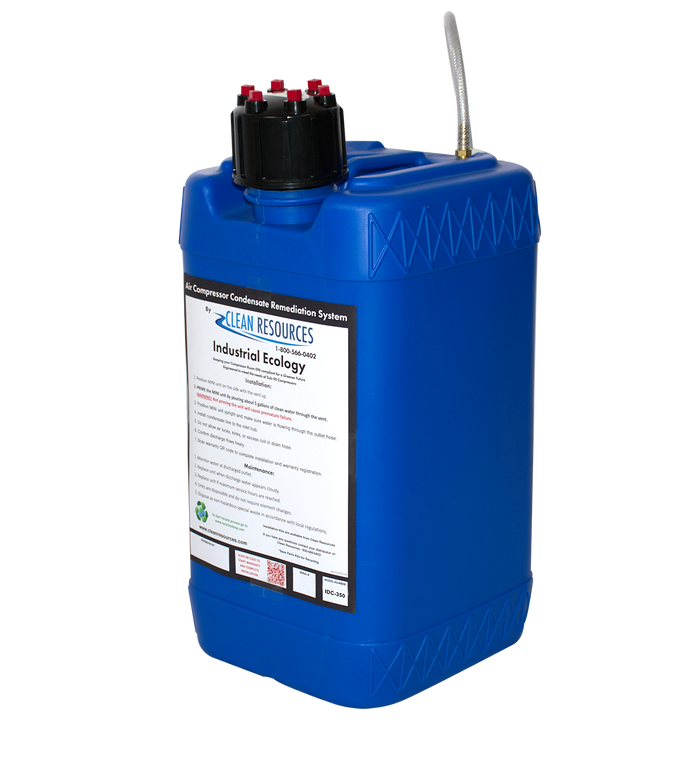

Clean Resources IDC-350 Oil-Water Separator
Manufacturer Part Number: F10050
Treat condensate from small compressed air systems with the Clean Resources IDC-350, part F10050. This passive separator uses alumina silicate substrate media to adsorb lubricant from collected condensate before gravity discharge. It accommodates up to six inlet lines and is designed for systems up to 125 HP, with service life determined by the application.
Key Features & Benefits
- No electrical supply required for the separator itself.
- Six 1/4-inch inlets connect compressor and downstream drain points.
- Proprietary media treats a range of compressor lubricants.
- Integrated decompression arrangement simplifies installation.
- Replace the spent unit without messy media bag change-outs.
Technical Specifications
| Manufacturer | Clean Resources |
|---|---|
| Manufacturer part number | F10050 |
| Model | IDC-350 |
| Part number | F10050 |
| System size | Up to 125 HP; size for required service life |
| Inlets | 6 × 1/4 in |
| Maximum inlet pressure | 175 psi |
| Discharge hose | 3/4 in |
| Dimensions | 12 in W × 14.5 in D × 23 in H |
| Shipping weight | 50 lb |
| Electrical requirement | None for separator; optional discharge pump requires power |
What's Included
- IDC-350 separator with treatment media
- Six-port inlet hub
- Outlet hose
Installation & Maintenance
Prime the separator before use and install according to the IDC-350 instructions. Route the outlet hose flat or downhill without kinks or a submerged end. If an auxiliary discharge pump is used, place the IDC-350 on a suitable stand with the separator outlet higher than the pump inlet. Check vents and drainage during routine inspection.
Estimated Media Life
| Compressor HP | ACFM | Estimated media life (hours) |
|---|---|---|
| 15 | 75 | 32,000 |
| 25 | 125 | 19,000 |
| 40 | 200 | 13,000 |
| 60 | 300 | 9,000 |
| 75 | 375 | 7,000 |
| 100 | 500 | 5,000 |
| 125 | 600 | 4,000 |
Estimates assume rotary screw compressors with 2 ppm oil carryover running 8,000 hours per year. Compressor condition, oil consumption, maintenance, and annual runtime affect service life. Consult us for reciprocating-compressor sizing and runtime corrections; these estimates are not an unconditional change-out guarantee.
Manufacturer Performance Guarantee & Recycling
When properly sized, installed, and registered, Clean Resources guarantees treatment of compressor condensate to 10 ppm or less for twelve months. If a registered unit fails under those conditions within one year, the manufacturer provides a prorated refund of the remaining warranty amount. Confirm the discharge requirements for your facility. Registered units qualify for manufacturer recycling; follow the program's return instructions or applicable state and local disposal rules.
Compatible Accessories & Related Products
- Installation Kit 1 — F10101 — For one compressor.
- Installation Kit 2 — F10102 — For two compressors.
- Installation Kit 3 — F10103 — For three compressors.
- Auxiliary Discharge Pump System — F10245 — For remote or elevated final drains; the separator must gravity-feed the pump.
- Spill Containment Platform — A10737 — Collects incidental drips and spills.
Browse our Clean Resources oil-water separators for related condensate-management equipment.
Frequently Asked Questions
Is the IDC-350 limited to exactly 350 CFM?
Select it using the manufacturer's capacity and service-life information rather than the model number alone. The listed application range extends to 125 HP, with shorter media life at higher loading.
Does the IDC-350 require power?
The separator itself operates without electricity. An optional auxiliary discharge pump has its own electrical requirements.
How many inlet lines can I connect?
The unit has six 1/4-inch inlets for compressor or downstream equipment condensate lines.
Can I use it with a reciprocating compressor?
Confirm sizing and service life for the compressor's oil carryover. The supplied service-life chart is based on rotary screw compressors and should not be applied unchanged to a reciprocating system.
Can I pump treated water to a higher drain?
Yes, with a correctly installed auxiliary discharge pump. The IDC-350 must be elevated so it gravity-feeds the pump inlet.
Does the CRP annual maintenance kit fit this separator?
F10511 services CRP manifold filters and sanitary pouches. It is not an IDC-350 media replacement kit.
What is the manufacturer's performance guarantee?
When properly sized, installed, and registered, the manufacturer guarantees treatment to 10 ppm or less for twelve months, with a prorated refund of the remaining warranty amount if a registered unit fails under those conditions.
How is the spent separator handled?
Registered units qualify for the manufacturer's recycling program. Follow its return instructions or applicable state and local disposal requirements.
