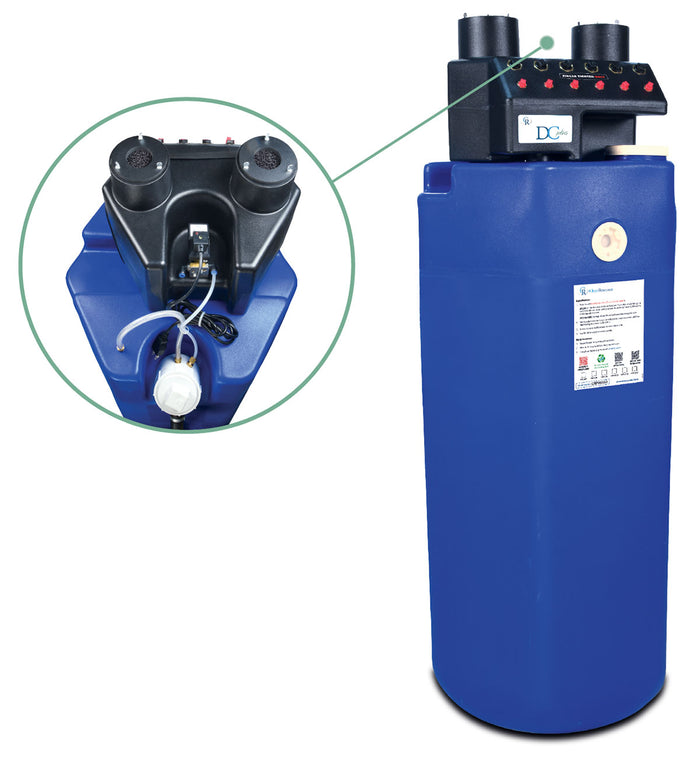

Clean Resources CRP-500 Oil-Water Separator
Part Number (Complete System): F10501
Part Number (Replacement Drum Only): F10501R
For Compressed Air Systems from 30 HP to 250 HP
The Clean Resources CRP-500 is the next evolution of condensate management. Engineered as the upgraded successor to the proven IDC Series, the CRP-500 introduces a redesigned compression-fit manifold, expanded inlet capacity, and integrated timed air pulses that dramatically improve condensate flow and separator efficiency.
If you need EPA-compliant condensate disposal without pumps, heaters, electrical controls, or messy filter bags—the CRP-500 delivers it with zero maintenance, long service life, and true cradle-to-grave support.
Key Advantages
-
Next-Generation Manifold Design – Now accepts 12 total inlet lines (six ¼″ and six ½″), doubling the plumbing flexibility of the IDC Series.
-
Timed Air Pulse Drain – Automatically releases a controlled air burst every 12 hours to keep media beds flowing freely.
-
Antimicrobial Discharge Protection – Prevents algae, mold, and bacterial buildup inside the discharge line.
-
Handles All Lubricants – Mineral, synthetic, PAO, diester, and glycol-based compressor oils.
-
No Filter Bags or Service Kits – No mold exposure, no media scooping, no downtime.
-
Guaranteed Disposal Compliance – Reduces condensate contaminants to 10 ppm or less when properly sized and installed.
Specifications
| Model | Width | Depth | Height (with Manifold) | Shipping Weight |
|---|---|---|---|---|
| CRP-500 | 16 in | 15 in | 48 in | 110 lbs |
Height without manifold: 39 in.
Estimated Media Life
| HP | ACFM | Approx. Unit Life (Hours) |
|---|---|---|
| 30 | 150 | 32,000 |
| 50 | 250 | 19,000 |
| 75 | 375 | 13,000 |
| 125 | 600 | 8,000 |
| 200 | 1000 | 5,000 |
| 250 | 1250 | 4,000 |
Media life varies based on lubricant type, humidity, and condensate load.
Recycling & Responsible Disposal
Just like all Clean Resources systems, CRP-500 units qualify for free factory recycling or can be disposed of as non-hazardous special waste. To recycle, simply register your unit and submit the serial number at:
https://recycleoilsep.com
