Champion D5 Air System – 5 HP Rotary Screw Compressor – 145 PSI

(0)
$8,924.00
$8,924.00
$11,088.00
Sold out
Quantity must be 1 or more

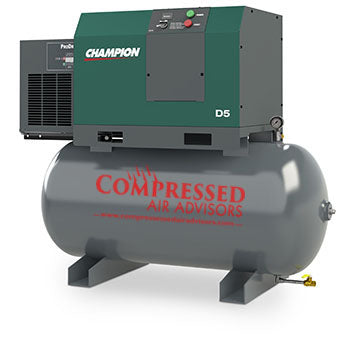

Champion D5 Air System – 5 HP Rotary Screw Compressor – 145 PSI

If you are upgrading from a piston compressor or installing a complete compressed air system for the first time, the Champion D5 Air System (AS) gives you everything you need in one engineered package.

This is not just a compressor. It is a fully integrated air solution.

The D5 AS combines a 5 HP rotary screw compressor, 60-gallon air receiver, refrigerated air dryer, and 1-micron pre-filter into a compact, plug-and-play system designed for continuous operation. At 145 PSI, the D5 produces 16 SCFM, delivering consistent, stable airflow for shops that depend on reliable compressed air every day.

Performance Specifications – D5 AS (145 PSI)

  • Horsepower: 5 HP

  • Maximum Pressure: 145 PSI

  • Airflow: 16 SCFM @ 145 PSI

  • Drive Configuration: Belt Drive

  • Motor Speed: 1740 RPM

  • Tank Size: 60 Gallon Air Receiver

  • Dimensions: 52" L × 23" W × 44" H

  • Weight: 505 lbs

  • Noise Level: 65 dBA

  • Voltage: 230V Single Phase

  • Controller: CSC15

Complete Air System Included

Every D5 Air System includes:

✔ Rotary Screw Compressor
✔ 60 Gallon Dry Tank Air Receiver
✔ Refrigerated Air Dryer
✔ 1 Micron Pre-Filter
✔ Pressure Gauge
✔ Tank Drain
✔ Separate Electrical Connections (Compressor & Dryer)

The air is treated before entering the receiver tank, dramatically reducing internal corrosion while delivering clean, dry air to your facility. That means better tool performance, improved product quality, and longer downstream equipment life.

Built for 100% Duty Cycle

The D5 is engineered to run continuously. If your air demand does not stop, your compressor should not either. This rotary screw platform eliminates the constant cycling and recovery delays common with reciprocating compressors.

Stable pressure. Reliable airflow. Production-ready performance.

Integrated Design for Long-Term Reliability

Champion’s integrated airend and combination oil/air cooler reduce connection points and improve serviceability. Fewer potential leak paths. Lower discharge temperatures. Greater system efficiency.

Compact footprint. Industrial durability.

Ideal Applications

  • Automotive repair shops

  • Woodworking and cabinet operations

  • CNC machining

  • Maintenance departments

  • Light manufacturing

  • Assembly and packaging facilities

Why Buy from Compressed Air Advisors Online?

Compressed Air Advisors Online is America’s choice for compressed air solutions. We help customers nationwide properly size and configure air systems so they get it right the first time.

✔ Free Freight within the Continental United States
✔ Nationwide compressed air expertise
✔ Premium manufacturers like Champion
✔ Real technical guidance before and after the sale
✔ Financing options available

When you purchase from us, you are partnering with compressed air professionals who understand uptime, efficiency, and long-term ROI.
