Nano DXR 1800 Direct Expansion Refrigerated Air Dryer – 1800 SCFM, 460V/3Ph/60Hz

(0)
$26,947.00
$26,947.00
$443,769.00
Sold out
Quantity must be 1 or more

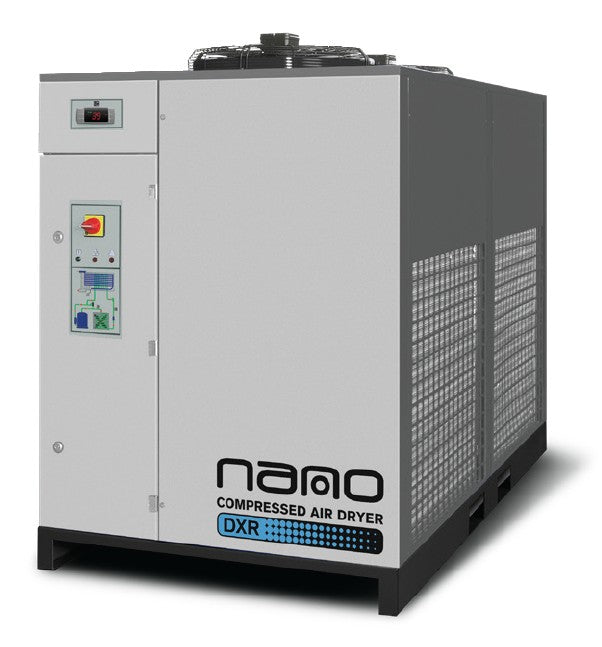

Nano DXR 1800 Direct Expansion Refrigerated Air Dryer – 1800 SCFM, 460V/3Ph/60Hz

For operations where compressed air quality can’t be left to chance, the Nano DXR 1800 is the industrial solution you can count on. Built for high-performance moisture removal at flow rates up to 1800 SCFM, this refrigerated air dryer features a scroll compressor, fully integrated heat exchanger, and a zero air loss condensate drain—delivering reliability, efficiency, and simplicity in one powerful package.

Engineered with rugged components and intelligent controls, the DXR 1800 ensures your compressed air stays dry, protecting downstream tools, automation, and finished products. Whether you're managing a production facility, machine shop, or packaging plant, this dryer is up to the task.

At Compressed Air Advisors Online, Inc. — America’s Choice for Compressed Air Solutions, we proudly deliver premium equipment, nationwide expertise, and real human support. Our team knows air systems, stocks what you need, and partners with leading manufacturers like Nano, Champion, Elgi, and FS Curtis to ensure you're getting the best solution possible. Coast to coast, we're your compressed air partner.

Key Specifications:

  • Flow Capacity: 1800 SCFM @ 100°F inlet / 100 PSIG (ISO 7183 A2)

  • Voltage: 460V / 3-Phase / 60Hz

  • Power Consumption: 9.4 kW | Full Load Amps: 15 A

  • Compressor Type: Scroll – high efficiency and long service life

  • Refrigerant: R410A (eco-friendly and efficient)

  • Air Connections: 4" ANSI Flanged

  • Pressure Drop: 4.2 PSID

  • Temperature & Pressure Limits:

    • Inlet Temp: Max 140°F

    • Ambient Temp: 41°F to 114.8°F

    • Operating Pressure: 60 to 203 PSIG

  • Cooling: 2 axial fans | 9,747 SCFM

  • Dimensions: 60" L x 40" W x 72" H

  • Weight: 1,019 lbs

Performance Features:

  • Air-to-air & air-to-refrigerant heat exchanger design

  • Fully insulated internal components for optimal efficiency

  • Digital dew point display with remote alarm contacts

  • Automatic power-on restart functionality

  • Integrated water separator & zero air loss condensate drain

  • Easy, single-point electrical connection
