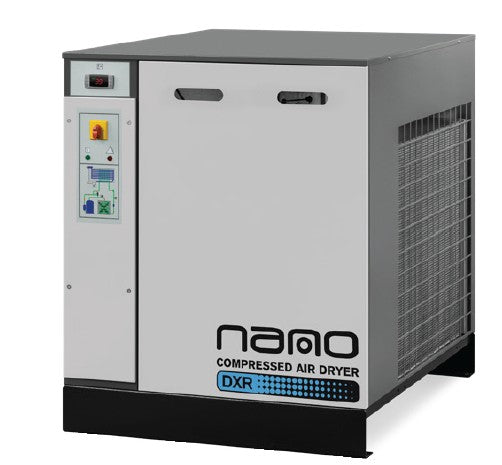

Nano DXR 400 Direct Expansion Refrigerated Air Dryer – 400 SCFM, 460V/3Ph/60Hz
The Nano DXR 400 offers powerful and efficient moisture removal for compressed air systems requiring up to 400 SCFM. Built for reliability and ease of use, this direct expansion refrigerated air dryer is perfect for small to mid-size operations in manufacturing, fabrication, auto body, and packaging industries.
With a piston compressor, zero air loss condensate drain, and fully integrated air-to-air and air-to-refrigerant heat exchanger, the DXR 400 ensures dry air delivery while maintaining energy efficiency and system protection. Digital dew point monitoring, service alerts, and automatic restart functions round out its smart, user-friendly features.
At Compressed Air Advisors Online, Inc. — America’s Choice for Compressed Air Solutions, we provide more than just product access—we provide real answers, nationwide support, and equipment from the industry’s top manufacturers like Nano, FS Curtis, Champion, and Elgi. Whether you're buying a single dryer or planning a full air system, we’re your compressed air partner coast to coast.
Key Specifications:
-
Flow Capacity: 400 SCFM @ 100°F inlet / 100 PSIG (ISO 7183 A2)
-
Voltage: 460V / 3-Phase / 60Hz
-
Absorbed Power: 3.22 kW | Full Load Amps: 5.8 A
-
Refrigerant: R410A – efficient and eco-friendly
-
Compressor Type: Piston – simple, durable, and ideal for moderate-duty use
-
Air Connections: 2" NPT (Female)
-
Pressure Drop: 2.9 PSID
-
Cooling Air Flow: 3,531 SCFM via axial fan
-
Operating Limits:
-
Inlet Temp: Max 140°F
-
Ambient Temp: 41°F to 114.8°F
-
Pressure Range: 60–203 PSIG
-
-
Dimensions: 32" L x 41" W x 38" H
-
Weight: 349 lbs
Performance Features:
-
Air-to-air & air-to-refrigerant integrated heat exchanger
-
Fully insulated for efficient operation
-
Zero air loss drain with integrated water separator
-
Digital dew point display and service reminders
-
Remote alarm contact and automatic restart
-
Single-point electrical connection for easy setup
