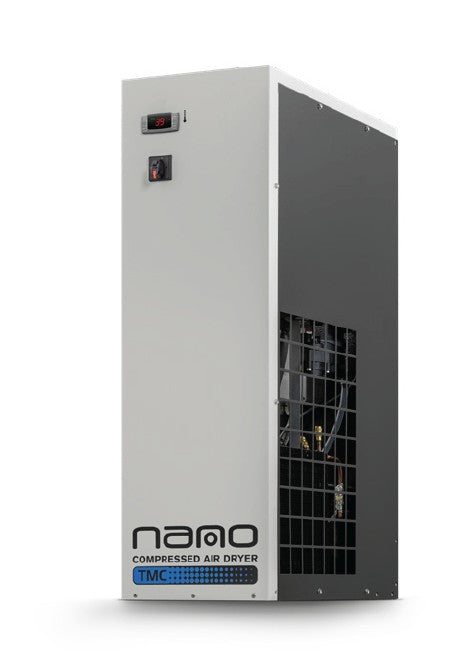

Nano TMC 0075N – 75 SCFM Thermal Mass Cycling Refrigerated Air Dryer
Powerful, Energy-Smart Air Drying for Demanding Applications
The Nano TMC 0075N delivers industrial-grade moisture removal with built-in energy savings, ideal for growing compressed air systems. With a 75 SCFM capacity, this thermal mass cycling refrigerated air dryer is equipped to handle moderate to heavy-duty operations—all while reducing energy consumption thanks to its smart glycol-based cycling system.
Designed for reliability and sustainability, the TMC 0075N maintains an ISO Class 5 dew point, prevents pressure drops, and features zero-loss drainage. It’s the go-to solution for manufacturers, body shops, and packaging lines that can’t afford downtime or moisture contamination.
Key Features:
-
75 SCFM Capacity – Built for mid-size to heavy-duty compressed air demands
-
Thermal Mass Cycling Efficiency – Runs only when needed, saving on energy costs
-
Environmentally Friendly R513A Refrigerant – Lower global warming potential
-
Zero Air Loss Drain – Automatically purges moisture without wasting air
-
Dew Point Display & Auto Control – Built-in controller for hands-free precision
-
Quiet Operation in a Compact Frame – Just 12.4" W x 29.4" D x 39.1" H and 53 dB(A)
Technical Specs:
-
Operating Pressure: 29–210 psig
-
Max Inlet Temp: 140°F
-
Ambient Range: 41°F to 115°F
-
Connections: 1 ¼” NPT (F)
-
Power: 115V / 1Ph / 60Hz
-
Absorbed Power: 0.83 kW
-
Weight: 154 lbs
Compressed Air Advisors Online, Inc. is America’s choice for compressed air solutions. From expert guidance to national delivery logistics, we’ve got the know-how and premium products to power your productivity.
Have questions? Need help sizing the right dryer? Contact us—we’re ready to help.
