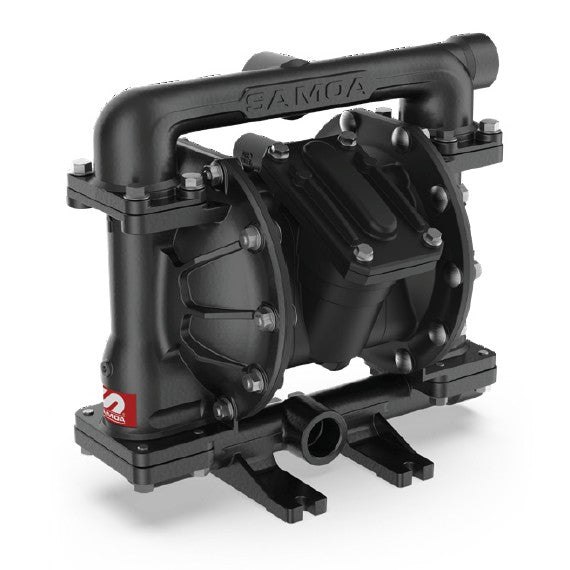

UP10 Aluminum – 1” Ported Air Operated Diaphragm Pump
When you need higher flow capacity and rugged durability for petroleum-based fluid transfer, the UP10 Aluminum 1” Ported Diaphragm Pump delivers powerful, dependable performance driven by compressed air.
With an impressive 53 GPM (200 L/min) maximum free flow, this 1:1 ratio air-operated diaphragm pump is engineered for high-volume transfer, de-watering, and fluid evacuation in demanding industrial and fleet environments.
Constructed with an aluminum central body and air chambers, combined with Hytrel® diaphragms and valve components, the UP10 Aluminum model is built for long service life and reliable operation under continuous-duty conditions.
Key Performance Specifications
-
Pump Ratio: 1:1
-
Maximum Flow Rate: 53 GPM (200 L/min)
-
Maximum Dry Suction Lift: 16 ft (5 m)
-
Maximum Wet Suction Lift: 26 ft (8 m)
-
Operating Air Pressure Range: 20 – 120 PSI
-
Maximum Solids Handling: 1/4” (6.4 mm)
-
Air Inlet: 1/2” NPT (F)
-
Fluid Outlet: 1” NPT (F)
-
Wetted Materials: Hytrel®
Engineered for High-Volume Performance
The UP10 Aluminum features:
-
Frictionless pivoting air valves for smooth, consistent cycling
-
Bolted cover design for secure sealing and easy service
-
Long-life diaphragms for extended maintenance intervals
-
Conventional flow design paired with a fast-acting pivoting air valve for increased delivery and dependable output
-
Multiple inlet and outlet port options for installation flexibility
This pump is designed for operators who demand performance without downtime.
Common Applications
The UP10 Aluminum is ideal for:
-
Industrial maintenance
-
Mining and construction
-
Railroad and mass transit facilities
-
Agricultural service operations
-
Automotive dealerships
-
Fleet maintenance centers
-
Lube trucks
Fluids Commonly Handled (Aluminum Model)
-
Lubricants
-
Used oil
-
Used fluids
-
Diesel
Built for Tough Fluid Transfer Applications
If your operation requires higher flow than standard 1” diaphragm pumps and you’re transferring petroleum-based fluids, the UP10 Aluminum provides the airflow-powered reliability professionals trust.
