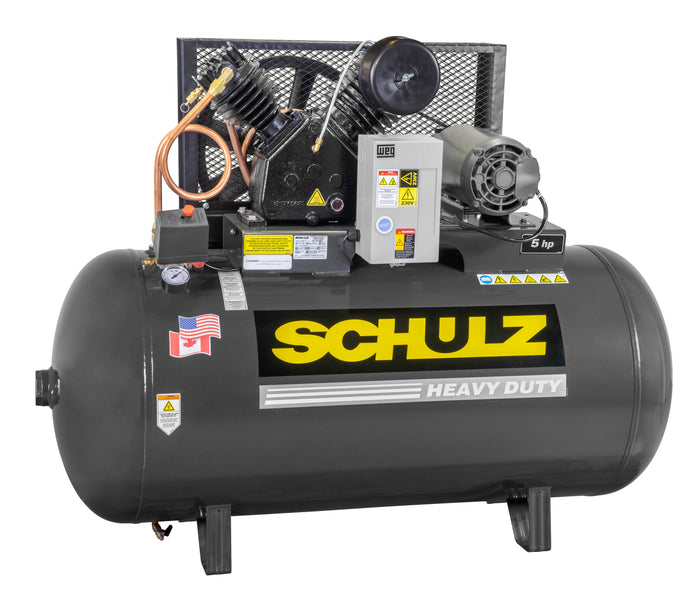

Schulz 580HV20X V-Series — 5 HP, 15.6 CFM, 80-Gallon Air Compressor
The Schulz 580HV20X delivers 15.6 CFM at 175 PSI from a 5 HP package with a 80-gallon horizontal ASME receiver. Its cast-iron MSV20 MAX pump and low-speed belt drive provide a serviceable compressed-air system for automotive service, maintenance, and general shop applications.
Features and Benefits
- Cast-iron pump construction: Durable, serviceable compressor design.
- 1,050 RPM pump speed: Low-speed operation with a belt-driven V-configuration pump.
- Powder-coated ASME receiver: Durable compressed-air storage.
- Automatic start/stop: Pressure-switch operation responds to receiver pressure.
- Enclosed metal belt guard: Covers the drive assembly while allowing access for belt-tension adjustment.
- Balanced pulleys and oversized check valves: Included standard equipment.
- Pressure gauge, safety relief valve, and manual drain: Support routine operation and maintenance.
Technical Specifications
| Model | 580HV20X |
|---|---|
| Manufacturer part numbers | 932.9345-0; 932.9346-0 |
| Motor | 5 HP |
| Delivered airflow (FAD) | 15.6 CFM at 175 PSI |
| Maximum working pressure | 175 PSI |
| Receiver | 80 gallons, horizontal |
| Pump | MSV20 MAX |
| Pump speed | 1,050 RPM |
| Dimensions (L × W × H) | 56 × 23 × 42 inches |
| Condensate drain | Manual |
| Pump warranty | Two years, subject to manufacturer terms |
Complete Your Air System
Pair this compressor with a properly sized air dryer and compressed-air filtration. Compressed Air Advisors can help match air treatment to your application and confirm delivery requirements.
Frequently Asked Questions
How much air does this compressor deliver?
The 580HV20X delivers 15.6 CFM of free air at its maximum pressure of 175 PSI. This is delivered airflow, not the pump's displacement rating.
Which applications is it suited for?
It is an option for automotive service, tire work, maintenance, woodworking, and general shop air when total airflow, pressure, and duty requirements fit the compressor. Contact our team for application sizing.
Does it include an air dryer?
No air dryer is included in this listing. Add a properly sized dryer and filtration system when your tools or process require dry, clean compressed air.
How is tank condensate removed?
The standard V-Series equipment includes a manual condensate drain. Drain and maintain the receiver according to Schulz instructions.
What warranty is listed?
Schulz lists a two-year pump warranty. Coverage is subject to manufacturer terms and installation and maintenance requirements.
Does it qualify for free shipping?
Yes. This compressor qualifies for our free-shipping offer. Confirm liftgate and special delivery requirements before ordering.
How do I confirm the correct electrical configuration and ship date?
Review the voltage and phase section below. Call Compressed Air Advisors at 877.247.2381 to confirm the electrical configuration, current availability, and ship date.
Voltage and Phase — Select Before Ordering
Choose the voltage and phase that match your facility’s electrical supply. The displayed selling price is for the selected configuration.
- 230V / Single Phase — SKU: 932.9345-0
- 230V / Three Phase — SKU: 932.9346-0-230/3
- 460V / Three Phase — SKU: 932.9346-0-460/3
460V orders: Factory voltage conversion is included in the displayed price of the 460V option; do not add a separate conversion charge. Contact Compressed Air Advisors to confirm factory availability and the ship date before ordering.
