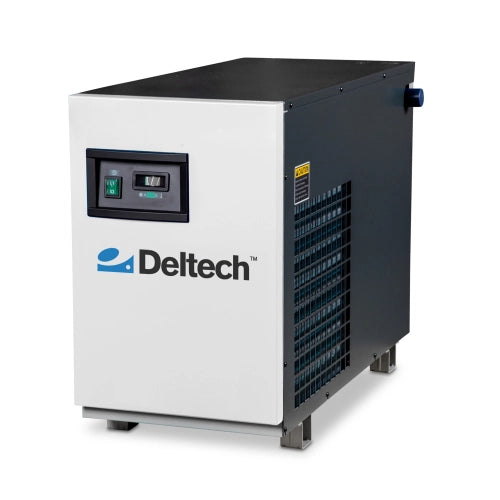

Deltech HGEN200-4 Refrigerated Air Dryer – 200 SCFM, 460V/3Ph

The Deltech HGEN200-4 is a heavy-duty, non-cycling refrigerated air dryer built to deliver clean, dry, reliable compressed air for industrial applications. Rated for 200 SCFM, this model is the perfect match for systems powered by 40–50 HP compressors. Operating on 460V / 3-phase / 60 Hz, the HGEN200-4 is engineered for continuous duty performance, protecting your tools, equipment, and processes from costly moisture damage.

At Compressed Air Advisors Online, we only recommend proven, factory-backed equipment like Deltech—so you can buy with confidence, knowing you’re getting the right solution the first time.

Key Features

  • 200 SCFM capacity – Sized for mid-range compressed air systems in the 40–50 HP range.

  • 460V / 3-Phase power – Designed specifically for industrial electrical service (not compatible with 230V).

  • Consistent 38°F dew point – Keeps moisture out of your system to prevent corrosion, contamination, and downtime.

  • Non-cycling design – Reliable, steady dew point performance without temperature swings.

  • Energy-smart hot gas bypass valve – Maintains efficiency under varying load conditions.

  • Stainless steel heat exchangers – Durable, low pressure drop, long service life.

  • Electronic condensate drain – Automatic removal of water for worry-free operation.

  • Compact design – Easy to install with 1" NPT connections and manageable footprint.

Technical Specifications

  • Flow Capacity: 200 SCFM @ 100 PSIG

  • Power Requirement: 460V / 3-Phase / 60 Hz

  • Max Inlet Temperature: 120°F

  • Max Operating Pressure: 232 PSIG

  • Refrigerant: R-407C

  • Power Consumption: ~1.8 kW

  • Connections: 1" NPT

  • Dimensions (H × W × D): 30" × 17" × 36"

  • Weight: 165 lbs

Applications

  • Manufacturing plants & machine shops

  • Automotive repair & paint booths

  • Food & beverage packaging operations

  • Pneumatic tools, robotics, and automation lines

  • Powder coating & finishing processes

If your operation depends on dry, dependable air, the HGEN200-4 is built for you.
