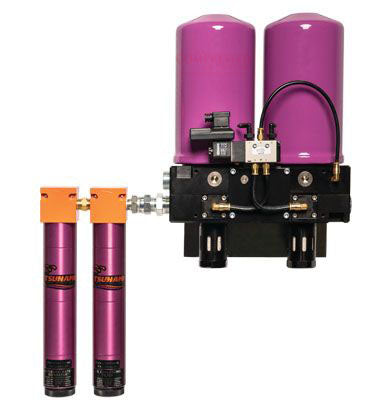

Tsunami Pure-10 – Pure Series Regenerative Air Dryer, 10 HP / 40 CFM, 120V or 220V
40 CFM Regenerative Desiccant Air Dryer | For 10 HP Compressors | 120V or 220V | Float or Moisture Minder® Pneumatic Drains | Dew Points Down to -80°F
Short Product Description
The Tsunami Pure-10 Regenerative Air Dryer delivers up to 40 CFM of clean, extremely dry compressed air for approximately 10 HP compressor systems. Featuring integrated two-stage pre-filtration, twin regenerative desiccant towers, dew points down to -80°F , and your choice of 120V or 220V power , the Pure-10 is designed for demanding paint, manufacturing, pneumatic, CNC, woodworking, and moisture-sensitive compressed air applications. Choose standard float drains or Tsunami Moisture Minder® pneumatic drains to match your installation.
Full Product Description
The Tsunami Pure-10 Pure Series Regenerative Air Dryer is a compact, wall-mounted compressed air treatment system engineered to provide exceptionally clean, dry compressed air for commercial shops, manufacturing equipment, paint applications, and other moisture-sensitive processes.
Rated for up to 40 CFM and designed for approximately 10 HP compressor systems , the Pure-10 combines Tsunami's integrated two-stage pre-filtration system with twin regenerative desiccant towers to remove liquid water, compressor oil, aerosols, particulates, and water vapor from the compressed air stream.
The Pure-10 can provide dew points down to -80°F and relative humidity levels down to approximately 0.01% RH , making it an excellent choice when compressed air must be significantly drier than the air produced by a conventional refrigerated air dryer.
Before compressed air reaches the regenerative dryer, it passes through two stages of filtration:
- First Stage Water Separator: Removes liquid water and particulate contamination down to 10 micron.
- Second Stage Oil Coalescing Filter: Removes bulk oils and aerosols while filtering fine particulate contamination down to 0.01 micron.
After pre-filtration, the compressed air enters the twin regenerative desiccant towers. One tower actively removes water vapor while the second tower regenerates using a small amount of previously dried compressed air.
Approximately every two minutes, the Pure-10 automatically switches between towers. One molecular sieve desiccant bed remains in service while the other regenerates, providing a continuous supply of extremely dry compressed air.
The Pure-10 uses approximately 2.2 CFM of compressed air during regeneration , with each tower operating for approximately 120 seconds before switching.
The Pure-10 is available in four primary voltage and drain combinations:
- PN 21999-1010 – 120V with Float Drains
- PN 21999-1010-220 – 220V with Float Drains
- PN 21999-1010-MM – 120V with Moisture Minder® Pneumatic Drains
- PN 21999-1010-MM-220 – 220V with Moisture Minder® Pneumatic Drains
All four configurations provide the same 40 CFM maximum flow capacity, twin-tower regenerative drying performance, 175 PSI maximum operating pressure, and dew points down to -80°F .
Key Features
- 40 CFM maximum air flow
- Designed for approximately 10 HP compressed air systems
- Available in 120V or 220V
- Available with float or Moisture Minder® pneumatic drains
- Twin-tower regenerative desiccant drying technology
- Dew points down to -80°F
- Relative humidity down to approximately 0.01% RH
- Molecular sieve desiccant
- One tower dries while the other regenerates
- Approximately 2-minute regeneration cycle
- 120-second tower drying time
- Approximately 2.2 CFM regeneration air consumption
- Integrated two-stage pre-filtration
- First-stage water separator
- Second-stage oil coalescing filter
- Removes liquid water
- Removes bulk oils and aerosols
- Filters particulate down to 0.01 micron
- Solenoid valve timer
- Automatic condensate drains
- Purge exhaust mufflers
- Maximum operating pressure of 175 PSI
- Maximum inlet temperature of 150°F
- Minimum inlet pressure of 80 PSI
- 1/2" NPT inlet
- 1" NPT outlet
- Wall mounting brackets included
- Few moving parts for simplified maintenance
- Heater pads available for cold-temperature applications
- C1D1-compatible configurations available for hazardous locations
Benefits
Provides Extremely Dry Compressed Air
The Pure-10 can achieve dew points down to -80°F , providing substantially drier compressed air than a conventional refrigerated dryer.
This makes the Pure-10 well suited for applications where moisture can affect equipment performance, product quality, paint finishes, or manufacturing processes.
Complete Filtration and Drying Package
The Pure-10 combines:
- Water separation
- Oil coalescing filtration
- Fine particulate filtration
- Twin-tower regenerative desiccant drying
into one compact wall-mounted air treatment system.
Continuous Regenerative Drying
The twin-tower design allows one tower to actively dry compressed air while the second tower regenerates.
Approximately every two minutes, the system automatically switches towers, allowing the molecular sieve desiccant to continuously restore its moisture-removal capacity.
120V or 220V Electrical Options
The Pure-10 can be ordered for either 120V or 220V electrical power , providing greater installation flexibility than the smaller Pure Series dryers.
Choice of Automatic Drain Systems
The Pure-10 is available with either standard automatic float drains or Tsunami Moisture Minder® pneumatic drains .
This allows the dryer configuration to be matched to the customer's preferred condensate management system.
Protects the Desiccant
Liquid water and compressor oil can quickly contaminate molecular sieve desiccant.
The Pure-10's integrated water separator and oil coalescing filter remove these contaminants before the compressed air enters the regenerative towers, helping maintain drying performance and extend desiccant service life.
Compact Wall-Mounted Design
Despite its 40 CFM capacity, the Pure-10 packages the pre-filters, controls, and twin regenerative towers into a compact wall-mounted design, eliminating the floor space required by many larger industrial desiccant dryers.
Best For
The Tsunami Pure-10 is an excellent choice for:
- Automotive painting and refinishing
- Collision and body shops
- Paint spray booths
- Professional coating applications
- CNC equipment
- Manufacturing equipment
- Pneumatic instrumentation
- Automation equipment
- Woodworking and finishing
- Moisture-sensitive pneumatic tools
- Commercial repair shops
- Industrial production equipment
- Point-of-use compressed air drying
- Approximately 10 HP compressor systems
- Applications requiring extremely low dew points
- Applications requiring 120V or 220V electrical compatibility
Available Configurations
| Part Number | Voltage | Drain Type | Maximum Air Flow |
|---|---|---|---|
| 21999-1010 | 120V | Float | 40 CFM |
| 21999-1010-220 | 220V | Float | 40 CFM |
| 21999-1010-MM | 120V | Moisture Minder® Pneumatic | 40 CFM |
| 21999-1010-MM-220 | 220V | Moisture Minder® Pneumatic | 40 CFM |
Technical Specifications
| Specification | Float Drain Models | Moisture Minder® Models |
| Series | Tsunami Pure-10 | Tsunami Pure-10 |
| Maximum Air Flow | 40 CFM | 40 CFM |
| Compressor Size | 10 HP | 10 HP |
| Dryer Type | Regenerative Desiccant | Regenerative Desiccant |
| Number of Towers | 2 | 2 |
| Available Power | 120V or 220V | 120V or 220V |
| Drain Type | Automatic Float | Moisture Minder® Pneumatic |
| Inlet Connection | 1/2" NPT | 1/2" NPT |
| Outlet Connection | 1" NPT | 1" NPT |
| Maximum Pressure | 175 PSI | 175 PSI |
| Maximum Inlet Temperature | 150°F | 150°F |
| Minimum Inlet Pressure | 80 PSI | 80 PSI |
| Minimum Dew Point | Down to -80°F | Down to -80°F |
| Regeneration Air Consumption | Approx. 2.2 CFM | Approx. 2.2 CFM |
| Cycle Time | Approx. 2 Minutes | Approx. 2 Minutes |
| Tower Drying Time | 120 Seconds | 120 Seconds |
| Towers Drying | 1 | 1 |
| Towers Regenerating | 1 | 1 |
| Weight | 60 lbs | 62 lbs |
| Dimensions (H × W × D) | 26" × 25" × 8" | 29" × 25" × 8" |
Integrated Two-Stage Pre-Filtration
Every Pure-10 includes Tsunami two-stage pre-filtration ahead of the regenerative dryer.
Stage 1 – Water Separator
- Removes liquid water
- Filters particulate down to 10 micron
- Automatic condensate drain
- Water Separator: PN 21999-0131
- Replacement Element: PN 21999-0227
Stage 2 – Oil Coalescing Filter
- Removes bulk oils and aerosols
- Filters fine particulate down to 0.01 micron
- Automatic condensate drain
- Oil Coalescing Filter: PN 21999-0131-Z-FD
- Replacement Element: PN 21999-0202
Proper pre-filtration is especially important with regenerative desiccant dryers because liquid water, compressor oil, and particulate contamination can contaminate molecular sieve desiccant and reduce dryer performance.
How the Tsunami Pure-10 Works
Compressed air first enters the integrated water separator , where liquid water and larger particulate contamination are removed.
The air then passes through the oil coalescing filter , which removes bulk compressor oil, aerosols, and fine particulate contamination before the compressed air reaches the regenerative dryer.
Inside the dryer, molecular sieve desiccant adsorbs water vapor that cannot be removed by conventional compressed air filtration.
The Pure-10 contains two regenerative desiccant towers :
- One tower actively removes water vapor from the compressed air.
- The second tower uses approximately 2.2 CFM of dry sweep air to regenerate its desiccant.
- Each tower dries for approximately 120 seconds .
- Approximately every two minutes, the control system switches air flow between the two towers.
- The regenerated tower begins drying while the previously active tower begins regeneration.
This automatic cycling provides a continuous supply of extremely dry compressed air without requiring manual desiccant regeneration during normal operation.
120V vs. 220V Pure-10
The Pure-10 is available for either 120V or 220V electrical power .
120V Models
- PN 21999-1010: Float drains
- PN 21999-1010-MM: Moisture Minder® pneumatic drains
The 120V configuration is convenient for installations where standard 120V electrical service is readily available.
220V Models
- PN 21999-1010-220: Float drains
- PN 21999-1010-MM-220: Moisture Minder® pneumatic drains
The 220V configurations provide the same compressed air drying capacity and performance but allow the dryer controls to operate from a 220V electrical supply.
Voltage selection does not change the 40 CFM rated drying capacity.
Float Drain vs. Moisture Minder® Pneumatic Drain
Float Drain Models
PN 21999-1010 – 120V
PN 21999-1010-220 – 220V
These configurations use automatic float-operated drains on the integrated pre-filtration system.
Condensate is automatically discharged as it accumulates within the filter bowls, providing a simple and economical automatic drainage solution.
Moisture Minder® Pneumatic Drain Models
PN 21999-1010-MM – 120V
PN 21999-1010-MM-220 – 220V
These configurations use Tsunami Moisture Minder® pneumatic drains for automatic condensate removal.
The Moisture Minder system provides pneumatic condensate drainage without relying on an electrical timer drain.
Important Sizing Information
The Pure-10 has a maximum rated capacity of 40 CFM and is designed for approximately 10 HP compressed air systems .
Tsunami's published flow rating is based on operating conditions of approximately:
- 100°F inlet air temperature
- 175 PSI inlet pressure
- 100 PSI outlet pressure
- 80 PSI minimum inlet pressure
Lower inlet pressure and higher inlet air temperatures can reduce dryer capacity and downstream air quality.
The Pure-10 also consumes approximately 2.2 CFM of compressed air during regeneration . This air consumption should be considered when calculating the total compressed air capacity required from the compressor.
For best performance, the dryer should ultimately be selected according to:
- Actual system CFM demand
- Operating pressure
- Inlet air temperature
- Available compressor capacity
- Required downstream dew point
Compressor horsepower should be considered a general sizing reference rather than the only sizing factor.
Why Choose the Tsunami Pure-10?
The Tsunami Pure-10 provides a practical regenerative drying solution for compressed air systems requiring up to 40 CFM of exceptionally dry air .
It combines two-stage pre-filtration, twin regenerative desiccant towers, automatic tower cycling, and automatic condensate drainage into a compact wall-mounted package.
The availability of both 120V and 220V power configurations , along with the choice between float and Moisture Minder® pneumatic drains , allows the Pure-10 to be configured for a wider variety of compressed air installations.
For approximately 10 HP compressor systems that require air significantly drier than a refrigerated dryer can provide, the Pure-10 offers a compact alternative to larger floor-mounted regenerative desiccant dryers.
Why Buy from Compressed Air Advisors Online?
Compressed Air Advisors Online specializes in compressed air equipment, filtration, and air treatment systems. Proper sizing is especially important with regenerative desiccant dryers because airflow, pressure, inlet temperature, regeneration-air consumption, and required dew point all affect dryer performance.
If you are unsure which Tsunami Pure-10 voltage or drain configuration is correct for your application, contact our compressed air specialists. We can help determine the appropriate dryer size, electrical configuration, and condensate drain option for your system.
Frequently Asked Questions
How much air can the Tsunami Pure-10 handle?
The Tsunami Pure-10 regenerative air dryer is rated for up to 40 CFM and is designed for approximately 10 HP compressed air systems .
What dew point can the Tsunami Pure-10 achieve?
Tsunami states that the Pure-10 can achieve dew points down to -80°F under proper operating conditions.
Is the Tsunami Pure-10 available in 120V and 220V?
Yes. The Pure-10 is available in both 120V and 220V configurations .
What are the 120V Pure-10 part numbers?
The 120V configurations are:
- PN 21999-1010: Float drains
- PN 21999-1010-MM: Moisture Minder® pneumatic drains
What are the 220V Pure-10 part numbers?
The 220V configurations are:
- PN 21999-1010-220: Float drains
- PN 21999-1010-MM-220: Moisture Minder® pneumatic drains
Does voltage affect the Pure-10's CFM capacity?
No. Both the 120V and 220V versions are rated for up to 40 CFM . The voltage applies to the dryer's electrical controls and does not change the published airflow rating.
What is the difference between float and Moisture Minder drains?
The standard Pure-10 uses automatic float-operated drains .
The MM versions use Tsunami Moisture Minder® pneumatic drains , which provide automatic pneumatic condensate removal without relying on an electrical timer drain.
Does the Pure-10 include pre-filtration?
Yes. The Pure-10 includes integrated two-stage pre-filtration consisting of a water separator followed by an oil coalescing filter.
Why does a regenerative desiccant dryer need pre-filtration?
Molecular sieve desiccant removes water vapor but should be protected from liquid water, compressor oil, and particulate contamination. The Pure-10's integrated filtration removes these contaminants before the air enters the desiccant towers.
How does the Pure-10 regenerate its desiccant?
The dryer contains two desiccant towers. One tower dries the compressed air while the second regenerates using dry sweep air.
Approximately every two minutes, the dryer automatically switches between the two towers.
How much regeneration air does the Pure-10 use?
The Pure-10 consumes approximately 2.2 CFM of compressed air during regeneration.
What size connections are on the Tsunami Pure-10?
The Pure-10 has a 1/2" NPT inlet and a 1" NPT outlet .
What is the maximum operating pressure?
The maximum operating pressure is 175 PSI .
What is the minimum inlet pressure?
Tsunami specifies a minimum inlet pressure of 80 PSI for its published Pure-10 performance ratings.
What is the maximum inlet temperature?
The maximum published inlet air temperature is 150°F .
Is the Pure-10 a refrigerated air dryer?
No. The Pure-10 is a twin-tower regenerative desiccant air dryer . It uses molecular sieve desiccant to remove water vapor and can achieve substantially lower dew points than a typical refrigerated compressed air dryer.
Should I size the Pure-10 based only on compressor horsepower?
No. The 10 HP designation provides a useful general reference, but the dryer should ultimately be sized according to actual CFM, operating pressure, inlet temperature, purge-air consumption, and required downstream dew point .
The Pure-10 is rated for 40 CFM and consumes approximately 2.2 CFM during regeneration .
Replacement & Service Parts
-
Water Separator: #21999-0390
-
Replacement Element: #21999-0846
-
Oil Coalescing Filter: #21999-0390-Z-FD
-
Replacement Element: #21999-0394
