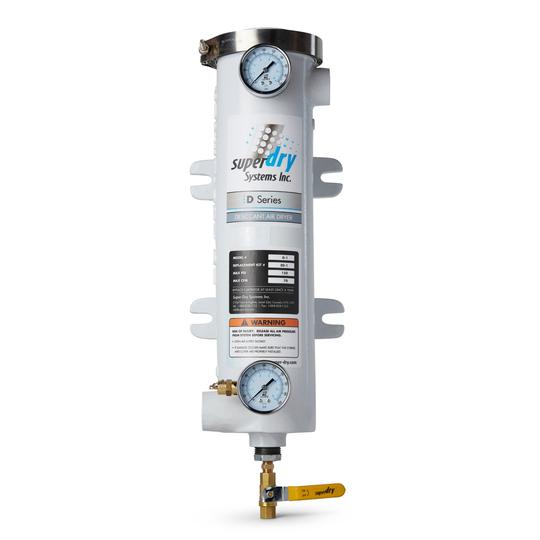

Super-Dry D-1 Desiccant Air Dryer – 1" NPT, 70 SCFM
Compact and Reliable Moisture Control for Point-of-Use Air Systems
When space is tight but performance is non-negotiable, the Super-Dry D-1 Desiccant Air Dryer delivers. Designed for light-duty or intermittent use, the D-1 is the perfect solution for single workstations, paint sprayers, plasma cutters, and air tools that need dry, clean compressed air without a bulky system. With 1" NPT ports and a flow capacity of 70 SCFM, this unit brings industrial-grade drying power to smaller setups.
🔧 Key Performance Specs:
-
Inlet/Outlet Ports: 1" NPT
-
Airflow Capacity: 70 SCFM @ 100 PSIG
-
Maximum Inlet Pressure: 150 PSI
-
Maximum Inlet Temperature: 100°F (38°C)
-
Unit Weight: 25 lbs
-
Box Dimensions: 21" x 9" x 7"
✅ Features & Benefits:
-
Triple-Stage Drying Technology: Combines centrifugal separation, filtration, and a high-efficiency desiccant cartridge to eliminate water, oil mist, and particles from your compressed air.
-
Pre-Filled Cartridge Included: Ships ready to install and operate—no handling loose desiccant beads or guessing.
-
Tool-Free Cartridge Replacement: Stainless steel V-band clamp ensures quick, mess-free service with no special tools required.
-
Durable Build: Powder-coated, rust-resistant aluminum housing made in Canada for long-lasting performance.
-
Plug-and-Play: Includes pressure gauges, safety valve, and ball valve already installed.
-
Wall Mounting Brackets Included
-
CRN Certified for compliant operation across Canada.
⚙️ Ideal For:
-
Paint spraying and detailing booths
-
Powder coating stations
-
Small CNC machines
-
Air tools and pneumatic systems
-
Mobile or temporary compressed air setups
💡 Why Choose the Super-Dry D-1?
The Super-Dry D-1 is a reliable, cost-effective solution when your operation depends on dry air but doesn’t require high-volume flow. It outperforms throwaway dryers and eliminates the mess and inefficiency of traditional systems. Backed by a 10-year warranty and engineered for a 25-year service life, the D-1 offers unmatched durability and convenience in its class.
📦 Now Available at Compressed Air Advisors Online — America’s Choice for Compressed Air Solutions.
