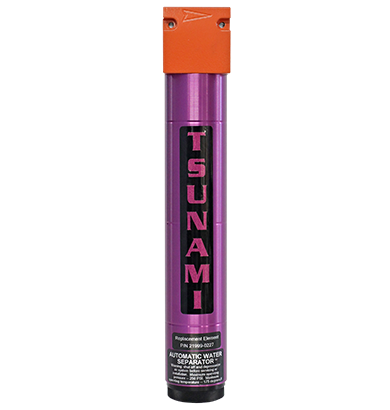

Tsunami 120 Series Compressed Air Filter
120 CFM | 3/4" NPTF | Modular Point-of-Use Air Filtration
The Tsunami 120 Series Filter – 120 CFM, 3/4" NPTF is a high-efficiency point-of-use compressed air filtration solution designed to remove moisture, oil aerosols, and vapor-phase contaminants from medium-to-high flow compressed air systems. Constructed from corrosion-resistant anodized 6061 aircraft-grade aluminum, this modular filtration platform allows users to select Water Separator, Oil Coalescing, or Activated Carbon filtration elements along with Float, Electronic, or Pneumatic drain options to match specific air quality requirements.
It delivers production-grade filtration performance in a compact footprint ideal for equipment drops where clean compressed air is essential for reliability and finish quality.
Commonly installed ahead of automation equipment, CNC machines, plasma cutters, paint prep stations, and packaging lines.
Available Filtration Options
Water Separator (10 Micron Filtration)
Removes bulk liquid condensate and larger particulate generated during compression. Recommended as the first stage of filtration even when an air dryer is installed downstream.
Oil Coalescing Filter (0.01 Micron Filtration)
Captures oil aerosols and fine particulate down to 0.01 micron, protecting valves, cylinders, instrumentation, and finishing processes from contamination.
Activated Carbon Filter (0.003 ppm Vapor Removal)
Removes hydrocarbon vapors, odor, and taste from compressed air streams. Ideal for sensitive applications requiring higher purity compressed air.
Available Drain Configurations
Float Drain (Standard Option)
Automatically discharges collected condensate without manual operation. Reliable and maintenance-friendly for most installations.
Electronic Drain (Moisture Minder® EDV)
Timer-controlled condensate removal improves efficiency while minimizing compressed air loss.
Pneumatic Drain (Moisture Minder® Filter Drain)
Air-operated drain solution ideal where electrical connections are not available or preferred.
Key Features
- Rated for 120 SCFM compressed air flow
- 3/4" NPTF connection size
- Modular filtration element selection
- Removes moisture, oil aerosols, and vapor contaminants
- Oversized internal tube improves contaminant separation efficiency
- Removable bottom cap simplifies servicing
- Machined drain port supports multiple drain styles
- Corrosion-resistant anodized housing
- Mounting bracket included
- Made in the USA
- Maximum pressure: 250 PSI
- Maximum temperature: 175°F
Typical Applications
- CNC machining centers
- Plasma cutting systems
- Robotics and automation equipment
- Paint preparation stations
- Packaging machinery
- Plant compressed air drops
- Instrument air protection
- Maintenance and production work cells
Why Choose the Tsunami 120 Series 3/4" Filter?
The 3/4" NPTF 120 Series Tsunami filter provides flexible filtration performance for mid-range distribution lines where consistent air quality is critical but full-system filtration upgrades are unnecessary. Its modular configuration allows precise matching of filtration performance to application requirements while maintaining installation simplicity.
Tsunami 120 Series compressed air filter 120 CFM 3/4" NPTF available as water separator, oil coalescing filter, or activated carbon filter with float, electronic, or pneumatic drain options.
