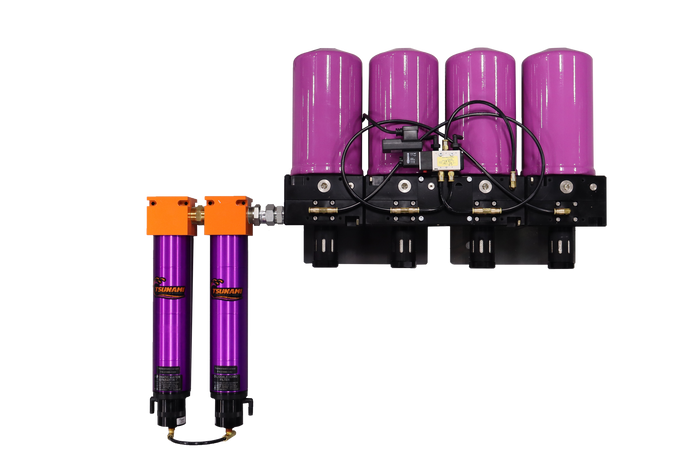

🛠️ Tsunami Pure-20P Regenerative Dryer System (PN 21999-1020)
80 CFM of Ultra-Dry, Cold-Weather-Ready Air at –40°F Dew Point
The Tsunami Pure-20P Regenerative Dryer System (21999-1020) is engineered for industrial operations that demand reliable moisture removal in both standard and freezing environments. Purpose-built for 20 HP air compressor systems and rated for 80 CFM, this dryer delivers clean, ultra-dry compressed air with a consistent –40°F pressure dew point, making it ideal for applications where moisture simply cannot be tolerated.
Refrigerated dryers lose efficiency and begin to pass moisture once temperatures drop. The Pure-20P thrives where refrigerated dryers fail. Using a dual-tower regenerative design, the system automatically cycles every two minutes to maintain a stable dew point, even when ambient conditions fluctuate or fall below freezing. For powder coating, CNC machining, automotive finishing, laboratory equipment, and precision industrial processes, the Pure-20P provides dependable moisture protection.
At Compressed Air Advisors Online, America’s choice for compressed air solutions, we proudly recommend the Pure-20P for customers who need reliable, cold-weather-capable drying without compromise. Each system typically ships in 7 days or less from Minneapolis, ensuring fast turnaround for your operation.
⭐ Key Features & Benefits
-
True –40°F Dew Point Performance — Ideal for sensitive applications and cold environments.
-
80 CFM Flow Capacity — Perfect for 20 HP compressed air systems.
-
Dual-Tower Regenerative Technology — Provides continuous drying and regeneration cycles every 2 minutes.
-
Multi-Stage Filtration — Includes a water separator and high-efficiency coalescing filter to remove particulates and oil aerosols before air enters the desiccant towers.
-
Automatic Float Drains — Reliable moisture removal without electronics or sensors.
-
Rugged, Industrial Build — Easy to service and designed for long-term durability.
-
Fast Shipping — Usually dispatches in 7 days or less from Minneapolis.
⭐ Technical Specifications
| Specification | Value |
|---|---|
| Model Number | 21999-1020 |
| Horsepower Rating | Up to 20 HP |
| Maximum Flow Capacity | 80 CFM |
| Dryer Type | Dual-Tower Regenerative Desiccant |
| Pressure Dew Point | –40°F |
| Particulate Removal | Down to 10 microns |
| Oil Aerosol Removal | 0.001 ppm |
| Filtration Stages | Water Separator + Coalescing Prefilter |
| CFM Purge Consumption | 4.4 CFM |
| Cycle Frequency | 2-minute cycle |
| Tower Drying Time | 120 sec |
| Towers Drying / Regenerating | 2 / 2 |
| Max Operating Pressure | 175 PSI |
| Max Inlet Temperature | 150°F |
| Orifice Size | 0.030" |
| Port Size | 1/4" NPT (Inlet/Outlet) |
| Shipping Lead Time | ~7 days or less from Minneapolis |
⭐ Ideal Applications
-
Powder coating
-
CNC machining
-
Automotive and collision refinishing
-
Robotics and automation
-
Woodworking / cabinet finishing
-
Plastics & injection molding
-
Electrostatic processes
-
Any operation requiring a –40°F dew point
