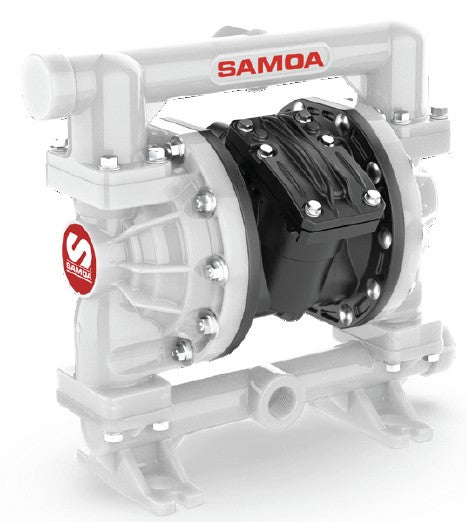

UP10 Polypropylene – 1” Ported Air Operated Diaphragm Pump
When corrosion resistance and higher flow capacity matter, the UP10 Polypropylene 1” Ported Diaphragm Pump delivers serious fluid transfer performance powered by compressed air.
With a 53 GPM (200 L/min) maximum free flow, this 1:1 ratio air-operated diaphragm pump is built for industrial, fleet, and chemical-compatible applications where durability and chemical resistance are critical.
Constructed with a polypropylene body and wetted components, along with Santoprene diaphragms, the UP10 Polypropylene model is ideal for handling compatible fluids such as antifreeze and windshield washer fluid in demanding environments.
Key Performance Specifications
-
Pump Ratio: 1:1
-
Maximum Flow Rate: 53 GPM (200 L/min)
-
Maximum Dry Suction Lift: 16 ft (5 m)
-
Maximum Wet Suction Lift: 26 ft (8 m)
-
Operating Air Pressure Range: 20 – 120 PSI
-
Maximum Solids Handling: 1/4” (6.4 mm)
-
Air Inlet: 1/2” NPT (F)
-
Fluid Outlet: 1” NPT (F)
-
Wetted Materials: Polypropylene / Santoprene
Technical specifications sourced from manufacturer data sheet
UP10 Brochure
.
Built for Performance & Longevity
The UP10 Polypropylene pump features:
-
Frictionless pivoting air valves for smooth cycling
-
Bolted cover design for secure sealing
-
Long-life diaphragms for extended service intervals
-
Conventional flow design combined with a fast-acting pivoting air valve for increased delivery and dependable performance
-
Lateral threaded ports on the polypropylene model for flexible installation
This design ensures consistent output and reliable performance in continuous-duty environments.
Common Applications
The UP10 Polypropylene is well suited for:
-
Industrial maintenance
-
Mining and construction
-
Railroad and mass transit
-
Agricultural operations
-
Automotive dealerships
-
Fleet maintenance facilities
-
Lube trucks
Fluids Commonly Handled (Polypropylene Model)
-
Antifreeze and antifreeze solutions
-
Windshield washer fluid
High-Volume, Corrosion-Resistant Fluid Transfer
If you need higher flow than a standard 1” diaphragm pump and the added benefit of polypropylene corrosion resistance, the UP10 Polypropylene delivers the airflow-powered performance professionals depend on.
