Description

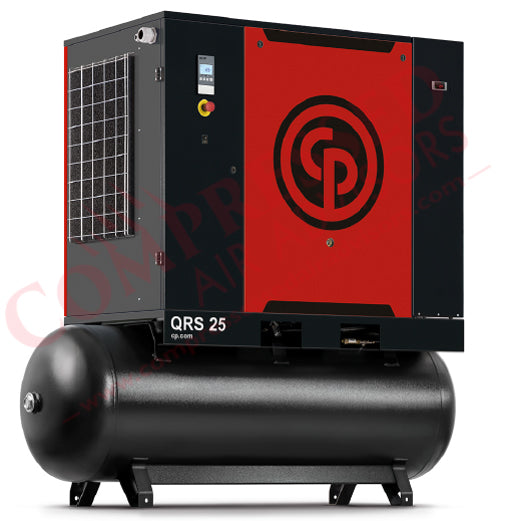

Chicago Pneumatic QRS 25 125 TM – 25 HP Rotary Screw Air Compressor with Dryer
Integrated Refrigerated Dryer | 120-Gallon Tank | 99.4 CFM @ 125 PSI
208/230/460V/3-Phase | Part Number: 4152027036
The Chicago Pneumatic QRS 25 125 TM is a powerful, fully integrated rotary screw air compressor designed for industrial operations requiring high-volume, clean, and reliable compressed air. Delivering 99.4 CFM at 125 PSI, this 25 HP system includes a factory-installed refrigerated dryer and a 120-gallon vertical ASME tank—creating a complete, space-saving compressed air solution engineered for continuous-duty performance.
Perfect for fabrication facilities, manufacturing plants, automotive shops, production lines, packaging operations, and any environment where large air demand and moisture control are mission-critical, the QRS 25 125 TM combines efficiency, quiet operation, and long-term durability.
Key Features & Benefits
Integrated Refrigerated Air Dryer
-
Provides clean, dry compressed air to protect sensitive downstream equipment.
-
Prevents moisture-related issues such as rust, scale, water contamination, and air line corrosion.
-
Factory-installed and pre-plumbed for simple setup.
High-Capacity Rotary Screw Performance
-
Produces 99.4 CFM @ 125 PSI, making it ideal for operations with high airflow demand.
-
100% duty cycle capable—engineered for continuous, around-the-clock operation.
-
Rotary screw technology delivers smoother, more efficient airflow than piston compressors.
120-Gallon Vertical ASME Tank
-
Enhances storage volume for large-cycle consumption.
-
Reduces load/unload cycling and improves overall system efficiency.
-
Compact tank-mounted design saves floor space.
Quiet, Shop-Floor Operation
ES4000 Basic Controller
-
Digital interface for tracking temperature, pressure, service intervals, and alarms.
-
Intelligent shutdown features protect the machine and minimize downtime.
-
Auto-restart ensures recovery after power interruption.
Multi-Voltage Compatibility
Built for Long-Term Industrial Reliability
-
Oil-injected screw air end precision-built for durability and long lifespan.
-
Easy-access service panels and spin-on filters simplify maintenance.
-
Eligible for 5-year extended warranty with authorized startup.
Technical Specifications
-
Model: QRS 25 125 TM
-
Horsepower: 25 HP
-
CFM: 99.4 @ 125 PSI
-
Max Pressure: 125 PSI
-
Tank Size: 120-Gallon ASME Vertical
-
Dryer: Integrated Refrigerated Air Dryer
-
Voltage: 208/230/460V/3Ph
-
Noise Level: Low-sound enclosure
-
Part Number: 4152027036
