Description

Screw compressors custom made in Germany by BOGE have for decades been synonymous with efficient and reliable compressed air supply from trade workshops to industrial companies.  The BOGE C series is a trendsetter in its class: less noise, less pipework, less connections in contrast to more output, more individual configuration possibilities, more efficiency and requiring a minimum of space. We have listened closely to the wishes of our customers – with the C series we provide the air to work.

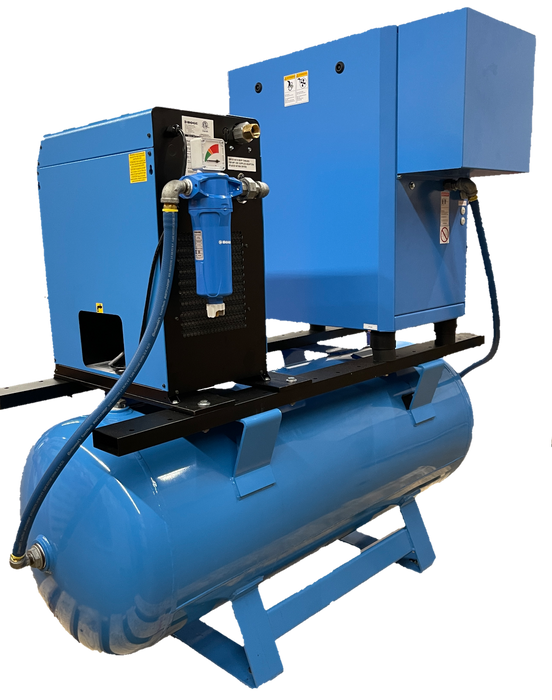

Compressed air stations – compact, efficient, very quiet: The space saving C series screw compressors are designed for long-term performance. A refrigerant dryer with prefilter mounted on a horizontal receiver is available as an option. Even at full load operation, the compressor operates reliably and safely at optimum efficiency providing a long service life.

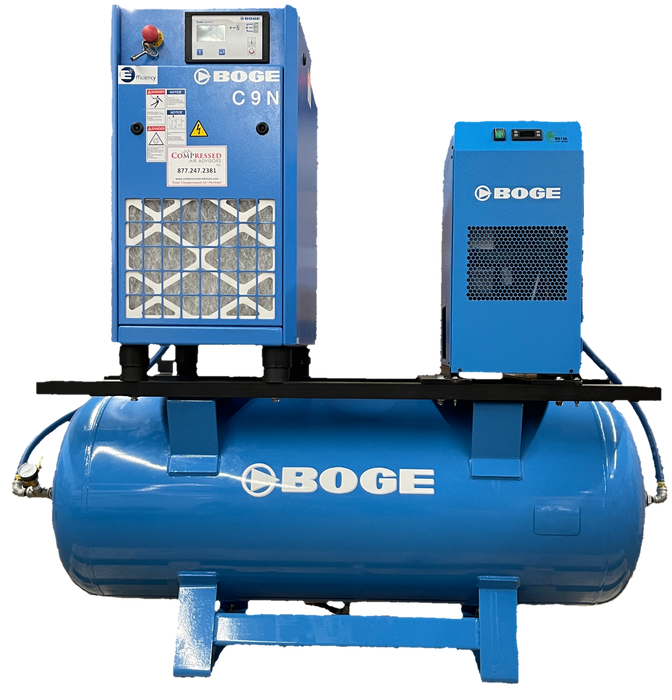

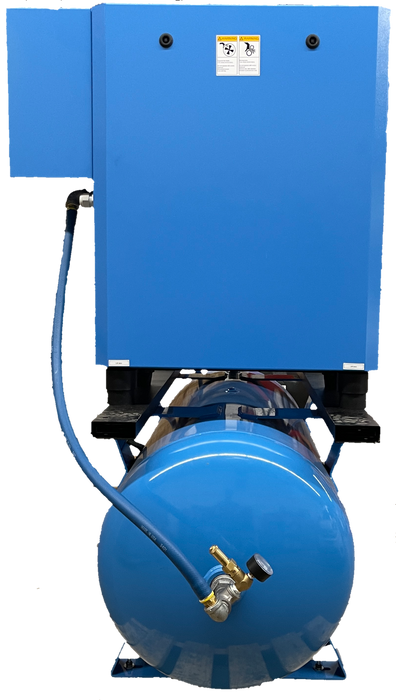

BOGE C 9 screw compressor, air-cooled - automatic operation.

• Ducted cooling air by means of sound insulation hood lined with dirt repellent material; integrated electrical control panel NEMA 12 (to IP 54)

• Electrical switch cabinet NEMA 12 (IP 54) with star-delta contactor and pressure sensor

• Motor protection IP 55 with PTC thermistors

• All components are integral but still easily accessible from the outside
• Patented BOGE GM drive system constant belt tension, maintenance free
• Compressor unit isolated from mechanical vibration

• Hermetically sealed BOGE suction regulator with integrated solenoid valve ensures no load starting and safe operation of all moving parts

• Minimal internal pressure loss due to the BOGE air end with optimized screw profile fitted directly into a compact module

• Constant low oil carry-over in all operating phases due to efficient pre-separation in the integral compressed air-oil separator

• Easy change oil separator cartridge and high efficiency oil filter via common access lid

• Valve-less oil circuit
• No condensate in the oil due to thermostatically controlled oil cooler
• Surface coating in light blue, RAL 5012

• Economical operating mode selection due to BOGE control, regulation and monitoring systems with microprocessor control and individual fault message displays

• Constant compression temperature and pressure display
• Anti-freeze protection for compressors in environments with ambient temperature below 36F

Technical Data:

     Effective free air delivery of complete unit

     measured according to PN2 CPT C2 and ISO 1217 Part C.................................... 37.. cfm

     at maximum overpressure...................................................................................... 150.. psi

     Rated power of drive motor...................................................................................... 10.. hp

     Protection type / Insulation class of the motor............................................... IP 55 / F..

     Operating voltage............................................................. 208,230,460,575 V / 60 Hz..

     Control voltage................................................................................................ 24 V DC..

     Cooling air flow volume (if connected to ducting)............................................. 1177.. cfm

     Suction or ambient temperature (min...max).............................................. +40...+113.. °C

     Residual oil content in compressed air............................................................ 1...3.. ppm

     Unit sound pressure level (in accordance with DIN/PN8NTC2.3)................... 79 db(A)

     Width / Depth / Height.......................................................................... 19 / 35.7 / 37.6.. in

     Compressed air connection (ball valve)........................................................... NPT ½.. in

     Weight..................................................................................................................... 474.. lbs
