Description

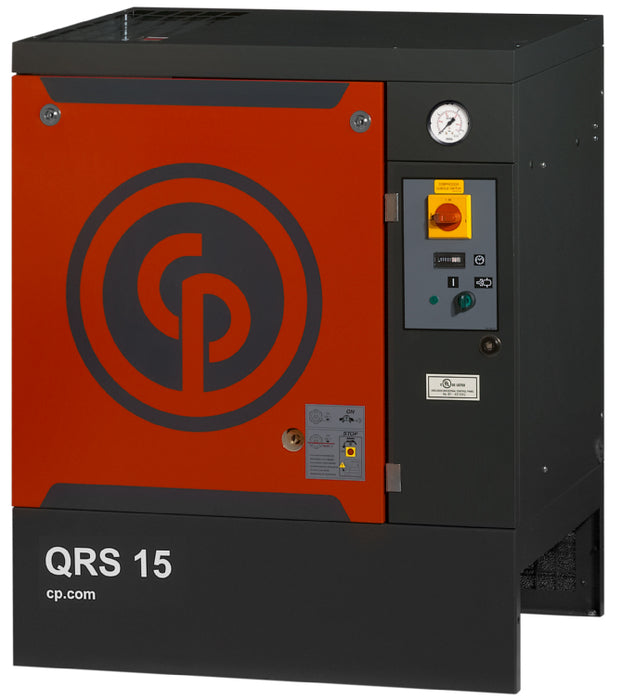

Rotary Screw Air Compressor
The Quiet Rotary Screw (QRS)
The QRS Series is a single stage, aircooled, oil injected rotary screw air compressor package. The compressor package includes the rotary screw air compressor element, main drive motor, air and oil system, filters, oil cooler, cooling fan and electro-pneumatic regulating control. The QRS 15-hp rotary screw air compressor is designed for continuous duty operation, at full compressor output without affecting the compressor life.
Engineered for high performance, efficiency and reliability, the Chicago Pneumatic line of QRS (Quiet Rotary Screw) air compressors can meet the compressed air demands of a tire shop, maintenance shop, Industrial manufacturing facility, vehicle body shop, paint shop or automotive dealership. With its whisper quiet design the QRS can be installed almost anywhere, and is offered with an optional mounted dryer (with tank mounted option only). The QRS 15-hp rotary screw air compressor is the leading rotary screw compressor for light industrial applications.
Standard Features:
- Low sound enclosure
- Continuous operating capability
- ASME/CRN receiver tank
- Start/stop operation
- UL, cUL and CSA approved control panel
- 5 year warranty with authorized start-up
- Spin-on oil filter and separator
- NEMA 1 electrical protection
- Vibration isolated assembly
Specifications:
- 54.9 ACFM @ 125 PSIG
- 69 dBa
Chicago Pneumatic QRS Series Overview:
The Chicago Pneumatic QRS Rotary Screw Air Compressor is a type of air compressor designed for industrial and commercial applications. It is a stationary, electrically powered compressor that uses a rotary screw to compress air. Here are some key features and specifications of the Chicago Pneumatic QRS Rotary Screw Air Compressor:
- Available in both 60 Hz and 50 Hz models with various voltages (e.g., 208-230V/460V/575V for 60 Hz)
- Horsepower range: 5-30 HP (horsepower)
- Capacity range: 15.2-124.3 CFM (cubic feet per minute)
- Maximum working pressure: 125-175 PSI (pounds per square inch)
- Air-cooled design with a built-in aftercooler to remove moisture from the compressed air
- Sound levels ranging from 64 to 71 dBA (decibels)
- Comes with an advanced control system (Q-Controller) that allows for easy monitoring, diagnostics, and adjustment of compressor settings
- Designed with a compact footprint and a small installation footprint to save space in your facility
The Chicago Pneumatic QRS Rotary Screw Air Compressor is a reliable and energy-efficient compressor that can help improve the productivity and efficiency of your operations. It is suitable for a wide range of applications, including automotive, manufacturing, woodworking, and more.
