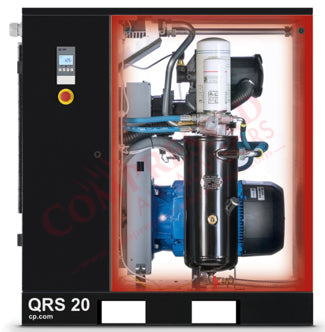

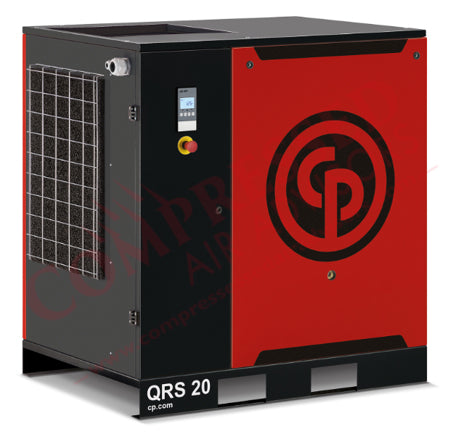

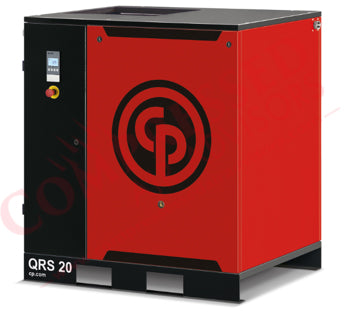

Chicago Pneumatic QRS 20 125 BM - 20hp Rotary Screw Air Compressor, Base Mounted, 82.2 CFM @ 125 PSIG, 208/230/460V/3Ph

Original price $19,531.00
Original price $19,531.00 - Original price $19,531.00
Original price $19,531.00
Current price $15,624.92
$15,624.92 - $15,624.92
Current price $15,624.92
Save $3,906.08 Save $3,906.08
SKU 4152026996

Lead Time:

Generally Ships in 1-3 Days


On All Orders Over $149.00

Satisfaction Guaranteed

Easy Exchanges & Returns

Secure checkout

Protected By SSL


The QRS 20 is a rugged, rotary screw air compressor that combines proven design with superior performance. Ideal for automotive and industrial applications, the QRS is engineered and built to support the most demanding requirements. Every QRS 20-30 can be supplied either base mounted or tank mounted on a 132 gallon receiver tank, and with or without an integrated air dryer. This option can save vital floor space and provide a continuous supply of quality compressed air. Installation into every application is quick and easy - simply supply power to the electrical panel, connect your discharge piping and you’ll have instant access to high quality compressed air.

Standard Features:

  • Low sound enclosure
  • Wye-Delta, reduced voltage start
  • ES4000 Basic Controller
  • Continuous operating capability
  • 3-phase, 208-230/460V
  • Space saving design, <16 sq. ft.
  • Load/no-load with intelligent shutdown
  • Spin-on oil filter and separator
  • NEMA 1 electrical protection
  • Vibration isolated assembly • UL and cUL approved control panel
  • Permanently aligned belt drive system

Chicago Pneumatic QRS Series Overview:

The Chicago Pneumatic QRS Rotary Screw Air Compressor is a type of air compressor designed for industrial and commercial applications. It is a stationary, electrically powered compressor that uses a rotary screw to compress air. Here are some key features and specifications of the Chicago Pneumatic QRS Rotary Screw Air Compressor:

  • Available in both 60 Hz and 50 Hz models with various voltages (e.g., 208-230V/460V/575V for 60 Hz)
  • Horsepower range: 5-30 HP (horsepower)
  • Capacity range: 15.2-124.3 CFM (cubic feet per minute)
  • Maximum working pressure: 125-175 PSI (pounds per square inch)
  • Air-cooled design with a built-in aftercooler to remove moisture from the compressed air
  • Sound levels ranging from 64 to 71 dBA (decibels)
  • Comes with an advanced control system (Q-Controller) that allows for easy monitoring, diagnostics, and adjustment of compressor settings
  • Designed with a compact footprint and a small installation footprint to save space in your facility

The Chicago Pneumatic QRS Rotary Screw Air Compressor is a reliable and energy-efficient compressor that can help improve the productivity and efficiency of your operations. It is suitable for a wide range of applications, including automotive, manufacturing, woodworking, and more.
