Description

Time Proven Design

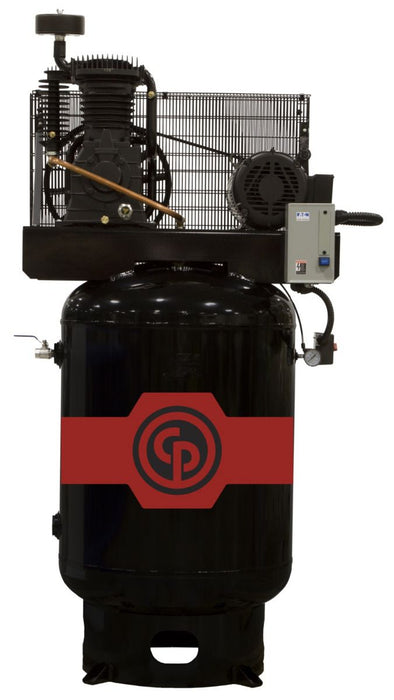

RCP Series Compressors - Exceptional Strength

With durability, performance, solid cast iron cylinder, crankshaft and valve plates the RCP provides the strength that is required for everyday use. Aluminum head and coolers with deep fins allow for unmatched heat dissipation. Balanced pistons and crankshaft mean smoother and quieter operation. Oversized main bearings and automotive style replaceable insert bearings for a durable compressor pump. All units are 100% tested at full pressure.

Standard Features:
• Start/stop pressure switch control
• ASME tank and safety valves
• Fully enclosed belt guard
• Magnetic starter
• Manual tank drain
• Discharge valve
This Premium models include all standard features plus:
• Low oil level switch
• Auto tank drain
• Triple-pass pump mounted aftercooler

Specs:

• Model Number: 8090300842

• Voltage: 208-230V/3Ph

• Tank: 120 Gallon Vertical

• Horsepower: 10

• Max PSI: 175

• CFM: 35

• Dimensions: 42L x 30W x 74H

• Weight 900 lbs
