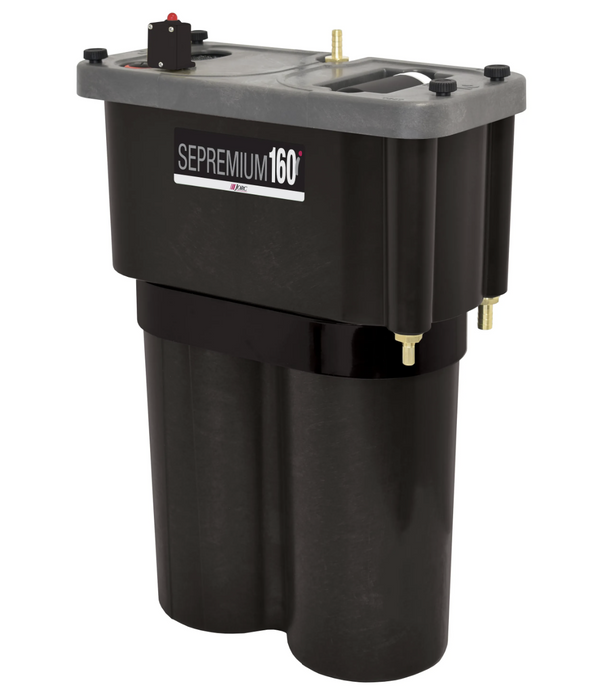

JORC SEPREMIUM 160i Serviceable Oil/Water Separator | 160 CFM | Automatic Service Indicator

The JORC SEPREMIUM 160i Serviceable Oil/Water Separator is an advanced condensate treatment solution designed for compressed air systems with capacities up to 160 CFM. Engineered to efficiently separate compressor oil from collected condensate, the SEPREMIUM 160i helps industrial and commercial facilities manage oily condensate while supporting compliance with applicable wastewater discharge requirements.

Featuring JORC's advanced green filtration element technology, the SEPREMIUM 160i utilizes a multi-stage filtration process to capture oil contamination, followed by an activated carbon polishing stage. When properly sized and maintained, the separator is designed to achieve a residual oil content of less than 5 ppm under specified operating conditions.

The SEPREMIUM 160i also features an automatic flashing service indicator that alerts operators when maintenance is required or a potential overflow condition is detected. An optional JORC sensor allows integration with a compatible facility monitoring system, providing additional visibility for maintenance personnel.

Available in three filtration configurations (KA, JN, and PG), the SEPREMIUM 160i can be selected to match different compressor lubricants and condensate characteristics. Its serviceable filtration elements, included wall-mounting bracket, and housing manufactured from up to 100% recycled plastic make it a dependable, environmentally responsible condensate management solution.

Key Features & Benefits

• 160 CFM Maximum Compressor Capacity: Designed for compressed air systems with a maximum combined capacity of 160 CFM.

• Advanced Multi-Stage Oil Separation: JORC green filtration technology and activated carbon help remove oil contamination from compressed air condensate.

• Automatic Flashing Service Indicator: Provides visual alerts when maintenance is required or a potential overflow condition is detected.

• Optional Remote Monitoring: An optional JORC sensor allows integration with compatible facility monitoring equipment.

• Three Filtration Configurations: KA, JN, and PG versions are available to accommodate different condensate and lubricant requirements.

• Low Residual Oil Content: Designed to achieve less than 5 ppm residual oil content under specified operating conditions.

• Serviceable Filtration System: Replaceable filtration elements help reduce long-term operating costs compared with replacing the entire separator.

• Compatible with Multiple Drain Types: Suitable for timer-controlled, solenoid-operated, and zero-air-loss condensate drains.

• Wall-Mountable Design: Includes a sturdy mounting bracket for secure installation.

• Integrated Service Valves: Allow individual sections to be drained during maintenance and cleaning.

• Brass Hose Connectors: Provide convenient, secure inlet and outlet connections.

• Condensate Testing Accessories: Includes a test valve, sample bottle, and test kit for monitoring treated water quality.

• Environmentally Responsible Construction: Housing and lids manufactured from up to 100% recycled plastic.

• DIBt Certified: Certified design for condensate treatment applications.

Technical Specifications

Choosing the Correct SEPREMIUM 160i Lubricant Configuration

The JORC SEPREMIUM 160i is available in three filtration configurations designed for different compressor lubricants and condensate characteristics. Selecting the correct version is essential for effective oil/water separation, proper filtration performance, and long-term reliability.

Not all compressor oils behave the same way when mixed with water. Some separate readily, while others form stable emulsions that require specially selected filtration media.

Available Models & Lubricant Compatibility

KA – Mineral & Synthetic Compressor Oils (9804 JC)

The KA configuration is intended for conventional mineral-based compressor oils and compatible synthetic lubricants commonly used in industrial air compressors.

This version is suited to many oil-lubricated reciprocating and rotary screw compressor installations that produce condensate containing conventional compressor lubricants.

JN – Neutral Filtration Configuration (9804 JN)

The JN configuration features JORC's neutral filtration arrangement for applications requiring this particular separator version.

Because lubricant chemistry and condensate composition can vary, the correct application of the JN version should be confirmed with JORC or Compressed Air Advisors before ordering. The JN designation should not be treated as universal compatibility with all compressor oils.

PG – Polyglycol & Stable Emulsion Applications (9804 JB)

The PG configuration is intended for polyglycol-based compressor lubricants and compatible stable oil/water emulsions.

These lubricants can form persistent emulsions that are more difficult to separate using conventional oil/water filtration media. The PG configuration uses application-specific filtration media intended for these condensate characteristics.

Not Sure Which Version You Need?

Selecting the correct SEPREMIUM 160i depends primarily on the compressor lubricant formulation and condensate characteristics, not simply the compressor horsepower or CFM capacity.

If you are unsure which configuration is appropriate, provide our team with:

• Your air compressor manufacturer and model

• The lubricant manufacturer and product name

• The total compressor capacity in CFM

• Any known condensate treatment or discharge requirements

Contact Compressed Air Advisors at 877-247-2381 for assistance identifying the appropriate separator configuration before placing your order.

Common Applications

The JORC SEPREMIUM 160i is designed for industrial and commercial compressed air installations requiring effective condensate treatment, convenient maintenance, and automatic service indication.

Typical applications include:

• Automotive repair shops and service facilities

• Machine shops and metal fabrication operations

• Small and medium-sized manufacturing plants

• Industrial maintenance departments

• Compressor rooms with multiple condensate collection points

• Commercial workshops and production facilities

• Facilities requiring visible condensate separator maintenance alerts

Installation & Maintenance

The SEPREMIUM 160i is designed for convenient integration into compressed air condensate management systems. The included mounting bracket supports wall installation, while brass hose connectors and supplied adapters simplify connections to condensate collection lines.

Condensate collected from air compressors, receiver tanks, refrigerated air dryers, and compressed air filters can be directed into the separator. Its multi-stage filtration system captures oil contamination before treated water exits through the outlet connection.

Automatic Service Monitoring

The built-in flashing service indicator alerts maintenance personnel when separator servicing may be necessary or when a potential overflow condition is detected.

An optional JORC monitoring sensor is also available for facilities requiring an external equipment status signal. Compatibility with the facility's monitoring system should be confirmed before ordering the sensor.

Filter Replacement & Routine Maintenance

The SEPREMIUM 160i features replaceable filtration elements, allowing maintenance personnel to service the separator without replacing the entire housing.

Integrated service valves allow individual sections to be drained during routine maintenance and cleaning. The included test valve, sample bottle, and test kit provide a convenient way to monitor treated condensate quality.

Replacement Service Kits

Always select the replacement service kit that matches the filtration configuration of your installed separator.

Important: Proper sizing depends on combined compressor capacity, lubricant type, operating conditions, and condensate production. Treated condensate must meet applicable local wastewater discharge regulations before disposal.

Frequently Asked Questions

1. What size air compressor system can the JORC SEPREMIUM 160i handle?

The JORC SEPREMIUM 160i is designed for compressed air systems with a maximum combined compressor capacity of 160 CFM. If multiple air compressors discharge condensate into the same separator, their combined capacities must be considered when sizing the equipment. Condensate volume, lubricant type, and operating conditions should also be evaluated.

2. What is the difference between the KA, JN, and PG versions of the JORC SEPREMIUM 160i?

The KA version (9804 JC) is intended for conventional mineral and compatible synthetic compressor oils, while the PG version (9804 JB) is designed for polyglycol-based lubricants and compatible stable emulsions. The JN version (9804 JN) uses JORC's neutral filtration configuration, for which specific lubricant compatibility should be confirmed before ordering. Choosing the correct configuration helps ensure effective condensate treatment and proper filtration performance.

3. What does the flashing service indicator on the JORC SEPREMIUM 160i mean?

The SEPREMIUM 160i features an automatic visual indicator that alerts operators to maintenance requirements or potential overflow conditions. A flashing indicator means the separator should be inspected and serviced according to JORC's instructions. This helps maintenance personnel identify potential problems before separator performance is compromised.

4. How often should the filter elements in the SEPREMIUM 160i be replaced?

Filter replacement intervals depend on compressor operating hours, condensate volume, oil carryover, and lubricant chemistry. The SEPREMIUM 160i uses replaceable filtration elements and includes an automatic service indicator to help identify maintenance needs. Always use the appropriate KA, JN, or PG replacement kit for your separator configuration.

5. How does the JORC SEPREMIUM 160i compare with the SEPREMIUM 70i?

The SEPREMIUM 160i handles compressed air installations up to 160 CFM, compared with 70 CFM for the SEPREMIUM 70i. The 160i also features an automatic flashing service indicator and an optional monitoring sensor for additional maintenance visibility. Both models feature serviceable filtration systems, making compressor capacity and monitoring requirements important selection factors.

6. Can the JORC SEPREMIUM 160i connect to a building monitoring system?

Yes, an optional JORC sensor is available to provide separator status information to compatible monitoring equipment. This allows maintenance personnel to monitor separator conditions beyond the built-in visual indicator. Sensor compatibility and connection requirements should be verified with JORC before installation.

7. How effectively does the JORC SEPREMIUM 160i remove oil from compressor condensate?

The SEPREMIUM 160i uses multi-stage filtration with specialized oil-adsorbing media and activated carbon to treat compressor condensate. When correctly sized and maintained, it is designed to achieve a residual oil content of less than 5 ppm under specified operating conditions. Actual performance depends on lubricant chemistry, condensate characteristics, and filtration condition.

8. Can the SEPREMIUM 160i be used with zero-air-loss and timer-controlled condensate drains?

Yes, the SEPREMIUM 160i is compatible with multiple condensate drain types, including zero-air-loss, timer-controlled, and solenoid-operated designs. Condensate collected from compressors, air receivers, dryers, and filters can be directed into the separator using suitable condensate collection piping. This flexibility makes the unit suitable for both new compressed air systems and existing installation upgrades.

Why Buy from Compressed Air Advisors?

At Compressed Air Advisors Online, we specialize in industrial compressed air equipment and condensate management solutions. Our knowledgeable team can help you select the correct JORC oil/water separator based on your compressor capacity, lubricant type, and application requirements.

• Expert Technical Support: Professional assistance with separator sizing, lubricant compatibility, and application requirements.

• Competitive Pricing: Excellent value on JORC oil/water separators, service kits, and condensate management equipment.

• Free Shipping: Free freight to the contiguous 48 United States.

• Complete Compressed Air Solutions: Air compressors, air dryers, condensate drains, filtration equipment, oil/water separators, and maintenance products.

Order Your JORC SEPREMIUM 160i Today

The JORC SEPREMIUM 160i Serviceable Oil/Water Separator combines advanced oil separation, automatic service monitoring, and convenient maintenance in a compact, environmentally responsible design. With three filtration configurations available, it provides a flexible condensate treatment solution for compressed air installations up to 160 CFM.

Select the appropriate KA, JN, or PG configuration when ordering, or contact Compressed Air Advisors for expert assistance with lubricant compatibility and separator sizing.
