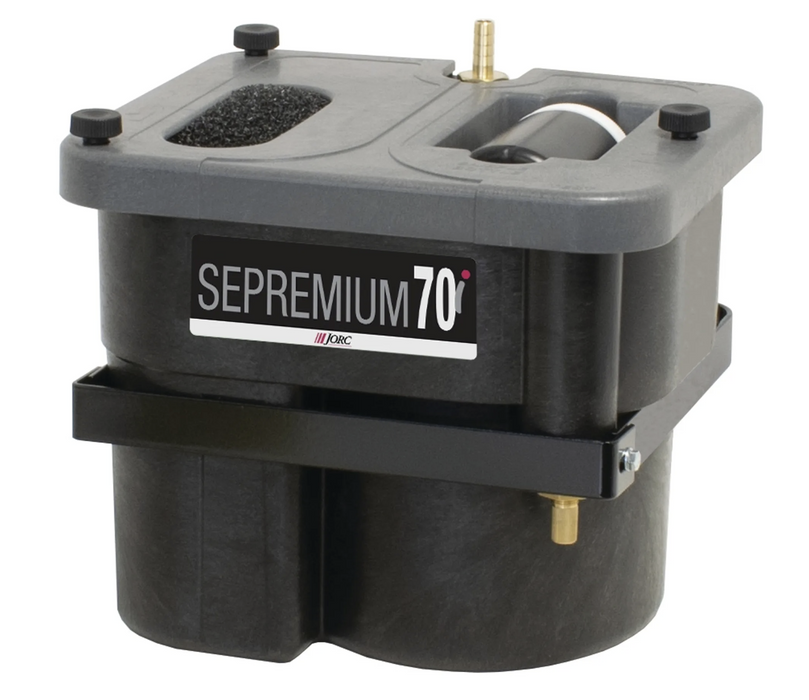

JORC SEPREMIUM 70i Serviceable Oil/Water Separator | 70 CFM
The JORC SEPREMIUM 70i Serviceable Oil/Water Separator is a compact, environmentally responsible condensate treatment solution designed for compressed air systems with capacities up to 70 CFM. Engineered to separate compressor oil from condensed water, the SEPREMIUM 70i helps facilities manage oily condensate and meet applicable wastewater discharge requirements.
Ideal for automotive repair shops, machine shops, small manufacturing facilities, and standalone compressor stations, the SEPREMIUM 70i features JORC green element filtration technology for effective condensate treatment. Its serviceable construction allows filter elements to be replaced without purchasing an entirely new separator, reducing long-term maintenance costs.
With housing and lids manufactured from up to 100% recycled plastic, compact dimensions, and convenient condensate testing capabilities, the SEPREMIUM 70i delivers dependable performance for smaller industrial compressed air installations.
Key Features & Benefits
-
70 CFM Maximum Compressor Capacity: Designed for compressed air systems with a combined compressor capacity up to 70 CFM.
-
Efficient Oil/Water Separation: Treats condensate containing compatible mineral and synthetic compressor lubricants.
-
Serviceable Filtration Design: Replaceable filter elements help reduce maintenance costs and equipment waste.
-
Advanced JORC Filtration Technology: Multi-stage filtration incorporates activated carbon for effective oil removal.
-
Low Residual Oil Content: Designed to achieve less than 5 ppm residual oil content under specified operating conditions.
-
Environmentally Responsible Construction: Housing and lids made from up to 100% recycled plastic.
-
Condensate Drain Compatibility: Suitable for use with JORC timer-controlled and zero-air-loss condensate drains.
-
Convenient Condensate Testing: Includes a test valve, sample bottle, and test kit to help monitor separator performance.
-
Easy Installation: Supplied with inlet and outlet hose adapters for convenient system integration.
-
Compact Footprint: Ideal for smaller compressor rooms and space-restricted installations.
-
DIBt Certification: Certified design for condensate treatment applications.
Technical Specifications
| Specification |
Details |
| Manufacturer |
JORC |
| Model |
SEPREMIUM 70i |
| Product Type |
Serviceable Oil/Water Separator |
| Maximum Compressor Capacity |
70 CFM |
| Maximum Oil Absorption Volume |
0.52 Gallon |
| Filter Elements |
1 |
| Activated Carbon Elements |
1 |
| Inlet Connection |
½" (10 mm Hose Adapter) |
| Outlet Connection |
½" (14 mm Hose Adapter) |
| Residual Oil Content |
Less Than 5 ppm under specified conditions |
| Housing Material |
PPC |
| Housing Color |
Black |
| Lid Color |
Grey |
| Test Valve & Sample Bottle |
Included |
| Test Kit |
Included |
| Inlet/Outlet Hose Adapters |
Included |
| DIBt Certification |
Yes |
| Suitable for Mineral Oils |
Yes |
| Suitable for Synthetic Oils |
Yes |
| Stable Emulsions / Polyglycol |
Special Configuration Available Upon Request |
| Space Requirements |
9.5" × 10.7" × 9.8" |
Common Applications
The JORC SEPREMIUM 70i provides a practical solution for smaller compressed air installations requiring reliable condensate management.
-
Automotive repair shops and service garages
-
Machine shops and fabrication workshops
-
Small industrial manufacturing facilities
-
Maintenance departments
-
Standalone compressor stations
-
Light commercial compressed air systems
Installation & Maintenance
The SEPREMIUM 70i can be integrated into a compressed air condensate management system to treat oily condensate collected from air compressors, receiver tanks, refrigerated air dryers, and compressed air filters.
Condensate from compatible drain valves is directed into the separator, where filtration elements capture oil contamination and allow treated water to exit through the outlet connection.
The serviceable design permits replacement of saturated filtration elements without replacing the complete separator assembly. The included test valve, sample bottle, and testing kit help operators monitor treated condensate quality.
Important: Proper sizing depends on total compressor capacity, lubricant type, condensate volume, and operating conditions. Applications involving stable emulsions or polyglycol lubricants may require a specialized configuration. Always verify that treated condensate meets applicable local discharge regulations before disposal.
Frequently Asked Questions
1. What size air compressor can the JORC SEPREMIUM 70i oil/water separator handle?
The JORC SEPREMIUM 70i is designed for compressed air installations with a maximum combined compressor capacity of 70 CFM. When sizing the separator, consider all compressors connected to the same condensate collection system rather than only the largest individual compressor. Contact Compressed Air Advisors if your application is approaching the separator's maximum rated capacity.
2. Can the SEPREMIUM 70i be used with synthetic compressor oil?
Yes, the SEPREMIUM 70i is designed to treat condensate containing compatible mineral and synthetic compressor lubricants. However, certain synthetic lubricants, particularly polyglycol formulations, may require a specialized filtration configuration. Confirm your compressor lubricant type before selecting the appropriate SEPREMIUM 70i model.
3. How often do the filter elements need to be replaced in the JORC SEPREMIUM 70i?
Filter replacement intervals depend on condensate volume, compressor operating hours, lubricant carryover, and environmental conditions. The SEPREMIUM 70i features replaceable elements, allowing the filtration media to be serviced without replacing the separator housing. Regularly monitor treated condensate using the supplied testing accessories and follow JORC maintenance instructions to determine when replacement is necessary.
4. What is the difference between the JORC SEPREMIUM 70i and a non-serviceable oil/water separator?
The primary advantage of the serviceable SEPREMIUM 70i is its replaceable filtration elements, which allow the housing to remain in service through multiple maintenance cycles. A non-serviceable separator typically requires replacement of the complete assembly when its filtration media is exhausted. The serviceable design can help reduce replacement waste and long-term operating costs.
5. How effectively does the JORC SEPREMIUM 70i remove oil from compressor condensate?
The SEPREMIUM 70i uses multi-stage filtration, including activated carbon, to separate oil contamination from compressed air condensate. It is designed to achieve a residual oil content below 5 ppm under specified conditions when properly sized and maintained. Actual discharge quality depends on lubricant chemistry, condensate characteristics, and filtration condition.
6. Can the SEPREMIUM 70i be installed with an automatic condensate drain?
Yes, the JORC SEPREMIUM 70i is compatible with JORC timer-controlled and zero-air-loss condensate drains. Condensate collected from compressors, air receivers, dryers, and filters can be routed to the separator through the appropriate connections. The separator should be installed according to JORC instructions, with proper routing of the treated-water outlet.
7. Is the JORC SEPREMIUM 70i suitable for an automotive repair shop?
Yes, the SEPREMIUM 70i is well suited for smaller automotive service facilities using compressed air for tire inflation, pneumatic tools, and general shop operations. Its compact design and 70 CFM maximum capacity make it a practical option when the shop's combined compressor capacity and condensate load are within the unit's operating limits. Its replaceable filter elements also simplify ongoing maintenance.
8. Does the JORC SEPREMIUM 70i allow condensate to be discharged directly into a drain?
The SEPREMIUM 70i treats oily compressor condensate to help reduce oil contamination before disposal, with a specified residual oil content below 5 ppm under appropriate operating conditions. However, installation of an oil/water separator does not automatically authorize discharge into a sanitary sewer or floor drain. Always verify local wastewater requirements and test treated condensate as necessary before disposal.
Why Buy from Compressed Air Advisors?
At Compressed Air Advisors Online, we specialize in industrial compressed air equipment and condensate management solutions. Our experienced team can help you select the proper JORC oil/water separator based on your compressor capacity, lubricant type, and operating conditions.
-
Expert Technical Support: Professional assistance with product selection, sizing, and application requirements.
-
Competitive Pricing: Excellent value on JORC condensate management equipment and replacement elements.
-
Free Shipping: Free freight to the contiguous 48 United States.
-
Complete Compressed Air Solutions: Air compressors, air dryers, filtration equipment, condensate drains, oil/water separators, and maintenance products.
Order Your JORC SEPREMIUM 70i Today
The JORC SEPREMIUM 70i Serviceable Oil/Water Separator offers a compact, efficient, and economical solution for managing oily condensate from smaller compressed air systems. Its serviceable filtration system, effective oil separation, and environmentally responsible construction make it an excellent choice for long-term condensate management.
Order online today or contact Compressed Air Advisors for assistance with sizing, compatibility, or a custom quote.
