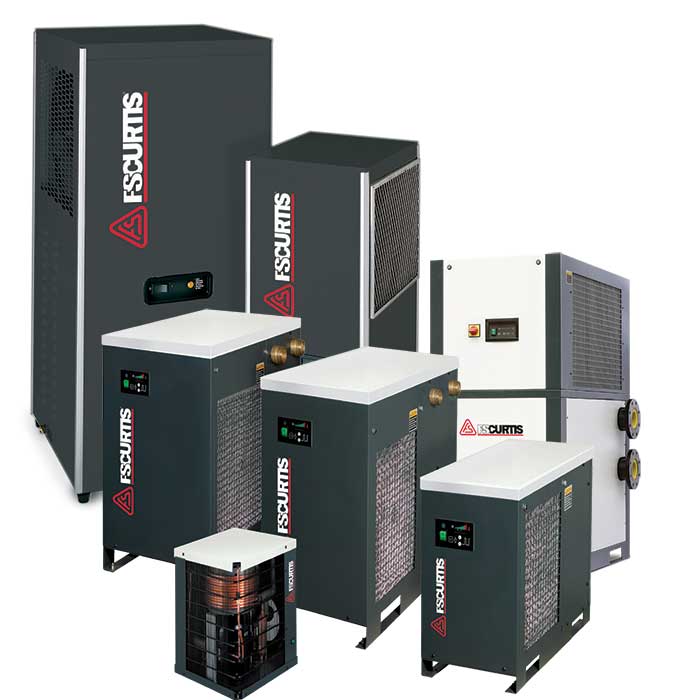

FS-Curtis RNP 100 Non-Cycling Refrigerated Air Dryer

100 SCFM | ISO Class 4–5 Clean, Dry Compressed Air

The FS-Curtis RNP 100 Non-Cycling Refrigerated Air Dryer is a dependable, industrial-grade solution for removing moisture from compressed air systems up to 100 SCFM. Designed for facilities that value reliability, simplicity, and long service life, the RNP 100 delivers consistent performance without the complexity or cost of cycling dryer technology.

Built around a non-cycling refrigeration system, the RNP 100 provides steady moisture removal and maintains a pressure dew point that meets ISO 8573.1 Class 4 to Class 5 air quality standards. This makes it an excellent fit for machine shops, manufacturing plants, automotive facilities, woodworking operations, and general industrial applications where dry, clean air protects equipment and reduces downtime.

The RNP 100 utilizes a stainless-steel brazed plate heat exchanger, offering excellent thermal efficiency, durability, and corrosion resistance. An at-a-glance digital control panel provides real-time dew point indication, allowing operators to quickly verify dryer performance without guesswork.

Condensate is handled by a timed electric condensate drain, ensuring effective moisture removal while minimizing compressed air loss. The dryer operates using CFC-free R134a refrigerant, making it environmentally responsible while maintaining efficient cooling performance.

With its compact footprint, rugged construction, and proven FS-Curtis design, the RNP 100 is built to run day after day in demanding environments with minimal maintenance.

FS-Curtis RNP 100 Key Specifications

• Dryer Type: Non-Cycling Refrigerated

• Rated Flow Capacity: 100 SCFM

• Air Quality: ISO 8573.1 Class 4–5

• Heat Exchanger: Stainless-Steel Brazed Plate

• Refrigerant: R134a (CFC-Free)

• Condensate Drain: Timed Electric

• Power Supply: 115V / 1 Phase / 60 Hz

• Inlet / Outlet: 1" NPT

• Dimensions (L × W × H): 30" × 13" × 21"

• Weight: 123 lbs

• Rated Conditions: 100 psig inlet, 100°F saturated inlet air, 100°F ambient

Typical Applications

• CNC and machine shops

• Automotive and fleet maintenance facilities

• Manufacturing and fabrication plants

• Woodworking and cabinet shops

• Packaging and assembly operations

Why Buy the RNP 100 from Compressed Air Advisors Online?

When you purchase the FS-Curtis RNP 100 from Compressed Air Advisors Online, you’re working with America’s choice for compressed air solutions. Our nationwide team helps ensure proper sizing, application fit, and fast delivery, so your compressed air system performs reliably from day one.

Open The FS Curtis RNP Series Dryer Brochure
