Description

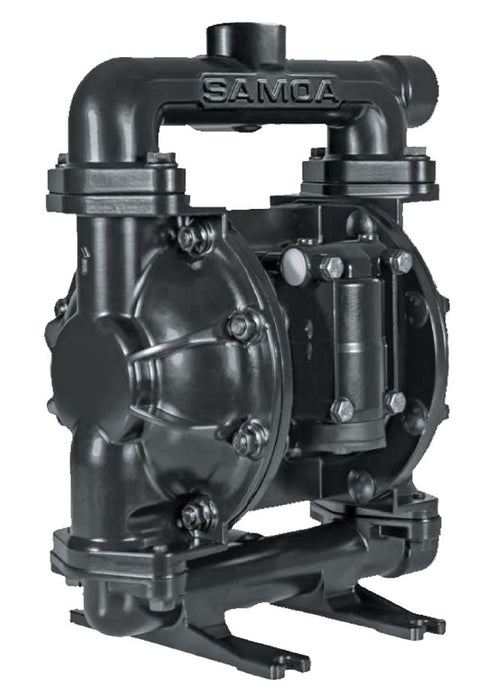

CP10 – 1” Ported Aluminum Diaphragm Pump

When you need reliable, high-volume fluid transfer powered by compressed air, the CP10 – 1” Ported Aluminum Diaphragm Pump delivers consistent performance in demanding industrial environments.

Designed for durability and efficiency, this 1:1 ratio air-operated diaphragm pump provides up to 35 gallons per minute (130 L/min) of free flow, making it ideal for bulk fluid transfer, de-watering, evacuation, and lubrication applications.

Built with an aluminum central body and air chambers, combined with Hytrel® diaphragms and valve components, the CP10 is engineered for long service life and dependable operation.

Key Performance Specifications

• Pump Ratio: 1:1

• Maximum Flow Rate: 35 GPM (130 L/min)

• Maximum Dry Suction Lift: 16 ft (5 m)

• Maximum Wet Suction Lift: 26 ft (8 m)

• Operating Air Pressure Range: 20 – 120 PSI

• Maximum Solids Handling: 1/8” (3.2 mm)

• Air Inlet: 3/8” NPT (F)

• Fluid Outlet: 1” NPT (F)

• Wetted Materials: Hytrel®

Engineered for Reliable Performance

The CP10 features:

• Frictionless pivoting air valves for smoother cycling

• Bolted cover design for secure sealing and easy maintenance

• Long-life diaphragms built for extended service intervals

• Conventional flow design paired with a fast-acting pivot air valve for increased delivery and dependable performance

• Multiple inlet and outlet port options for installation flexibility

These features make the CP10 ideal for continuous-duty environments where uptime matters.

Common Applications

The CP10 is commonly used in:

• Railroad and mass transit maintenance

• Agricultural equipment service

• Automotive dealerships

• Lube trucks and mobile service fleets

Fluids Handled

This pump is well-suited for transferring:

• Antifreeze and antifreeze solutions

• Lubricants

• Used oil

• Used fluids

• Diesel

Industrial-Grade Fluid Transfer

Whether you are evacuating tanks, transferring bulk lubricants, or moving diesel in a service fleet environment, the CP10 provides the airflow-driven reliability professionals expect from an air-operated diaphragm pump.

When purchased through Compressed Air Advisors Online, you are backed by nationwide compressed air expertise and technical support. We help you select the right pump for your application and ensure it integrates seamlessly into your compressed air system.

Compressed Air Advisors Online is America’s choice for compressed air solutions, delivering trusted equipment, expert guidance, and responsive service across the United States.
