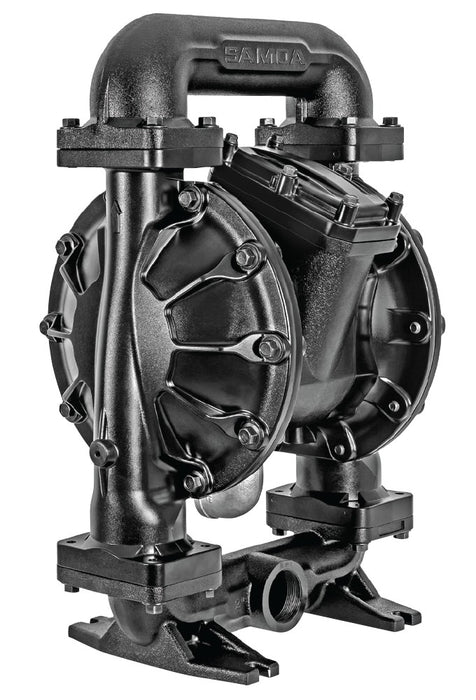

UP30 – 3” Ported Air Operated Diaphragm Pump

When maximum flow capacity is required and downtime is not an option, the UP30 3” Ported Air Operated Diaphragm Pump delivers serious industrial performance powered entirely by compressed air.

With an impressive 265 GPM (1,000 L/min) maximum free flow, the UP30 is engineered for large-volume transfer, de-watering, and heavy-duty fluid evacuation in demanding industrial, mining, agricultural, and rail applications.

Built with an aluminum central body and air chambers and equipped with durable Nitrile wetted components, the UP30 is designed for continuous-duty operation where reliability and high output matter most.

Key Performance Specifications

• Pump Ratio: 1:1

• Maximum Flow Rate: 265 GPM (1,000 L/min)

• Maximum Dry Suction Lift: 19.7 ft (6 m)

• Maximum Wet Suction Lift: 26 ft (8 m)

• Operating Air Pressure Range: 20 – 120 PSI

• Maximum Solids Handling: 1/2” (12.7 mm)

• Air Inlet: 3/4” NPT (F)

• Fluid Outlet: 3” NPT (F)

• Wetted Materials: Nitrile

Built for Extreme Flow Demands

The UP30 features:

• Frictionless pivoting air valves for smooth, reliable cycling

• Bolted cover design for secure sealing and simplified service

• Long-life diaphragms engineered for demanding environments

• Conventional flow design paired with a fast-acting pivot air valve for increased delivery and dependable performance

With 3” porting and 1/2” solids handling capability, this pump is built for applications that move serious volume.

Common Applications

The UP30 is ideal for:

• Industrial facilities

• Mining and construction operations

• Railroad and mass transit maintenance

• Agricultural fluid transfer

Fluids Commonly Handled

• Antifreeze and antifreeze solutions

• Lubricants

• Used oil

• Used fluids

• Diesel

High-Capacity Air-Driven Fluid Transfer

If your operation demands a true high-volume 3” diaphragm pump with airflow-powered reliability, the UP30 delivers the performance professionals depend on in the toughest environments.

When purchased through Compressed Air Advisors Online, you are backed by nationwide compressed air expertise and application support. We ensure your diaphragm pump integrates properly with your compressed air system for optimal efficiency and long-term reliability.

Compressed Air Advisors Online is America’s choice for compressed air solutions, delivering trusted equipment, premium manufacturers, and expert guidance across the United States.
