Hertz Kompressoren HBD 4 - 5hp Belt Driven Rotary Screw Air Compressor, Base Mount, 19 CFM @ 125 PSI, 10 Year Warranty Available

Original price $7,750.00
Original price $7,750.00 - Original price $8,500.00
Original price $7,750.00
Current price $6,983.00
$6,983.00 - $7,659.00
Current price $6,983.00
Save $841.00 Save $767.00
SKU HBD4-230/3-100

Lead Time:

Generally Ships in 1-5 Days

Voltage: 208-230V/3Ph
Pressure: 21 CFM @ 100 PSI

FREE SHIPPING

On All Orders Over $149.00

Satisfaction Guaranteed

Easy Exchanges & Returns

Secure checkout

Protected By SSL

Overview
Description

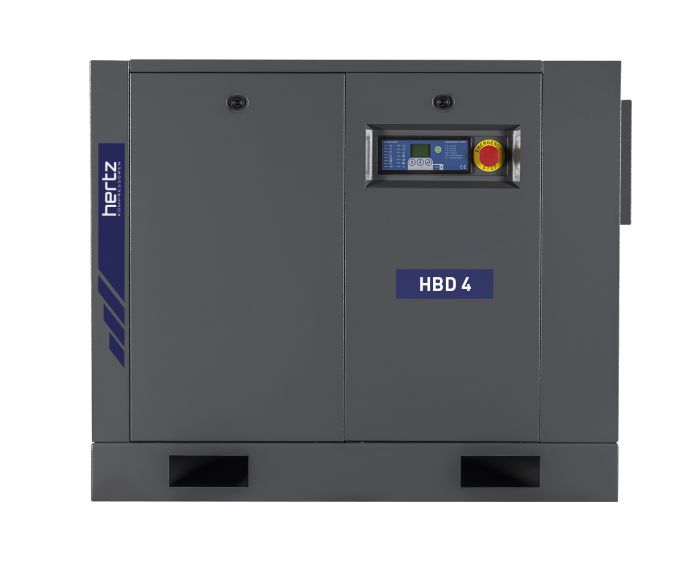

Hertz HBD 4 Base Mount Rotary Screw Air Compressor

When your business depends on reliable air, you can’t afford to settle for less. The Hertz HBD 4 Base Mount Rotary Screw Air Compressor delivers big performance in a compact, efficient package—built to run day after day with minimal maintenance. Designed for small to medium shops that demand consistency, this 5.5 HP rotary screw compressor gives you the power you need without the noise, hassle, or downtime of lesser machines.

Why You’ll Love It

  • Power You Can Count On: Produces up to 21 CFM at 100 PSI, with factory-set pressure options of 100, 125, 150, or 175 PSI, so you always get the airflow you need.

  • Compact & Efficient: The base mount design is perfect for facilities that already have an air receiver or need a flexible installation footprint.

  • Quiet Confidence: At just 72 dB(A), this compressor runs smoothly and quietly, keeping your workspace productive without distraction.

  • Engineered to Last: Built with Hertz’s high-efficiency screw block, IE3 efficiency motor, and rugged components designed for years of reliable service.

  • Low Maintenance, Less Downtime: Spin-on separator, easy belt-tensioning, and quick service access keep your operations moving with minimal interruptions.

Technical Specifications

  • Model: Hertz HBD 4 (Base Mount)

  • Motor Power: 4 kW / 5.5 HP

  • Capacity: 15–21 CFM (depending on pressure setting)

  • Operating Pressure: 100 / 125 / 150 / 175 PSI (factory configurable)

  • Noise Level: 72 dB(A)

  • Dimensions (L x W x H): 59" x 22" x 53"

  • Weight: 772 lbs


Built for Business, Backed by Experts

At Compressed Air Advisors Online, we know compressed air isn’t just equipment—it’s the heartbeat of your operation. That’s why we’re proud to offer Hertz Kompressoren, a name trusted worldwide for reliability, innovation, and efficiency. When you choose the HBD 4 Base Mount, you’re choosing peace of mind, expert guidance, and nationwide support from America’s choice for compressed air solutions.



Warranty Dimensions Instruction Manual Brochure Video
