Description

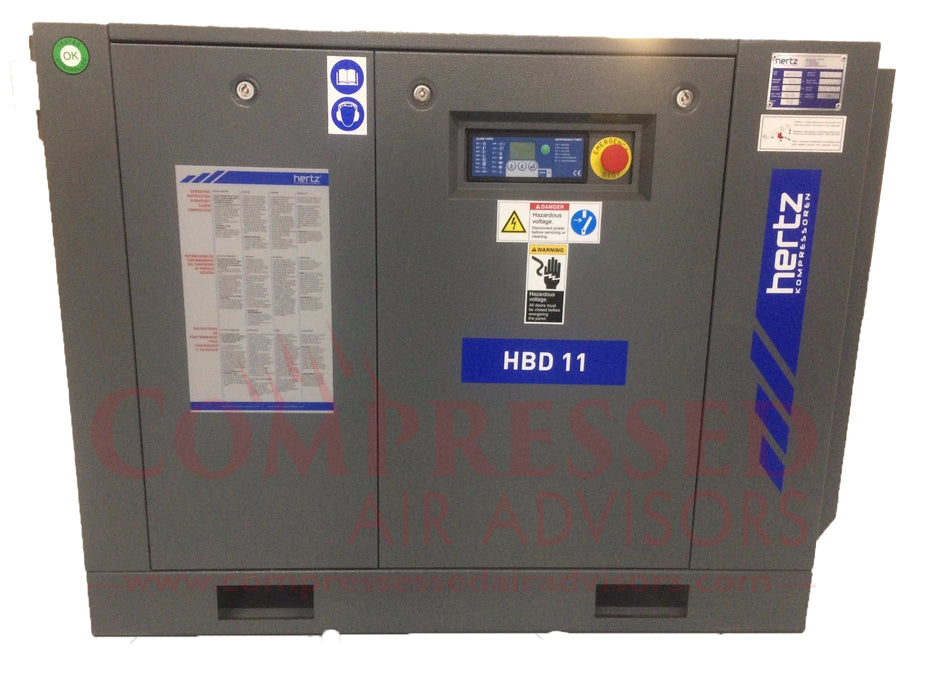

Hertz HBD 11 Base Mount Rotary Screw Air Compressor

When you need dependable air power that never quits, the Hertz HBD 11 Base Mount Rotary Screw Air Compressor delivers with confidence. This 15 HP belt-driven rotary screw compressor is designed for continuous-duty industrial use, offering exceptional performance, energy efficiency, and quiet operation. Whether you’re running a busy production floor, an auto body shop, or a fabrication facility, the HBD 11 gives you the reliable air supply your business depends on—day in and day out.

Why You’ll Love It

• Proven Performance: Delivers up to 63 CFM @ 125 PSI, with factory options for 100, 150, or 175 PSI, ensuring it fits perfectly into your system.

• Base Mount Flexibility: Ideal for operations that already have an air receiver or want to design a customized air system.

• Quiet Efficiency: Runs at just 72 dB(A), producing powerful airflow without overwhelming noise.

• Engineered for Longevity: Built with Hertz’s patented screw block, high-efficiency IE3 motor, and robust belt-driven system for long-term reliability.

• Low Maintenance: Spin-on air/oil separator, quick-access service panels, and easy belt-tensioning make upkeep fast and cost-effective.

• Peace of Mind: Optional 10-Year Airend Warranty backed by Hertz Kompressoren and the experts at Compressed Air Advisors Online.

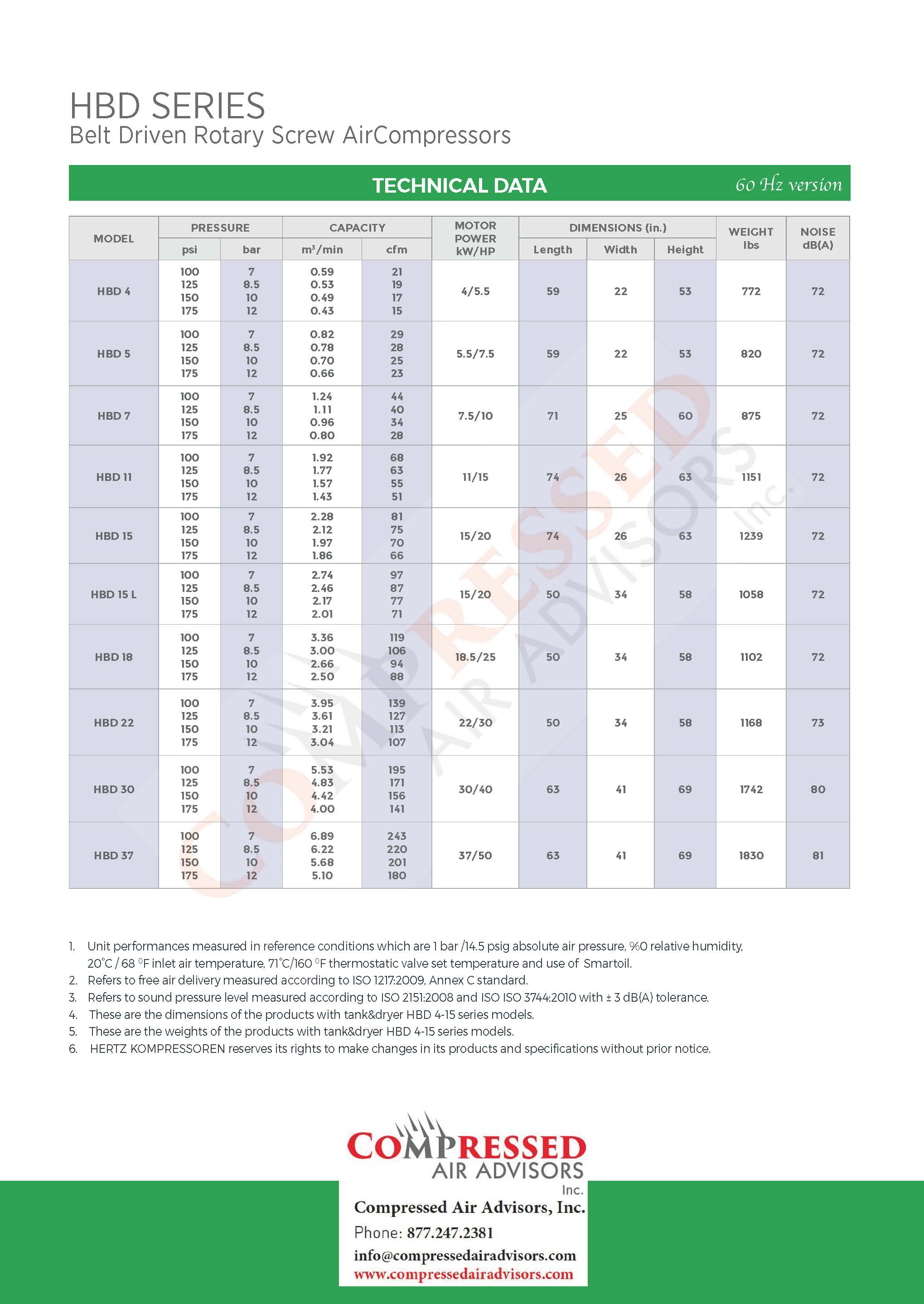

Technical Specifications

• Model: Hertz HBD 11 (Base Mount)

• Motor Power: 11 kW / 15 HP

• Capacity: 51–68 CFM (depending on pressure setting)

• Performance: 63 CFM @ 125 PSI

• Operating Pressure: 100 / 125 / 150 / 175 PSI (factory configurable)

• Noise Level: 72 dB(A)

• Dimensions (L × W × H): 74" × 26" × 63"

• Weight: 1,151 lbs

Quiet Power. Proven Performance.

At Compressed Air Advisors Online, we understand that your business runs on reliability. That’s why we proudly offer Hertz Kompressoren, a brand known worldwide for power, precision, and durability. The HBD 11 Base Mount combines industrial performance with long-lasting efficiency—backed by expert guidance, nationwide support, and the confidence of America’s choice for compressed air solutions.

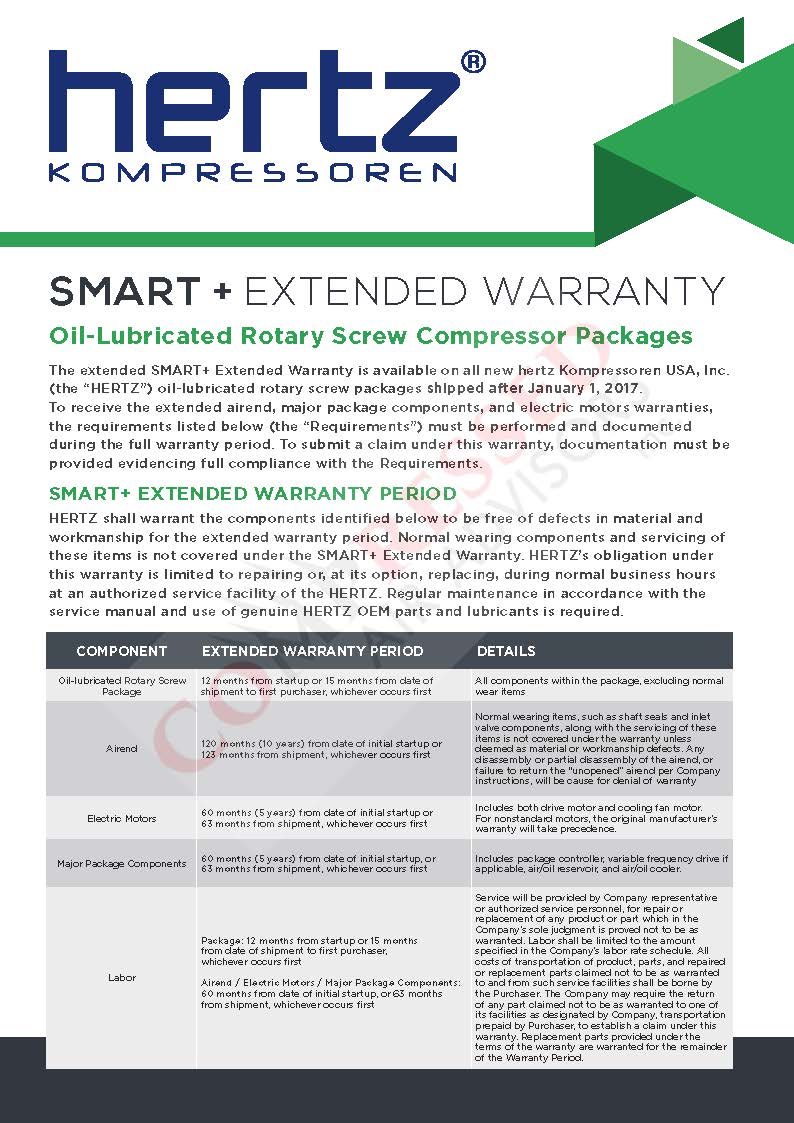

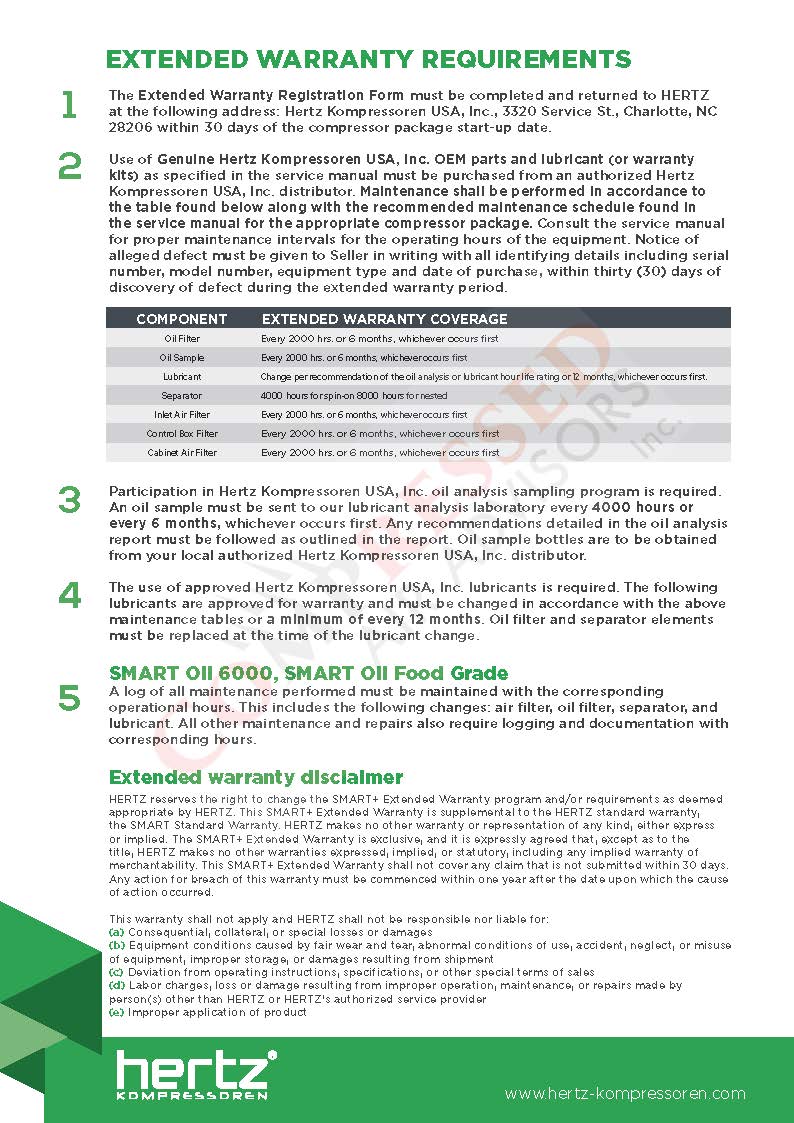

Click Here for Hertz Warranty

Click Here For Hertz HBD 11 Dimensions

Click Here For Hertz HBD Manaual

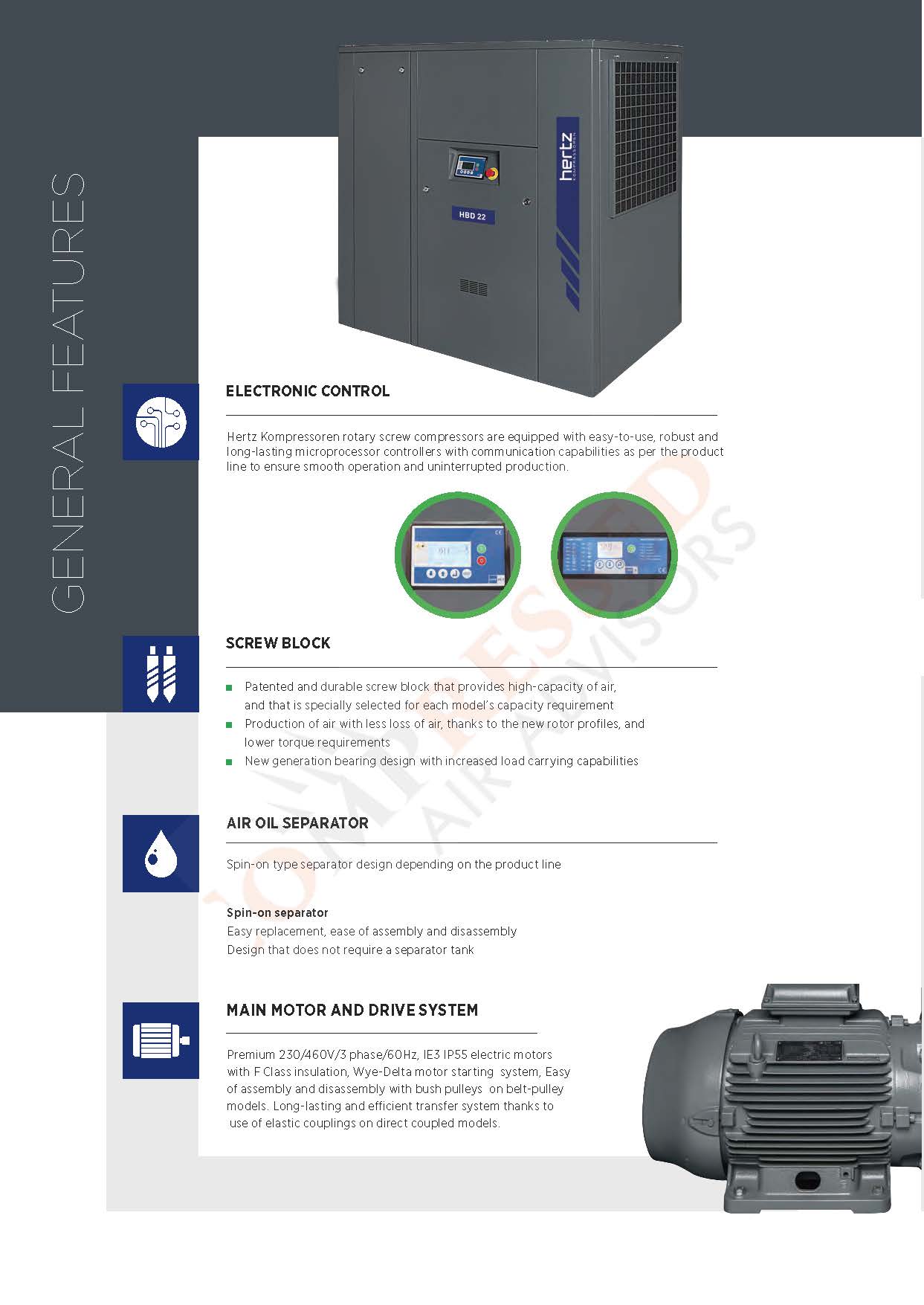

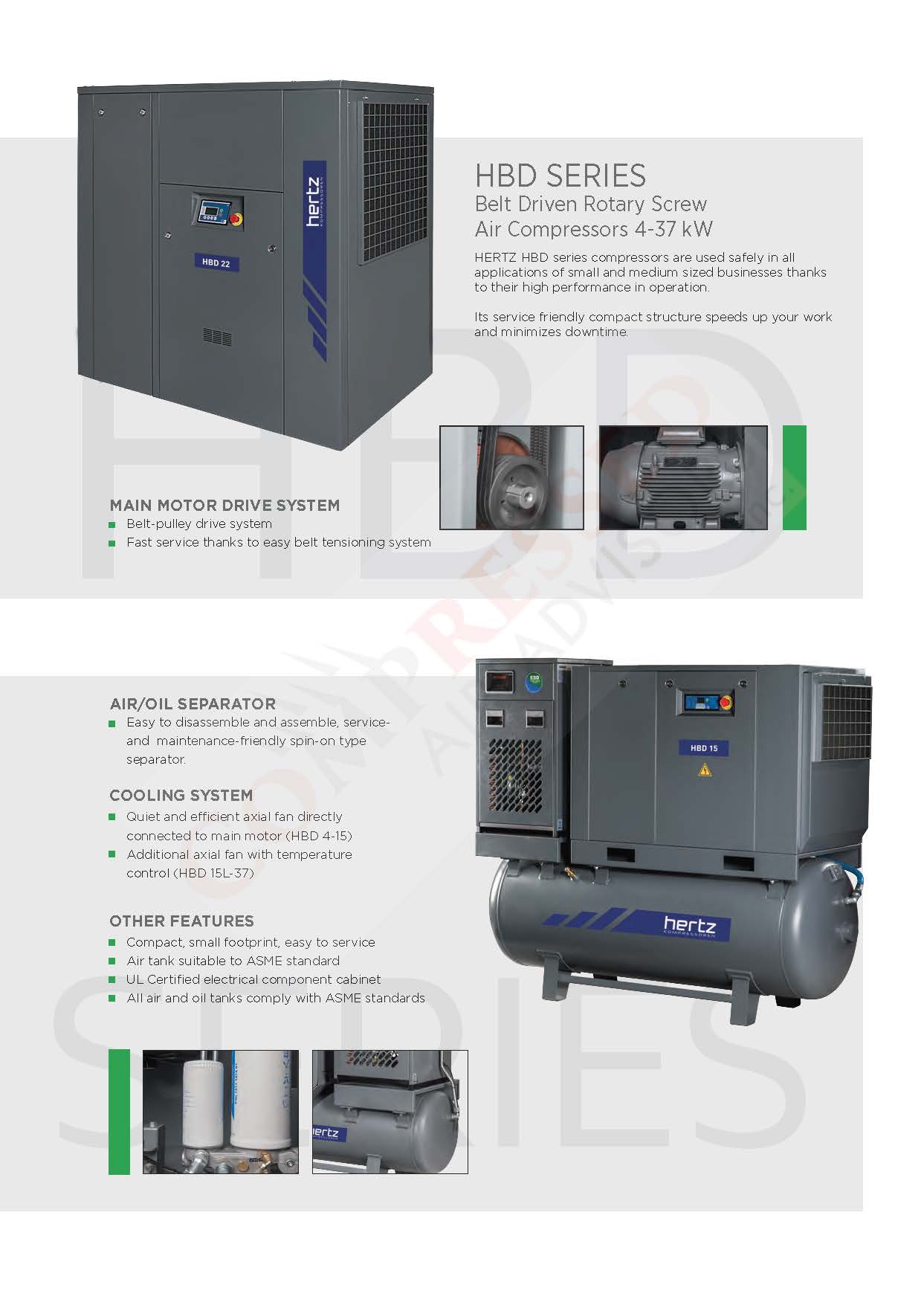

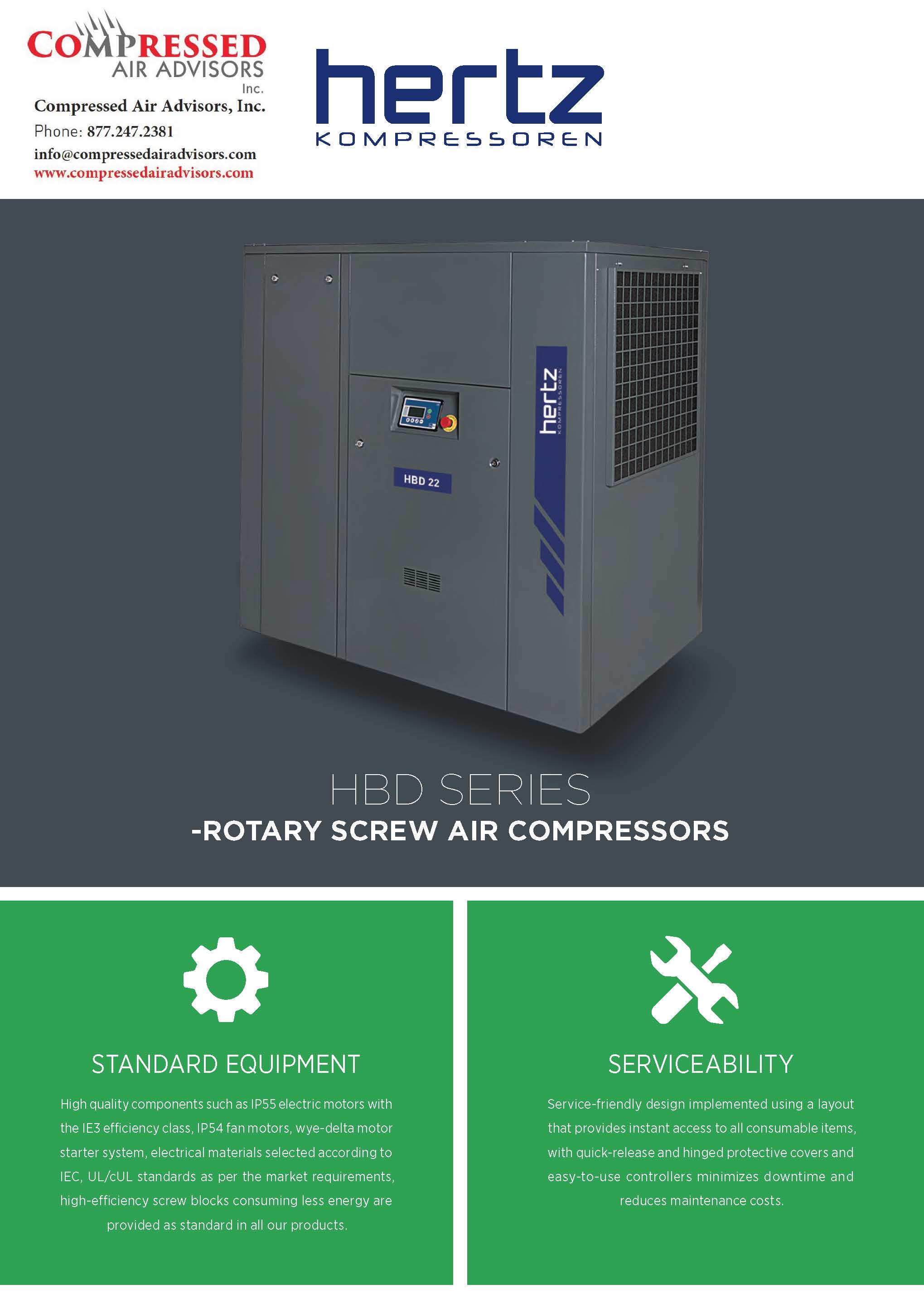

Click Here For Hertz HBD Brochure
