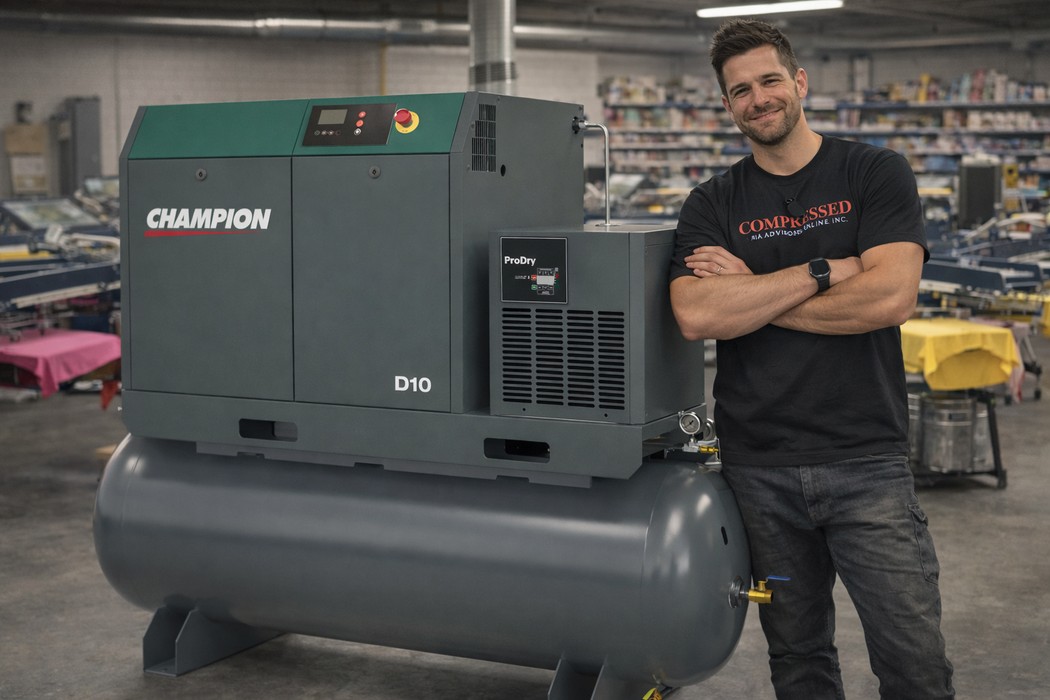

Champion D10 Air System – 10 HP Rotary Screw Compressor – 145 PSI

When your facility depends on compressed air every minute of the workday, the Champion D10 Air System (AS) delivers the airflow, reliability, and air quality serious production environments require.

This is not a pieced-together setup. It is a fully integrated compressed air system designed for continuous-duty operation.

At 145 PSI, the D10 produces 39 SCFM, providing the capacity needed for multi-station automotive shops, CNC machining centers, fabrication facilities, and light manufacturing operations running multiple tools simultaneously.

Consistent airflow. Stable pressure. Industrial-grade performance.

Performance Specifications – D10 AS (145 PSI)

• Horsepower: 10 HP

• Maximum Pressure: 145 PSI

• Airflow: 39 SCFM @ 145 PSI

• Drive Configuration: Belt Drive

• Motor Speed: 1760 RPM

• Tank Size: 120 Gallon Air Receiver

• Dimensions: 77" L × 27" W × 63" H

• Weight: 970 lbs

• Noise Level: 65 dBA

• Controller: CSC300

Complete Air System Included

Every Champion D10 Air System includes:

✔ Rotary Screw Compressor
✔ 120 Gallon Dry Tank Air Receiver
✔ Refrigerated Air Dryer
✔ 1 Micron Pre-Filter
✔ Pressure Gauge
✔ Tank Drain
✔ Separate Electrical Connections (Compressor & Dryer)

Air is dried and filtered before entering the receiver tank, dramatically reducing moisture accumulation and internal corrosion. This improves downstream air quality, protects equipment, and extends the life of your entire compressed air system.

Clean, dry air is not optional in production environments. It is essential.

Built for 100% Duty Cycle

The D10 rotary screw platform is engineered to operate continuously. Unlike reciprocating compressors that cycle on and off, the D10 delivers steady airflow throughout your shift without interruption.

If your operation runs all day, your compressor should too.

Integrated Design for Long-Term Reliability

Champion’s integrated airend and combination oil/air cooler reduce connection points and simplify maintenance. Fewer leak paths mean greater reliability and lower long-term operating stress.

Compact footprint. Maximum durability.

Ideal Applications

• Automotive and collision centers

• Woodworking production shops

• CNC machining facilities

• Fabrication operations

• Manufacturing plants

• Packaging and assembly lines

The D10 Air System is ideal for growing operations that need dependable airflow capacity without stepping into larger, more complex industrial systems.

Why Buy from Compressed Air Advisors Online?

Compressed Air Advisors Online is America’s choice for compressed air solutions. We help customers nationwide properly size and configure complete air systems so they get it right the first time.

✔ Free Freight within the Continental United States
✔ Nationwide compressed air expertise
✔ Premium manufacturers like Champion
✔ Real technical support before and after the sale
✔ Financing options available

When you purchase from us, you are partnering with compressed air professionals who understand uptime, efficiency, and long-term ROI.

Click Here To Download Champion D10 Tech Data

Champion D series Premium Warranty

Click Here To Download Champion D10 Air System Dimensions

Click Here To Download Champion D10 Instruction Manual

Click Here To Download Champion D Series Brochure
