Powerex STD10D6 Series 10 HP Duplex Oil-Less Scroll Air Compressor – 240 Gallon

The Powerex STD10D6 Series 10 HP Duplex Oil-Less Scroll Air Compressor is designed for applications that demand maximum air storage, continuous operation, and uncompromising air purity. Featuring two independent oil-less scroll compressor pumps mounted on a 240-gallon air receiver, the STD10D6 delivers automatic load sharing and built-in redundancy for mission-critical clean-air environments.

The duplex configuration allows each scroll compressor to operate independently in a lead/lag sequence, extending component life while ensuring uninterrupted air supply. During periods of higher demand, both compressors operate together to maintain stable system pressure and consistent airflow.

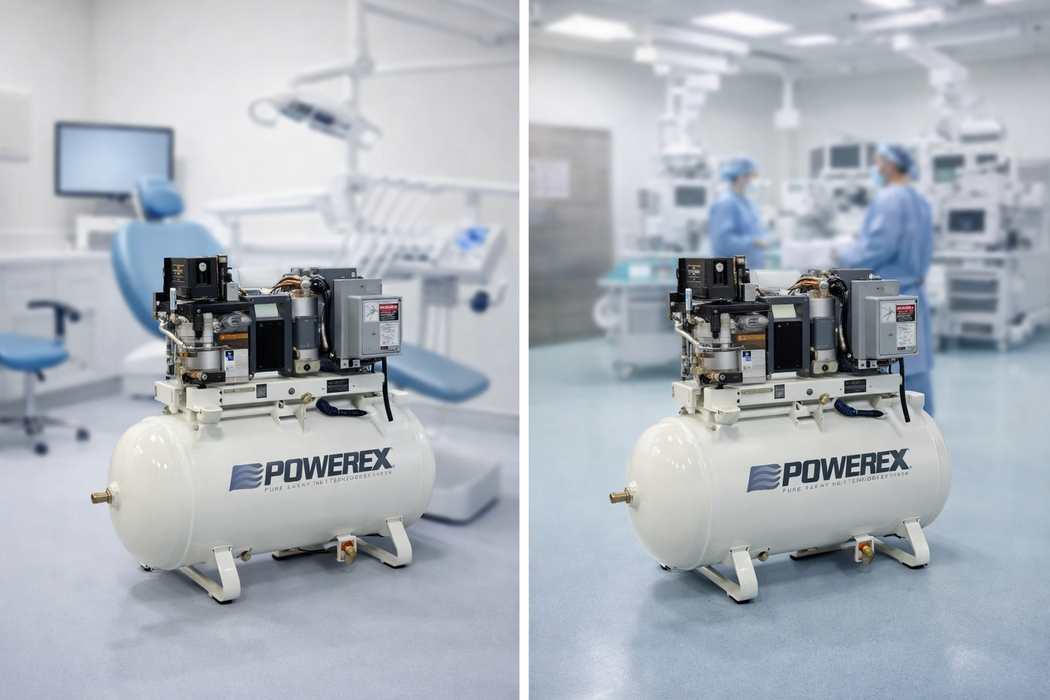

This system is ideally suited for medical, laboratory, pharmaceutical, food processing, and clean manufacturing environments where air quality, uptime, and reliability are essential.

Clean, Quiet, Oil-Free Duplex Performance

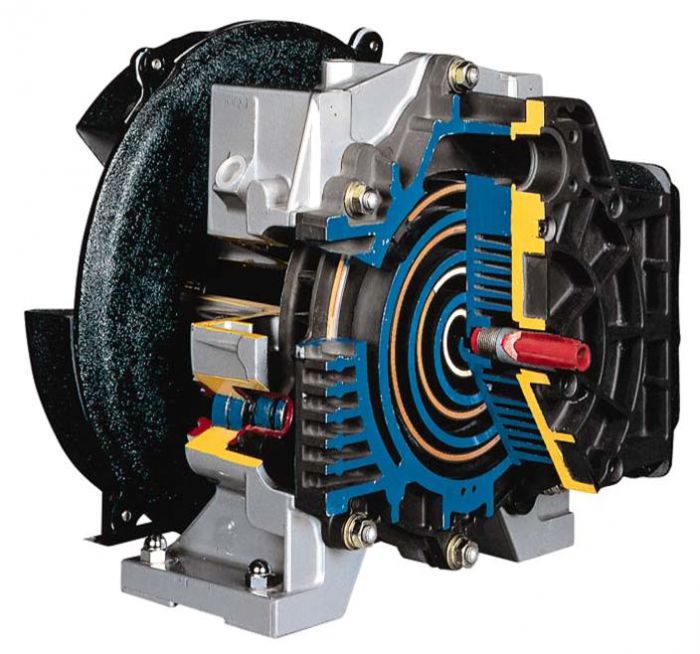

The dual 10 HP oil-less scroll compressors operate with extremely low vibration and sound levels, making the STD10D6 suitable for installation in occupied or noise-sensitive environments.

The system comes standard with electronic condensate drains, automatically removing moisture from the air receiver and protecting downstream equipment without manual intervention.

Because the compressor system is completely oil-free, users benefit from:

• No oil changes

• No oil carryover

• No oil-water separators required

• Reduced downstream filtration requirements

Pressure Configuration

• Standard pressure configuration only

(The STD10D6 is not offered in a 145 PSI high-pressure configuration.)

Voltage Options

The Powerex STD10D6 is available in three-phase configurations only:

• 208V / Three Phase

• 230V / Three Phase

• 460V / Three Phase

Each system includes UL-listed magnetic starters and UL508A-listed control panels for safe, code-compliant operation.

Standard Features & Benefits

• Duplex 10 HP oil-less scroll compressors

• 240-gallon ASME air receiver

• Automatic lead/lag sequencing

• Electronic condensate drains (standard)

• 100% oil-free compressed air

• Extremely low noise and vibration

• Increased storage capacity for reduced cycling

• Designed for continuous-duty service

• Built-in redundancy for critical operations

Typical Applications

• Medical and dental facilities

• Laboratories and research environments

• Pharmaceutical and food processing

• Instrumentation and control systems

• Clean manufacturing operations
