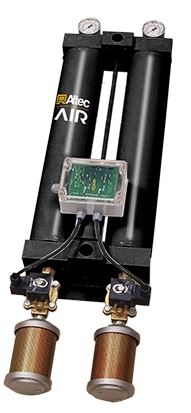

Altec AIR HR5 Heatless Desiccant Air Dryer – 16 SCFM
Product Description
The Altec AIR HR5 Heatless Desiccant Air Dryer delivers ultra-dry compressed air for systems up to 16 SCFM, making it an excellent solution for small industrial compressed air systems and point-of-use drying applications where moisture control is critical. Built with a twin-tower heatless regenerative desiccant design, the HR5 continuously removes moisture from compressed air while automatically regenerating the desiccant in the alternate tower, ensuring reliable drying performance and a consistent supply of clean, dry air.
With a standard -40°F pressure dew point, the HR5 protects pneumatic tools, spray equipment, instrumentation, and sensitive manufacturing processes from moisture contamination that can cause corrosion, freezing, and costly equipment damage. Its compact design allows for easy installation in equipment rooms, compressor packages, or directly at the point of use where dry air is required.
The HR5 is engineered for durability and long service life. Spring-loaded desiccant beds help extend desiccant life, while the fully re-pressurizing tower design maintains steady outlet pressure and airflow during tower switching cycles. The dryer also features a NEMA 4X electrical rating, ensuring dependable performance in demanding industrial environments.
The HR5 is available in 115 Volt / 1 Phase or 230 Volt / 1 Phase configurations and can be equipped with optional moisture indicator and tower pressure gauges, allowing operators to easily monitor dryer performance and verify system operation.
At Compressed Air Advisors Online, America's choice for compressed air solutions, we help customers across the country select the right compressed air equipment for their applications. Whether you are upgrading an existing compressed air system or installing new equipment, our team provides the expertise and support to keep your compressed air system running clean, dry, and reliable.
Key Features
• 16 SCFM Capacity – Ideal for small compressed air systems
• Twin Tower Heatless Desiccant Design – Continuous drying with automatic regeneration
• Standard -40°F Pressure Dew Point – Protects equipment and processes from moisture
• Spring-Loaded Desiccant Beds – Extends desiccant life and improves reliability
• Fully Re-Pressurizing Design – Maintains steady outlet pressure and airflow
• Compact Industrial Construction – Easy installation in tight mechanical spaces
• NEMA 4X Electrical Rating – Built for demanding industrial environments
• Reliable Continuous Operation – Consistent supply of clean, dry compressed air
Available Options
The HR5 dryer can be configured with the following options:
• Moisture Indicator – Visual confirmation of dryer performance
• Tower Pressure Gauges – Allows monitoring of tower operating pressure
• Voltage Options
• 115 Volt / 1 Phase
• 230 Volt / 1 Phase
Technical Specifications
Model: HR5
Dryer Type: Heatless Twin Tower Desiccant Dryer
Maximum Inlet Flow: 16 SCFM @ 100 PSIG
Outlet Flow: 12.6 SCFM @ 100 PSIG
Purge Flow: 3.4 SCFM @ 100 PSIG
Standard Pressure Dew Point: -40°F
Maximum Working Pressure: 150 PSIG
Maximum Inlet Temperature: 120°F
Inlet / Outlet Connection: 1/2" NPT
Electrical Options: 115V / 1 Phase or 230V / 1 Phase
Dimensions: 33.0" Height × 9.5" Width × 6.5" Depth
Weight: 29 lbs
