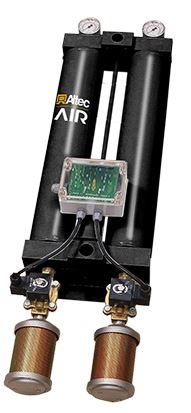

Altec AIR HR6 Heatless Desiccant Air Dryer – 25 SCFM
Product Description
The Altec AIR HR6 Heatless Desiccant Air Dryer is designed to deliver ultra-dry compressed air for systems up to 25 SCFM, making it an excellent solution for small industrial compressed air systems and critical point-of-use drying applications. Using a twin-tower heatless regenerative desiccant design, the HR6 continuously removes moisture from compressed air while regenerating the desiccant in the alternate tower, ensuring a consistent supply of clean, dry air.
With a standard -40°F pressure dew point, the HR6 protects pneumatic tools, instrumentation, spray equipment, and manufacturing processes from moisture contamination that can cause corrosion, freezing, and equipment failure. The compact footprint allows this dryer to be installed easily in compressor rooms, equipment enclosures, or directly at the point of use where moisture removal is critical.
The HR6 is engineered for durability and long-term reliability. Spring-loaded desiccant beds help extend desiccant life, while the fully re-pressurizing tower design ensures steady outlet pressure and flow during tower switching cycles. The dryer also features a NEMA 4X electrical rating, providing dependable operation in demanding industrial environments.
The HR6-11 model is configured for 230 Volt / 1 Phase power and can be ordered with optional moisture indicator and tower pressure gauges, allowing operators to monitor dryer performance and verify system operation.
At Compressed Air Advisors Online, America’s choice for compressed air solutions, we help customers across the country select the right compressed air equipment for their applications. Whether you are upgrading an existing system or installing a new compressed air system, our team provides the expertise and support needed to keep your air system operating reliably.
Key Features
• 25 SCFM Capacity – Ideal for small industrial compressed air systems
• Twin Tower Heatless Desiccant Design – Continuous drying with automatic regeneration
• Standard -40°F Pressure Dew Point – Protects equipment and processes from moisture
• Spring-Loaded Desiccant Beds – Extends desiccant life and improves reliability
• Fully Re-Pressurizing Design – Maintains stable outlet pressure and airflow
• Compact Industrial Design – Easy installation in tight spaces
• NEMA 4X Electrical Rating – Built for demanding industrial environments
• Reliable Continuous Operation – Consistent supply of clean, dry compressed air
Available Options
The HR6-11 dryer can be configured with the following options:
• Moisture Indicator – Provides visual confirmation of dryer performance
• Tower Pressure Gauges – Allows monitoring of tower operating pressure
• Voltage
• 230 Volt / 1 Phase
Technical Specifications
Model: HR6-11
Dryer Type: Heatless Twin Tower Desiccant Dryer
Maximum Inlet Flow: 25 SCFM @ 100 PSIG
Outlet Flow: 19.6 SCFM @ 100 PSIG
Purge Flow: 5.4 SCFM @ 100 PSIG
Standard Pressure Dew Point: -40°F
Maximum Working Pressure: 150 PSIG
Maximum Inlet Temperature: 120°F
Inlet / Outlet Connection: 1/2" NPT
Electrical: 230V / 1 Phase
Dimensions: 41.9" Height × 9.5" Width × 6.5" Depth
Weight: 34 lbs
