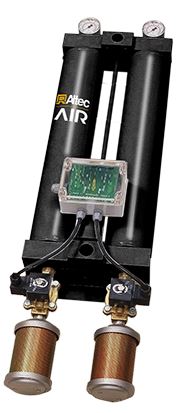

Altec AIR HR6.5 Heatless Desiccant Air Dryer – 35 SCFM
Product Description
The Altec AIR HR6.5 Heatless Desiccant Air Dryer is engineered to deliver ultra-dry compressed air for systems up to 35 SCFM, making it an ideal solution for smaller industrial compressed air systems where moisture control is critical. Using a twin-tower heatless regenerative drying design, the HR6.5 continuously removes moisture from compressed air while automatically regenerating the desiccant bed, ensuring consistent drying performance and dependable operation.
With a standard -40°F pressure dew point, the HR6.5 protects sensitive pneumatic equipment, controls, instrumentation, and manufacturing processes from moisture contamination that can lead to corrosion, freezing, and premature equipment failure. The dryer’s compact footprint makes it easy to install in equipment rooms, compressor packages, or point-of-use applications.
The HR6.5 is built for durability and long service life. Spring-loaded desiccant beds help extend desiccant life, while the fully re-pressurizing tower design maintains stable outlet pressure and airflow during switching cycles. The dryer also features a NEMA 4X electrical rating, providing reliable performance in demanding industrial environments.
This model can be configured to match your system requirements with optional moisture indicators and tower pressure gauges, allowing operators to easily monitor system performance and verify dryer operation.
At Compressed Air Advisors Online, America’s choice for compressed air solutions, we help customers across the country select the right compressed air equipment for their applications. Whether you are upgrading an existing system or installing a new compressed air setup, our team provides the expertise and support to ensure your compressed air stays clean, dry, and reliable.
Key Features
• 35 SCFM Capacity – Ideal for small industrial compressed air systems
• Twin Tower Heatless Desiccant Design – Continuous drying with automatic regeneration
• Standard -40°F Pressure Dew Point – Protects equipment and processes from moisture
• Spring-Loaded Desiccant Beds – Extends desiccant life and improves performance
• Fully Re-Pressurizing Design – Maintains steady outlet pressure and airflow
• Compact Industrial Design – Easy installation in tight mechanical spaces
• NEMA 4X Electrical Rating – Built for demanding industrial environments
• Reliable Continuous Operation – Provides consistent dry compressed air
Available Options
The HR6.5 dryer can be configured to match your compressed air system requirements with the following options:
• Moisture Indicator – Visual confirmation of dryer performance
• Tower Pressure Gauges – Allows monitoring of tower operating pressure
• Voltage Options
• 115 Volt / 1 Phase
• 230 Volt / 1 Phase
Technical Specifications
Model: HR6.5
Dryer Type: Heatless Twin Tower Desiccant Dryer
Maximum Inlet Flow: 35 SCFM @ 100 PSIG
Outlet Flow: 27.2 SCFM @ 100 PSIG
Purge Flow: 7.8 SCFM @ 100 PSIG
Standard Pressure Dew Point: -40°F
Maximum Working Pressure: 150 PSIG
Maximum Inlet Temperature: 120°F
Inlet / Outlet Connection: 1/2" NPT
Electrical Options: 115V / 1-Phase or 230V / 1-Phase
Dimensions: 39.3" Height × 10.0" Width × 7.0" Depth
Weight: 59 lbs
