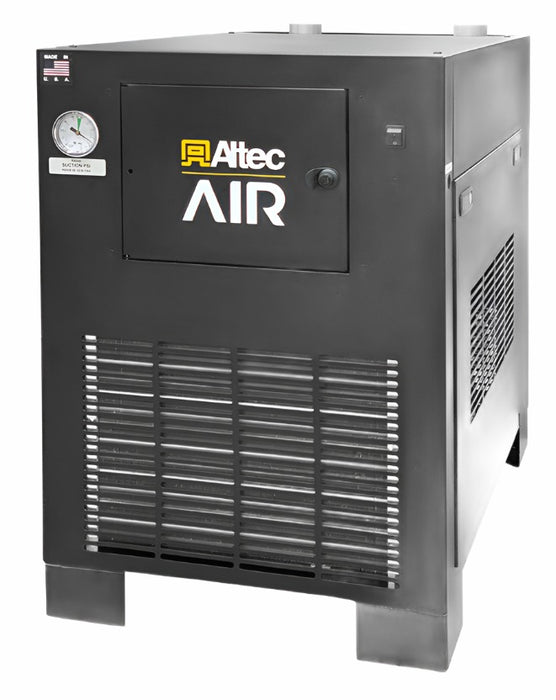

Altec RAD-0025A - 25 CFM Non Cycling Refrigerated Air Dryer, 115V

Original price $2,239.00
Original price $2,239.00 - Original price $2,239.00
Original price $2,239.00
Current price $1,759.00
$1,759.00 - $1,759.00
Current price $1,759.00
Save $480.00 Save $480.00
SKU RAD-0025A-1

FREE SHIPPING

On All Orders Over $149.00

Satisfaction Guaranteed

Easy Exchanges & Returns

Secure checkout

Protected By SSL

Overview
Description

Altec AIR’s RAD Series Non-Cycling Refrigerated Air Dryers are designed to meet the demand of your compressed air system with quality components that are built to last.

  • Consistent & Reliable Dry Air - ISO Class 5

  • Compact All-Aluminum Heat Exchanger Modules with Low Pressure Drops

  • Programmable Automatic Electronic Drains

  • Easy-Access Cabinet Design for Ease of Maintenance & Serviceability

  • Suction & Discharge Pressure Gauges Provide Simple & Reliable Monitoring of the Dryer’s Refrigeration System

  • Top Mounted Inlet & Outlet Connections Allow for Easy Installation of Dryer, Filters, & Bypass Valves

  • ETL Listed Configurations (Pending)

Refrigeration Air Drying Process


Refrigeration Drying Process Flow Diagram

Altec AIR Refrigerated Air Dryers use refrigeration cooling to condense moisture and remove it from a compressed air system.

  • Warm saturated air enters a pre-cooler/re-heater heat exchanger at the dryer inlet and is pre-cooled by outgoing cold air.

  • The pre-cooled air then enters the air to refrigerant heat exchanger and is cooled to its lowest point.

  • As the air is cooled, the moisture it contains changes from a vapor to a liquid and is removed by a stainless-steel mesh separator and discharged from the dryer through an automatic drain valve.

  • The cold air is then re-heated by incoming warm air as it passes back through the pre-cooler/re-heater.

  • The resulting warm air that exits the dryer is clean, dry and ready for use by a compressed air system.

Altec Refrigerated Air Dryer
