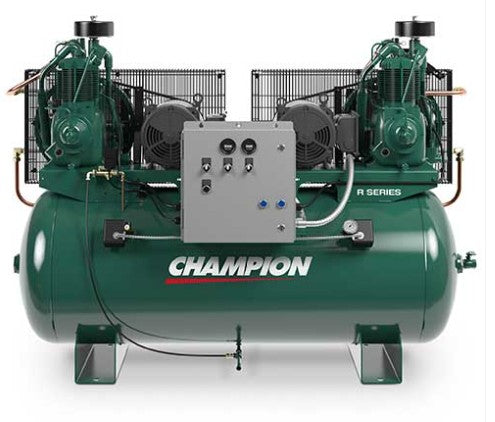

Champion HR15D-24 – Duplex 15 HP (2× R-40 Pumps) Two-Stage Reciprocating Air Compressor | 240-Gallon Horizontal Tank

Available Voltages: 208 V / 3 Ph, 230 V / 3 Ph, or 460 V / 3 Ph
CFM @ 175 PSI: 108.2 (54.1 × 2)  Pump RPM: 776
Tank Size: 240 Gallons Horizontal
Approx. Ship Weight: 2,460 lbs
Dimensions (L × W × H): 90″ × 57″ × 74″
Model: HR15D-24  Compressor Pumps: (2) Champion R-40 Cast-Iron Two-Stage
Warranty: 1-Year Standard / 3-Year Pump (Option for 6-Year Extended with Premium Kit)

---

Dual R-40 Pumps for Maximum Airflow and Built-In Redundancy

The Champion HR15D-24 is a duplex industrial-duty air compressor engineered for operations that require massive air capacity, continuous uptime, and system redundancy.
Equipped with two heavy-duty R-40 cast-iron two-stage pumps, each driven by its own 15 HP motor, this unit produces a combined 108.2 CFM @ 175 PSI while operating at a low 776 RPM per pump. This slow-speed design reduces heat and wear for cooler, quieter, and more efficient performance.

Mounted on a 240-gallon ASME-certified horizontal tank, the HR15D-24 offers the perfect combination of high air storage and continuous-duty operation for large manufacturing facilities, production lines, and industrial applications that demand uninterrupted compressed air.

---

R-40 Pump Power × 2 = Industrial Performance × 2

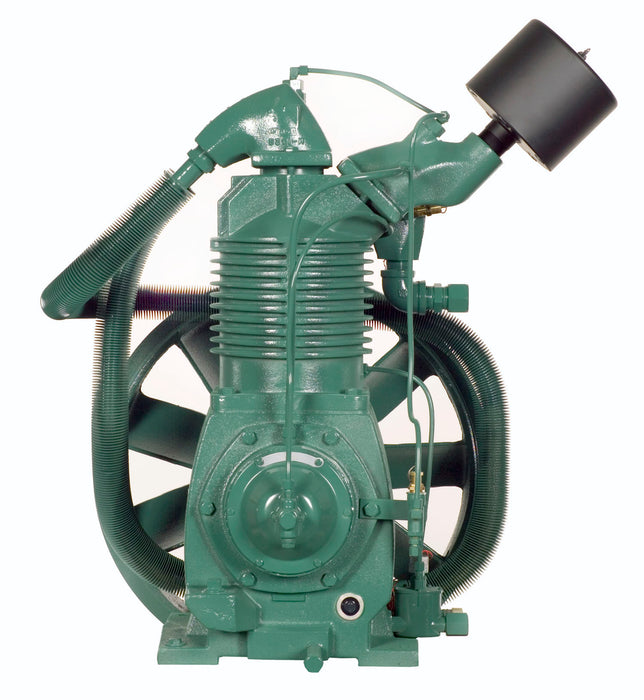

Champion’s legendary R-40 pump is an upgrade from the smaller R-30, featuring larger cylinders, a longer stroke, and low-RPM operation for maximum efficiency and longevity.
The duplex configuration doubles airflow while providing automatic alternation control, allowing one pump to rest while the other runs—or both to operate simultaneously during peak demand.
This design delivers built-in redundancy, minimizing downtime and extending equipment life.

---

Key Features

• Dual R-40 Cast-Iron Two-Stage Pumps: Massive air output with low-speed operation for extended life.

• Duplex Alternating Control System: Allows individual or simultaneous operation for redundancy and efficiency.

• 240-Gallon ASME Horizontal Tank: Provides large air reserve for steady pressure and reduced cycling.

• High Output Performance: 108.2 CFM @ 175 PSI (54.1 × 2).

• Low Speed Operation (776 RPM per pump): Cooler, quieter performance and longer pump life.

• Loadless Start Centrifugal Unloaders: Reduce startup load and motor wear.

• Splash Lubrication System: Reliable and simple for continuous industrial use.

• Three-Phase Power Only: Available in 208 V, 230 V, or 460 V.

• Extended Warranty Option: Add Champion’s Premium Maintenance Kit for 6 years of pump coverage and 2 years on the full system.

---

Performance Specifications

Specification	HR15D-24
Horsepower	(2) × 15 HP
Pump Model	(2) × R-40
Tank Capacity	240 Gallons Horizontal
Total CFM @ 175 PSI	108.2
Pump RPM	776
Voltage	208 / 3, 230 / 3, 460 / 3
Weight	2,460 lbs
Dimensions (L × W × H)	90″ × 57″ × 74″
Warranty	1-Year Package / 3-Year Pump

---

Why Buy from Compressed Air Advisors Online

At Compressed Air Advisors Online, we’re proud to be America’s choice for compressed air solutions — offering factory-authorized Champion compressors, nationwide delivery, and expert guidance.
The HR15D-24 offers dual-pump R-40 performance, massive air storage, and industrial-grade reliability — backed by free freight and full factory warranty protection.

💨 Free Freight Across the Continental U.S.
🔧 Expert Guidance from Compressed Air Professionals
📦 Nationwide Delivery and Factory Warranty Support

---

The Champion HR15D-24 — dual 15 HP R-40 pumps producing 108.2 CFM @ 175 PSI on a 240-gallon horizontal tank. Engineered for high-capacity, continuous-duty industrial performance.
