Description

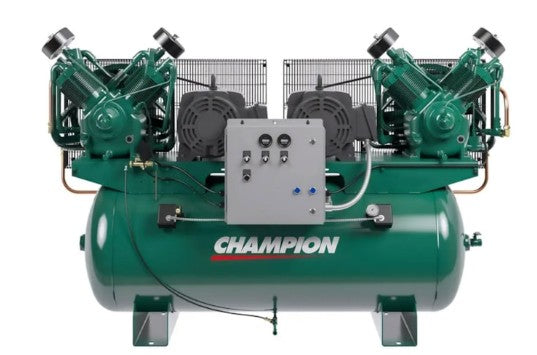

Champion HR15DF-24 – Duplex 15 HP (2x R-30 Pumps) Two-Stage Reciprocating Air Compressor | 240-Gallon Horizontal Tank

Available Voltages: 208 V / 3 Ph, 230 V / 3 Ph, or 460 V / 3 Ph
CFM @ 175 PSI: 97.4 (48.7 × 2)  Pump RPM: 1,034
Tank Size: 240 Gallons Horizontal
Approx. Ship Weight: 2,460 lbs
Dimensions (L × W × H): 88″ × 33″ × 61″
Model: HR15DF-24  Compressor Pumps: (2) Champion R-30 Cast-Iron Two-Stage
Warranty: 1-Year Standard / 3-Year Pump (Option for 6-Year Extended with Premium Kit)

Maximum Air. Maximum Redundancy. Maximum Reliability.

The Champion HR15DF-24 is a duplex 30 HP total air compressor system designed for industrial environments that demand high air capacity, continuous-duty performance, and built-in redundancy.
Equipped with two R-30 cast-iron two-stage pumps, each powered by its own 15 HP motor, this unit delivers a combined 97.4 CFM @ 175 PSI at a low 1,034 RPM per pump—ensuring cooler operation, longer life, and dependable performance day after day.

Mounted on a 240-gallon ASME-certified horizontal tank, the HR15DF-24 provides massive air storage, reduced cycling, and superior pressure stability for the most demanding applications.

Dual R-30 Pumps – Industrial Strength, Proven Longevity

Champion’s R-30 pump is built to last, with a precision-machined cast-iron crankcase, low-speed flywheel design, and efficient two-stage compression. In duplex configuration, these pumps can alternate automatically or run simultaneously for peak performance, providing redundancy and flexibility for continuous-duty industrial operations.

The HR15DF-24 keeps production moving, even during maintenance or high-load conditions — making it ideal for large manufacturing facilities, production lines, and automotive operations.

Key Features

• Dual R-30 Cast-Iron Two-Stage Pumps: Heavy-duty, slow-speed design for long-lasting industrial use.

• Duplex Control Panel: Alternating or simultaneous operation for redundancy and efficiency.

• 240-Gallon ASME Horizontal Tank: Provides extensive storage for consistent air delivery and reduced cycling.

• High Output (97.4 CFM @ 175 PSI): Handles high-demand air systems with ease.

• Low-Speed Operation (1,034 RPM per pump): Runs cooler and quieter for extended service life.

• Loadless Start Centrifugal Unloaders: Reduce startup torque and prolong motor life.

• Splash Lubrication System: Proven, low-maintenance reliability.

• Three-Phase Power Only: Available in 208 V, 230 V, or 460 V.

• Extended Warranty Option: Add Champion’s Premium Maintenance Kit for 6 years of pump coverage and 2 years on the full package.

Performance Specifications

Why Buy from Compressed Air Advisors Online

At Compressed Air Advisors Online, we’re proud to be America’s choice for compressed air solutions — offering factory-authorized Champion compressors, expert product knowledge, and nationwide delivery.
The HR15DF-24 is engineered for operations that demand nonstop reliability and maximum air performance — backed by free freight and full factory warranty protection.

💨 Free Freight Across the Continental U.S.
🔧 Expert Guidance from Compressed Air Professionals
📦 Nationwide Delivery and Factory Warranty Support

The Champion HR15DF-24 — twin 15 HP R-30 pumps producing 97.4 CFM @ 175 PSI, built for continuous-duty industrial applications requiring high air volume and rock-solid dependability.
