Description

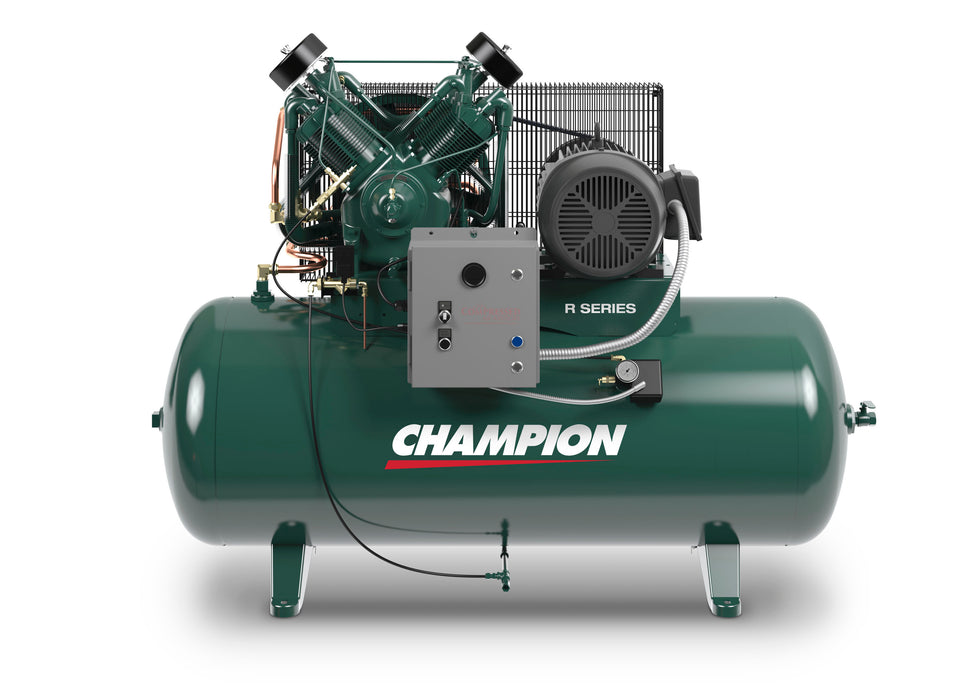

Champion HR15F-24 – 15 HP R-30 Two-Stage Reciprocating Air Compressor | 240-Gallon Horizontal Tank

Available Voltages: 208 V / 3 Ph, 230 V / 3 Ph, or 460 V / 3 Ph
CFM @ 175 PSI: 48.7  Pump RPM: 1,034
Tank Size: 240 Gallons Horizontal
Approx. Ship Weight: 1,371 lbs
Dimensions (L × W × H): 88″ × 33″ × 61″
Model: HR15F-24  Compressor Pump: Champion R-30 Cast-Iron Two-Stage
Warranty: 1-Year Standard / 3-Year Pump (Option for 6-Year Extended with Premium Kit)

Maximum Storage. Maximum Air. Maximum Reliability.

The Champion HR15F-24 delivers uncompromising performance and air capacity for large-scale industrial environments. Powered by the Champion R-30 two-stage cast-iron pump, this 15 HP system produces 48.7 CFM @ 175 PSI while operating at a low 1,034 RPM, ensuring cooler temperatures, quieter operation, and extended service life.

Its massive 240-gallon ASME-certified horizontal tank provides exceptional air storage capacity, allowing for longer run cycles and more stable air pressure—making the HR15F-24 ideal for manufacturing facilities, production lines, and body shops that demand continuous-duty air power.

Built with Champion’s Proven R-30 Pump

At the heart of every HR15F-24 is the Champion R-30, one of the most durable and reliable two-stage compressor pumps ever built. The R-30’s heavy-duty cast-iron design and precision-balanced components minimize heat and vibration, providing decades of dependable operation in even the toughest environments.

Key Features

• R-30 Cast-Iron Two-Stage Pump: Industrial-duty, low-RPM design built for longevity.

• 240-Gallon ASME Horizontal Tank: Large air reserve reduces cycling and maintains consistent system pressure.

• High Output Performance: 48.7 CFM @ 175 PSI for continuous operation.

• Low-Speed Operation (1,034 RPM): Runs cooler and quieter for extended service life.

• Loadless Start Centrifugal Unloader: Minimizes motor strain during startup.

• Splash Lubrication System: Simple, proven design for long-lasting reliability.

• Three-Phase Power Only: Available in 208 V, 230 V, or 460 V.

• Extended Warranty Option: Add Champion’s Premium Maintenance Kit for 6 years of pump coverage and 2 years on the complete package.

Performance Specifications

Why Buy from Compressed Air Advisors Online

At Compressed Air Advisors Online, we’re proud to be America’s choice for compressed air solutions—offering factory-authorized Champion compressors, nationwide delivery, and unmatched product expertise.
The HR15F-24 provides the high capacity, reliability, and industrial strength your operation demands—backed by free freight and full factory warranty protection.

💨 Free Freight Across the Continental U.S.
🔧 Expert Guidance from Compressed Air Professionals
📦 Nationwide Delivery and Factory Warranty Support

The Champion HR15F-24 — 15 HP of industrial-grade R-30 performance delivering 48.7 CFM @ 175 PSI on a 240-gallon horizontal tank for maximum reliability and air storage.
