Description

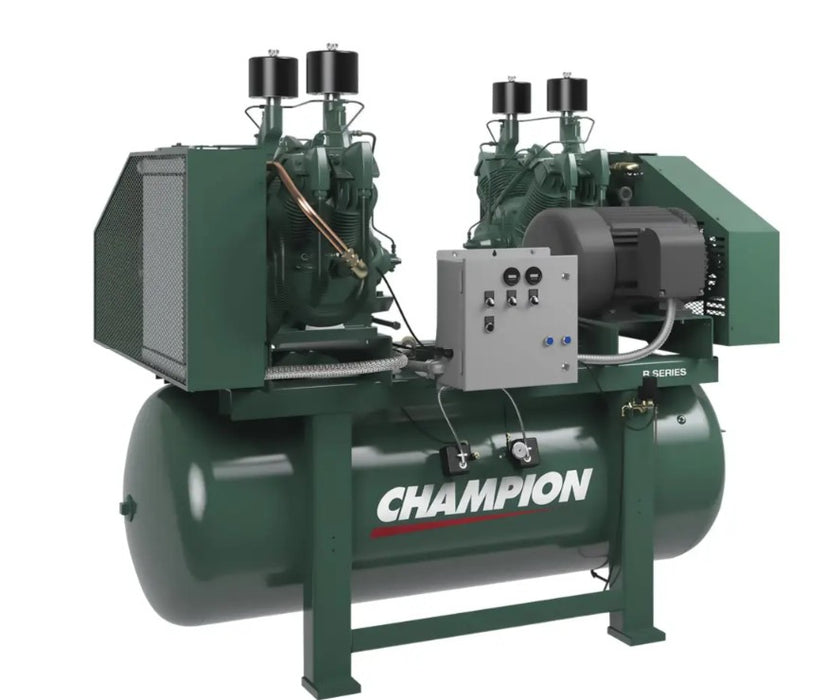

Champion HR20D-24 – Duplex 20 HP (2× R-70 Pumps) Two-Stage Reciprocating Air Compressor | 240-Gallon Horizontal Tank

Available Voltages: 208 V / 3 Ph, 230 V / 3 Ph, or 460 V / 3 Ph
Total CFM @ 175 PSI: 155.6  Pump RPM: 664 (per pump)
Tank Size: 240 Gallons Horizontal
Approx. Ship Weight: 2,845 lbs
Dimensions (L × W × H): 90″ × 65″ × 75″
Model: HR20D-24  Compressor Pumps: (2) Champion R-70 Cast-Iron Two-Stage
Warranty: 1-Year Standard / 3-Year Pump (Option for 6-Year Extended with Premium Kit)

---

Dual R-70 Pumps for Continuous-Duty Industrial Power

The Champion HR20D-24 is a duplex industrial-duty air compressor designed for facilities that require massive air capacity, built-in redundancy, and continuous operation.
Equipped with two R-70 cast-iron two-stage pumps, each powered by its own 20 HP motor, this unit produces a combined 155.6 CFM @ 175 PSI — providing high output with exceptional efficiency and reliability.

The 240-gallon ASME-certified horizontal tank ensures steady air supply and reduced cycling, while the duplex control system allows alternating operation between pumps for balanced run time or simultaneous operation during peak demand.

---

Dual R-70 Pumps — Power, Redundancy, and Reliability

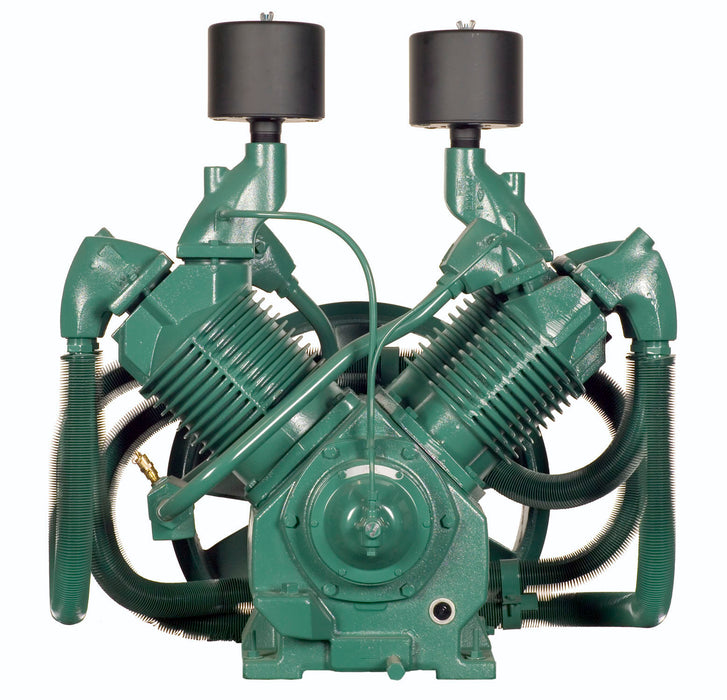

Champion’s R-70 pump is a proven industrial performer, combining low-RPM operation with high efficiency.
In a duplex configuration, two R-70 pumps provide double the output while maintaining cool, quiet, and dependable operation.

Duplex System Advantages:

• Massive Air Output: 155.6 CFM @ 175 PSI total

• Automatic Alternation: Balances pump runtime for longer system life

• Peak-Demand Capability: Both pumps can run simultaneously when needed

• Built-In Redundancy: Ensures continuous air supply even if one side requires maintenance

• Low-RPM Design: Each pump operates at just 664 RPM for cooler, quieter operation

The HR20D-24 is built to handle the toughest industrial applications — keeping your operation running smoothly without interruption.

---

Key Features

• Dual R-70 Cast-Iron Two-Stage Pumps: Heavy-duty, low-speed operation for maximum durability.

• Duplex Alternating Control System: Automatic alternation or simultaneous use as needed.

• 240-Gallon ASME Horizontal Tank: Provides large storage capacity and consistent pressure.

• High Output: 155.6 CFM @ 175 PSI combined.

• Low-Speed Operation (664 RPM per pump): Runs cooler, quieter, and extends service life.

• Loadless Start Centrifugal Unloaders: Reduce motor strain and ensure smooth startup.

• Splash Lubrication System: Proven reliability for continuous-duty operation.

• Three-Phase Power Only: Available in 208 V, 230 V, or 460 V configurations.

• Extended Warranty Option: Add Champion’s Premium Maintenance Kit for 6 years of pump coverage and 2 years on the full compressor package.

---

Performance Specifications

Specification	HR20D-24
Horsepower	(2) × 20 HP
Pump Model	(2) × R-70
Tank Capacity	240 Gallons Horizontal
Total CFM @ 175 PSI	155.6
Pump RPM	664
Voltage	208 / 3, 230 / 3, 460 / 3
Dimensions (L × W × H)	90″ × 65″ × 75″
Weight	2,845 lbs
Warranty	1-Year Package / 3-Year Pump

---

Why Buy from Compressed Air Advisors Online

At Compressed Air Advisors Online, we’re proud to be America’s choice for compressed air solutions — offering factory-authorized Champion compressors, professional support, and nationwide delivery.
The HR20D-24 delivers massive capacity and built-in reliability with dual R-70 pumps, making it the ideal solution for operations that can’t afford downtime — backed by free freight and factory warranty protection.

💨 Free Freight Across the Continental U.S.
🔧 Expert Guidance from Compressed Air Professionals
📦 Nationwide Delivery and Factory Warranty Support

---

The Champion HR20D-24 — dual 20 HP R-70 pumps producing 155.6 CFM @ 175 PSI on a 240-gallon horizontal tank. Built for continuous-duty industrial reliability and high-demand environments.
