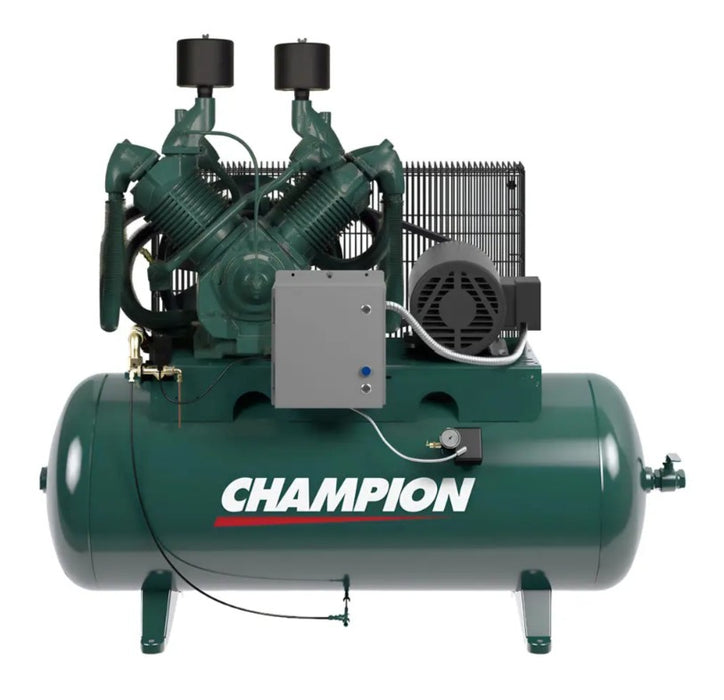

Champion HR25-12 – 25 HP R-70 Two-Stage Reciprocating Air Compressor | 120-Gallon Horizontal Tank

Available Voltages: 208 V / 3 Ph, 230 V / 3 Ph, or 460 V / 3 Ph
CFM @ 175 PSI: 90.7  Pump RPM: 776
Tank Size: 120 Gallons Horizontal
Approx. Ship Weight: ≈ 1,320 lbs
Dimensions (L × W × H): 74″ × 36″ × 65″
Model: HR25-12  Compressor Pump: Champion R-70 Cast-Iron Two-Stage
Warranty: 1-Year Standard / 3-Year Pump (Option for 6-Year Extended with Premium Kit)

---

Heavy-Duty 25 HP Industrial Performance — Powered by the R-70 Pump

The Champion HR25-12 is a true industrial workhorse designed for demanding applications that require both high air volume and reliable, continuous-duty operation.
Equipped with the powerful R-70 two-stage cast-iron pump, this 25 HP unit delivers 90.7 CFM @ 175 PSI while operating at only 776 RPM — providing high efficiency, cooler running temperatures, and long-lasting durability.

With its 120-gallon ASME-certified horizontal tank, the HR25-12 maintains steady pressure and reduces compressor cycling, making it ideal for production facilities, manufacturing plants, and heavy-duty workshops.

---

The Champion R-70 Pump — Efficiency Meets Endurance

Champion’s R-70 is a large-displacement, two-stage, two-cylinder pump built for continuous industrial service.
It’s designed to deliver high CFM at low RPMs, reducing wear and extending the life of key components such as bearings, valves, and pistons.

Why the R-70 stands apart:

• Larger bore and stroke provide more airflow per revolution

• Low-speed operation minimizes heat buildup and vibration

• Cast-iron construction ensures years of dependable service

• Efficient two-stage compression maximizes output and air quality

When uptime, performance, and longevity are critical, the R-70 pump delivers results you can depend on.

---

Key Features

• R-70 Cast-Iron Two-Stage Pump: Low-RPM design for high efficiency and industrial durability.

• 120-Gallon ASME Horizontal Tank: Provides stable pressure and ample air storage.

• High Output Performance: 90.7 CFM @ 175 PSI for demanding shop environments.

• Cool, Quiet Operation: 776 RPM ensures smooth, efficient performance.

• Loadless Start Centrifugal Unloader: Reduces motor strain and startup torque.

• Splash Lubrication System: Proven, low-maintenance design for long-term reliability.

• Three-Phase Power Only: Available in 208 V, 230 V, or 460 V configurations.

• Extended Warranty Option: Add Champion’s Premium Maintenance Kit for 6 years of pump coverage and 2 years on the complete package.

---

Performance Specifications

Specification	HR25-12
Horsepower	25 HP
Pump Model	R-70
Tank Capacity	120 Gallons Horizontal
CFM @ 175 PSI	90.7
Pump RPM	776
Voltage	208 / 3, 230 / 3, 460 / 3
Dimensions (L × W × H)	74″ × 36″ × 65″
Weight	≈ 1,320 lbs
Warranty	1-Year Package / 3-Year Pump

---

Why Buy from Compressed Air Advisors Online

At Compressed Air Advisors Online, we’re proud to be America’s choice for compressed air solutions — offering factory-authorized Champion compressors, nationwide delivery, and professional product support.
The HR25-12 combines Champion’s renowned R-70 pump with a durable 120-gallon tank, delivering high airflow and long-term reliability — backed by free freight and full factory warranty protection.

💨 Free Freight Across the Continental U.S.
🔧 Expert Guidance from Compressed Air Professionals
📦 Nationwide Delivery and Factory Warranty Support

---

The Champion HR25-12 — featuring the R-70 pump producing 90.7 CFM @ 175 PSI at just 776 RPM. Built for continuous-duty industrial applications with unmatched reliability.

Click Here to Download Warranty

Click Here to Download Dimensions

Click Here To Download Champion R Series Instruction Manual

Click Here to Download Brochure
