Description

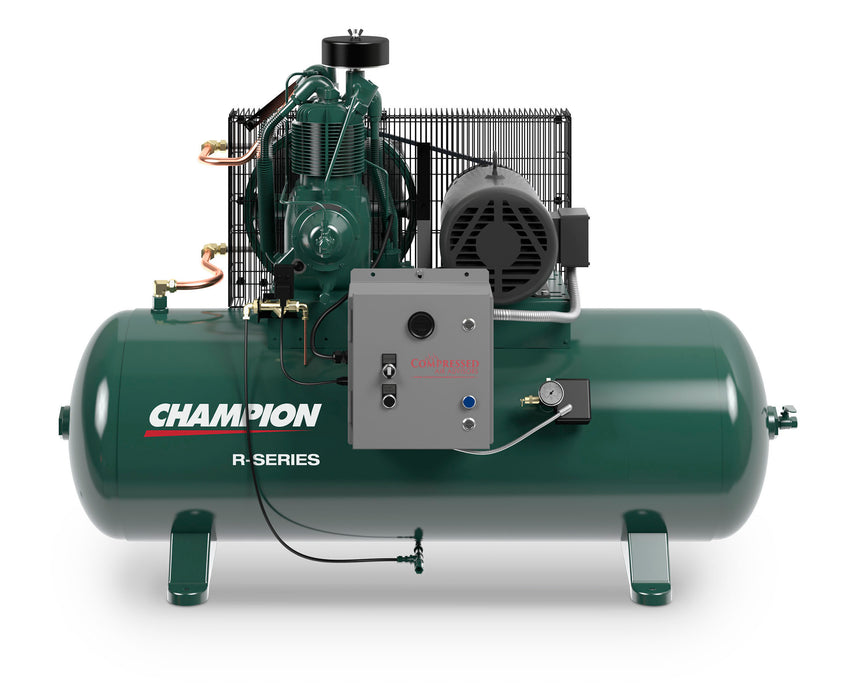

Champion HR3F-12 – 3 HP Two-Stage Reciprocating Air Compressor | 120-Gallon Horizontal Tank
Available Voltages: 115 V / 1 Ph, 208 V / 1 Ph, 230 V / 1 Ph, 208 V / 3 Ph, 230 V / 3 Ph, or 460 V / 3 Ph
CFM @ 175 PSI: 10.3
RPM: 900
Tank Size: 120-Gallon Horizontal
Model: HR3F-12
Compressor Pump: R-15 Cast-Iron Two-Stage Pump
Warranty: 1-Year Standard / 3-Year Pump Warranty (Option for 6-Year Extended with Premium Kit)
Maximum Air Storage. Continuous Champion Performance.
The Champion HR3F-12 delivers professional-grade performance, reliability, and air capacity in one heavy-duty package. Equipped with a 3 HP, two-stage, splash-lubricated compressor, this model produces 10.3 CFM @ 175 PSI and comes mounted on a 120-gallon ASME-certified horizontal tank, providing extended air storage for smoother operation and reduced cycling.
At the heart of the HR3F-12 is Champion’s proven R-15 cast-iron pump, designed for cool running, quiet operation, and long life. Built for light industrial and commercial applications, this compressor offers unmatched value and durability for anyone who needs dependable air power day after day.
Key Features
-
R-15 Cast-Iron Pump: Two-cylinder, two-stage compressor head engineered for cooler operation and long-term reliability.
-
Splash Lubrication System: Proven lubrication design ensures minimal maintenance and consistent performance.
-
Loadless Start Centrifugal Unloader: Reduces starting load and extends the life of motors and electrical components.
-
ASME-Certified 120-Gallon Horizontal Tank: Industrial-grade receiver includes drain, service, and safety relief valves.
-
Flexible Voltage Options: Available in 115 V / 1 Ph, 208 V / 1 Ph, 230 V / 1 Ph, 208 V / 3 Ph, 230 V / 3 Ph, or 460 V / 3 Ph.
-
Quiet Operation: Low-RPM performance reduces vibration and noise for a more comfortable work environment.
-
Extended Warranty Option: Add a Champion Premium Maintenance Kit for 6 years of pump coverage and 2 years on the complete package.
Performance Specifications
| Specification |
HR3F-12 |
| Horsepower |
3 HP |
| Pump Model |
R-15 |
| Tank |
120-Gallon Horizontal |
| CFM @ 175 PSI |
10.3 |
| RPM |
900 |
| Voltage |
115 V / 1 Ph, 208 V / 1 Ph, 230 V / 1 Ph, 208 V / 3 Ph, 230 V / 3 Ph, 460 V / 3 Ph |
| Weight |
405 lbs |
| Dimensions (L × W × H) |
67″ × 24″ × 45″ |
| Warranty |
1-Year Package / 3-Year Pump |
Why Buy from Compressed Air Advisors Online
At Compressed Air Advisors Online, we’re proud to be America’s choice for compressed air solutions—offering factory-authorized Champion compressors, nationwide delivery, and expert product support. Whether you’re upgrading your existing compressor or expanding your air system, our team will help you choose the right solution and back it with free freight and factory warranty coverage.
💨 Free Freight Across the Continental U.S.
🔧 Expert Guidance from Compressed Air Professionals
📦 Nationwide Delivery and Factory Warranty Support
The Champion HR3F-12 — maximum air capacity, low-RPM reliability, and the industrial strength you expect from Champion.
