Description

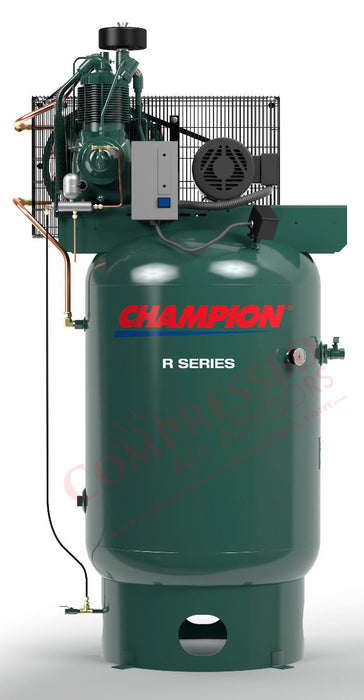

Champion VR3F-12 – 3 HP Two-Stage Reciprocating Air Compressor | 120-Gallon Vertical Tank
Available Voltages: 115 V / 1 Ph, 208 V / 1 Ph, 230 V / 1 Ph, 208 V / 3 Ph, 230 V / 3 Ph, or 460 V / 3 Ph
CFM @ 175 PSI: 10.3
RPM: 900
Tank Size: 120-Gallon Vertical
Model: VR3F-12
Compressor Pump: R-15 Cast-Iron Two-Stage Pump
Warranty: 1-Year Standard / 3-Year Pump Warranty (Option for 6-Year Extended with Premium Kit)
High-Capacity Air. Compact Footprint. Champion Reliability.
The Champion VR3F-12 provides the perfect balance of power, capacity, and durability for professional shops, maintenance departments, and light industrial applications. Equipped with a 3 HP, two-stage, splash-lubricated compressor pump, it produces 10.3 CFM @ 175 PSI and is paired with a large 120-gallon ASME-certified vertical tank for maximum storage and efficiency.
Built with Champion’s R-15 cast-iron pump, the VR3F-12 delivers cooler operation, quieter performance, and industry-leading longevity. Factory-assembled and tested, it’s ready to provide years of dependable service with minimal maintenance.
Key Features
-
R-15 Cast-Iron Pump: Two-cylinder, two-stage compressor head designed for cooler running temperatures and extended service life.
-
Splash Lubrication System: Proven lubrication design ensures reliable, low-maintenance performance.
-
Loadless Start Centrifugal Unloader: Reduces startup strain and extends the life of the motor and electrical components.
-
ASME-Certified 120-Gallon Vertical Tank: Heavy-duty receiver includes drain, relief, and service valves for easy maintenance and safety.
-
Flexible Voltage Options: Available in 115 V / 1 Ph, 208 V / 1 Ph, 230 V / 1 Ph, 208 V / 3 Ph, 230 V / 3 Ph, or 460 V / 3 Ph configurations.
-
Low-RPM Operation: Runs cooler and quieter for longer life and reduced vibration.
-
Extended Warranty Option: Add a Champion Premium Maintenance Kit for 6 years of pump coverage and 2 years on the complete package. Click Here!
Performance Specifications
| Specification |
VR3F-12 |
| Horsepower |
3 HP |
| Pump Model |
R-15 |
| Tank |
120-Gallon Vertical |
| CFM @ 175 PSI |
10.3 |
| RPM |
900 |
| Voltage |
115 V / 1 Ph, 208 V / 1 Ph, 230 V / 1 Ph, 208 V / 3 Ph, 230 V / 3 Ph, 460 V / 3 Ph |
| Weight |
435 lbs |
| Dimensions (L × W × H) |
26″ × 24″ × 78″ |
| Warranty |
1-Year Package / 3-Year Pump |
Why Buy from Compressed Air Advisors Online
At Compressed Air Advisors Online, we’re proud to be America’s choice for compressed air solutions—offering factory-authorized Champion compressors, nationwide delivery, and expert guidance. We help you select the right compressor for your application and back it with free freight and factory warranty support.
💨 Free Freight Across the Continental U.S.
🔧 Expert Advice from Compressed Air Professionals
📦 Nationwide Delivery and Factory Warranty Support
The Champion VR3F-12 — high-capacity air, and the legendary reliability you expect from Champion.
