Description

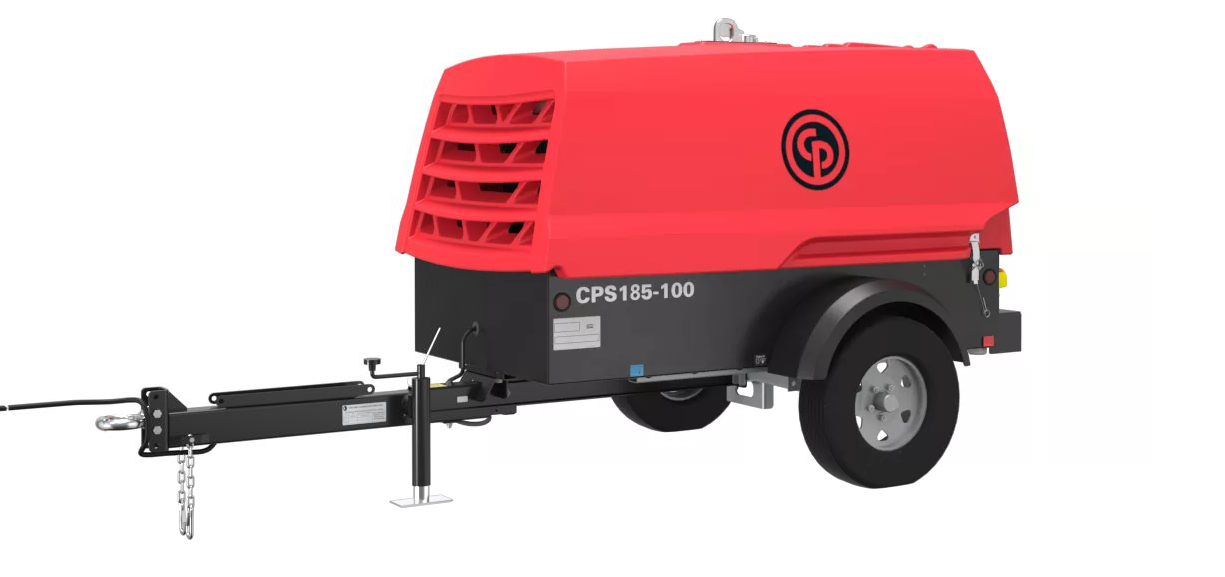

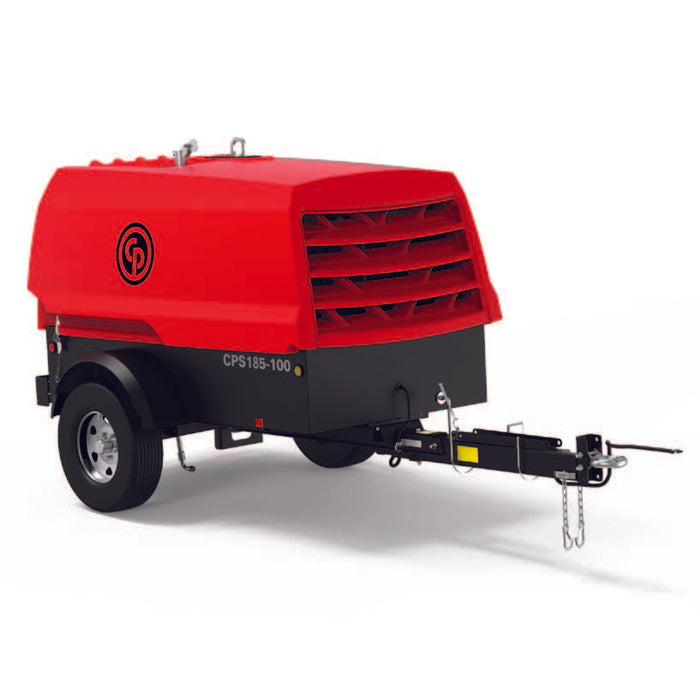

Chicago Pneumatic CPS 185-100 Towable Screw Air Compressor – 180 CFM @ 100 PSI – 8972422001

The Chicago Pneumatic CPS 185-100 Towable Screw Air Compressor delivers 180 CFM at 100 PSI and is powered by a reliable 49 HP Kohler KDI 1903 TCR Tier 4 Final diesel engine. Built for construction, utility, rental, and industrial applications, the CPS 185-100 combines rugged portable performance with Chicago Pneumatic's Redrock™ enclosure, 110% fluid containment, XC1004 controller, and heavy-duty single-axle trailer.

Part Number: 8972422001

Full Product Description

The Chicago Pneumatic CPS 185-100 Portable Air Compressor is designed to provide dependable compressed air in demanding construction and industrial environments. Producing 180 CFM at 100 PSI, this towable rotary screw compressor provides the airflow needed to operate pneumatic breakers, tools, and other air-powered equipment in locations where plant air or electrical power is unavailable.

Power comes from a Kohler KDI 1903 TCR three-cylinder turbocharged diesel engine producing 49 HP at 2,500 RPM. The engine meets EPA Tier 4 Final emissions requirements and is paired with Chicago Pneumatic's efficient C90 single-stage, oil-injected rotary screw compressor element.

Chicago Pneumatic's automatic stepless regulating system adjusts engine speed based on compressed air demand. This allows the compressor to provide the air required by the application without continually operating the engine at maximum speed.

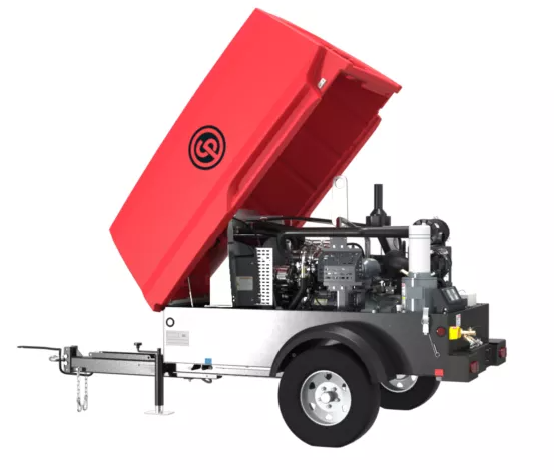

The CPS 185-100 is enclosed in Chicago Pneumatic's rugged Redrock™ double-wall polyethylene canopy, providing excellent resistance to dents, corrosion, UV exposure, fading, and general jobsite abuse. The clamshell-style enclosure also provides easy access to internal components for routine service and maintenance.

A 110% fluid containment frame helps contain potential fluid leaks and spills, while the built-in toolbox provides convenient storage for jobsite tools. An external lifting eye provides an easy lifting point when loading or positioning the compressor.

The intuitive XC1004 digital controller provides operators with access to key compressor and engine information including operating hours, engine RPM, outlet pressure, service intervals, operating temperatures, alarms, and engine diagnostic codes.

With its rugged construction, simple controls, efficient diesel power, and proven Chicago Pneumatic rotary screw technology, the CPS 185-100 is built to deliver portable compressed air day after day.

Key Features

• 180 CFM actual free air delivery
• 100 PSI normal working pressure
• Kohler KDI 1903 TCR turbocharged diesel engine
• 49 HP engine output
• EPA Tier 4 Final compliant
• Single-stage oil-injected rotary screw compressor
• Chicago Pneumatic C90 compressor element
• Automatic stepless capacity regulation
• XC1004 digital compressor controller
• Redrock™ double-wall polyethylene enclosure
• Dent, corrosion, and UV-resistant canopy
• 110% fluid containment frame
• Built-in internal toolbox
• External single-point lifting eye
• Spin-on compressor oil separator
• Two 3/4" compressed air outlets
• 22.3-gallon fuel tank
• Heavy-duty single-axle trailer
• 2,500 lb. rated torsion axle
• Adjustable-height pintle hitch with 3" lunette
• DOT-approved trailer lighting
• Safety chains and screw jack leveling
• Designed for ambient operating temperatures up to 122°F

Benefits

• Portable 180 CFM Air Supply: Provides substantial compressed air output for pneumatic tools and demanding field applications.
• Efficient Diesel Operation: Automatic regulation adjusts engine speed to match actual air demand.
• Built for Harsh Jobsites: Redrock™ polyethylene enclosure resists dents, corrosion, fading, and UV exposure.
• Reduced Spill Risk: 110% fluid containment helps prevent compressor fluids from reaching the surrounding environment.
• Easy Maintenance: Major components are readily accessible and the spin-on separator design simplifies routine service.
• Operator-Friendly Controls: XC1004 controller puts compressor operation, diagnostics, alarms, and service information in one convenient display.
• Easy Transportation: Heavy-duty single-axle trailer makes the compressor easy to move between jobsites.
• Long Operating Time: Large 22.3-gallon diesel fuel tank helps reduce refueling interruptions.

Best For / Typical Applications

The Chicago Pneumatic CPS 185-100 is an excellent choice for:

• Construction contractors
• Road and bridge work
• Pneumatic breakers and jackhammers
• Utility contractors
• Municipal maintenance departments
• Equipment rental fleets
• Industrial maintenance
• Pipeline work
• Infrastructure projects
• General pneumatic tool operation
• Remote jobsites requiring portable compressed air

Technical Specifications

Why Choose the Chicago Pneumatic CPS 185-100?

The CPS 185-100 combines one of the most commonly required portable compressor capacities, 180 CFM, with a rugged package designed specifically for demanding field use.

Chicago Pneumatic pairs its proven rotary screw compressor technology with a Kohler Tier 4 Final diesel engine, automatic capacity regulation, easy-to-use digital controls, excellent component access, and a durable polyethylene enclosure.

For contractors and organizations that need a portable compressor capable of reliably supplying 180 CFM at 100 PSI, the CPS 185-100 provides an excellent combination of performance, durability, serviceability, and portability.

Warranty

Chicago Pneumatic Compressor Package:
18 months from factory shipment or 12 months from initial startup, whichever occurs first.

Chicago Pneumatic Compressor Element:
30 months from factory shipment or 24 months from initial startup, whichever occurs first.

Kohler Engine:
3 years / 2,000 operating hours, whichever occurs first.

Kohler Major Component Warranty:
3 years / 3,000 operating hours, whichever occurs first.

Product registration and the use of approved genuine service parts and lubricants are required to maintain applicable warranty coverage.

Why Buy from Compressed Air Advisors Online?

When you purchase your Chicago Pneumatic CPS 185-100 from Compressed Air Advisors Online, you're working with compressed air specialists who can help make sure you're selecting the right compressor for your application.

• Expert compressed air equipment support
• Nationwide sales and shipping
• Application and equipment sizing assistance
• Help matching air tools to compressor CFM and pressure
• Replacement parts and preventative maintenance support
• Knowledgeable assistance before and after the sale

Have questions about the Chicago Pneumatic CPS 185-100 or need help determining whether 180 CFM is enough for your application? Contact Compressed Air Advisors Online at 877-247-2381.

Frequently Asked Questions

How much air does the Chicago Pneumatic CPS 185-100 produce?

The CPS 185-100 delivers 180 CFM of actual free air at a normal working pressure of 100 PSI.

What engine is used in the CPS 185-100?

The compressor is powered by a Kohler KDI 1903 TCR three-cylinder turbocharged diesel engine rated at 49 HP.

Is the CPS 185-100 Tier 4 Final compliant?

Yes. The Kohler diesel engine used in the CPS 185-100 meets U.S. EPA Tier 4 Final emissions requirements.

What size air connections are on the CPS 185-100?

The compressor is equipped with two 3/4-inch compressed air outlets.

How large is the fuel tank?

The CPS 185-100 has a 22.3-gallon diesel fuel tank.

How much does the CPS 185-100 weigh?

The trailer-mounted CPS 185-100 has a wet, ready-to-operate weight of approximately 2,110 lbs.

What are the dimensions of the CPS 185-100?

The trailer-mounted compressor measures approximately 131.85 inches long x 62.13 inches wide x 65.34 inches high.

What applications is a 180 CFM towable compressor used for?

A 180 CFM towable compressor is commonly used for pneumatic breakers, construction tools, utility work, roadwork, industrial maintenance, rental applications, and other jobs requiring a portable compressed air supply.
