Description

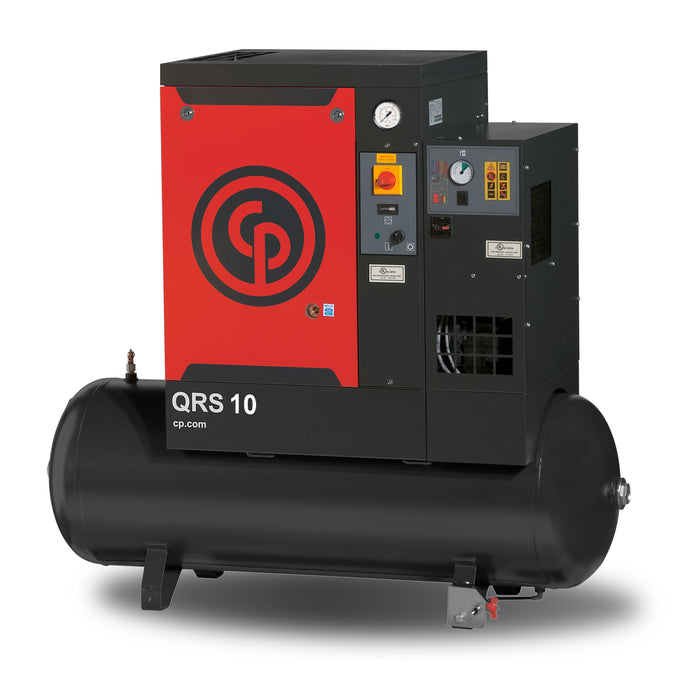

Chicago Pneumatic QRS 10D 125 TM – 10 HP Rotary Screw Air Compressor with Dryer

Refrigerated Dryer | Tank-Mounted | 120-Gallon | Tri-Voltage 208-230/460V/3Ph
40 ACFM @ 125 PSI | Part Number: 4152023178

The Chicago Pneumatic QRS 10D 125 TM is the ultimate all-in-one compressed air solution for shops that demand clean, dry, and reliable air—without the footprint or noise of a traditional compressor room. With an integrated refrigerated air dryer and a 120-gallon ASME tank, this 10 HP rotary screw system provides 40 ACFM at 125 PSI, delivering the performance your air tools and equipment need to run at their best.

Built on the trusted QRS 10–20 platform, this model is engineered for continuous-duty operation, quiet performance, and long-term reliability. Perfect for automotive shops, fabrication facilities, manufacturing, maintenance operations, and any application where high-quality compressed air is essential.

Key Features & Benefits

Integrated Refrigerated Air Dryer

• Provides clean, dry compressed air to protect downstream equipment.

• Removes moisture before it ever reaches your piping or air tools, reducing rust, contamination, and maintenance issues.

• Fully integrated into the system—no external mounting or extra electrical connections required.

Industrial Rotary Screw Performance

• Produces 40 ACFM @ 125 PSI for consistent, continuous-duty air supply.

• Superior efficiency and smoother, pulse-free airflow compared to piston compressors.

• Designed for full-time shop use without cool-down periods.

120-Gallon Vertical ASME Tank

• Large receiver reduces compressor cycling and supports steady pressure.

• Compact tank-mount design saves valuable floor space while increasing system efficiency.

Ultra-Quiet Operation

• Low-sound enclosure keeps noise levels around 65–68 dB(A), ideal for installation directly on the shop floor.

• Eliminates the need for a separate compressor room.

ES4000 Basic Controller

• Intelligent control system manages pressure, temperature, service intervals, alarms, and system performance.

• Auto-restart and energy-saving shutdown maximize efficiency and uptime.

Tri-Voltage Flexibility

• Ready for 208-230/460V/3-phase power, simplifying installation across a wide range of facilities.

Built for Long Service Life

• Premium oil-injected screw element manufactured with precision for durability and high performance.

• Spin-on oil filter and separator ensure easy maintenance and clean air output.

• Includes a 5-year warranty on major components with authorized startup.

Technical Specifications

• Model: QRS 10D (125 PSI)

• Horsepower: 10 HP

• ACFM: 40 @ 125 PSI

• Max Pressure: 125 PSI

• Tank Size: 120-Gallon ASME

• Voltage: Tri-Voltage 208–230/460V/3Ph

• Dryer: Integrated Refrigerated Air Dryer

• Noise Level: Approx. 65–68 dB(A)

• Part Number: 4152023178
