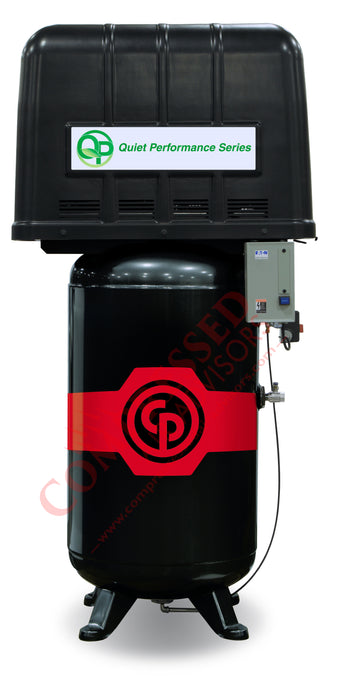

Chicago Pneumatic RCP-7583VQP, 7.5HP Enclosed Reciprocating Compressor with 80-Gallon Vertical Receiver & Mag Starter

Model Number: 8090300636

Power Source: 208-230V/3Ph

Output: 25.3 CFM @ 175 PSIG

Product Description:

The Chicago Pneumatic RCP-7583VQP is more than just a 7.5HP Enclosed Reciprocating Compressor; it's a symbol of exceptional strength and time-proven design that’s been tailored for superior performance in challenging industrial environments. With its robust 80-Gallon Vertical Receiver, integrated Mag Starter, and 25.3 CFM output at 175 PSIG, it meets and exceeds your compressed air demands.

Key Features & Standard Inclusions:

  • Time-Proven Design: Rely on a compressor design that has stood the test of rigorous industrial demands.

  • Quiet Performance Series Compressors: Experience smoother and quieter operation thanks to balanced pistons and crankshaft.

  • Low Sound Enclosure: Designed to minimize noise pollution in your work environment.

  • Certified Tank: Both CRN & ASME certified, and National Board Registered with ASME certified safety valves on both tanks and pumps.

  • Magnetic Starter: Ensures a secure and efficient start-up while reducing electrical wear.

  • Shipped With Oil: Arrives ready to work, reducing initial setup time.

  • Low Oil Level Switch & Automatic Timer Tank Drain: Maximizes efficiency and minimizes the need for manual maintenance.

  • Integrated Aftercooler with Overheating Protection: Ensures your unit performs optimally and safely under varying conditions.

Durability & Reliability:

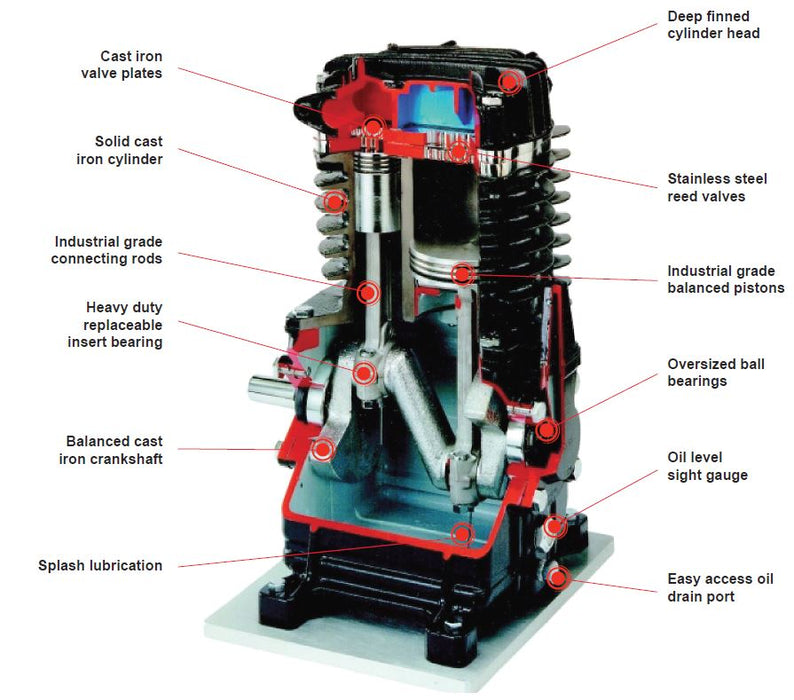

Constructed with a solid cast iron cylinder, crankshaft, and valve plates, the RCP provides unmatched durability. Aluminum head and coolers with deep fins contribute to exceptional heat dissipation. The oversized main bearings and automotive-style replaceable insert bearings result in a highly durable compressor pump. Every unit is 100% tested at full pressure to guarantee reliability.

The CP Compressor Guarantee:

Chicago Pneumatic (CP) is dedicated to delivering high-quality, reliable equipment. Our compressors are 100% factory tested, and we back our products with a competitive warranty. Two-stage reciprocating units come with a 2-year warranty, giving you peace of mind for your investment.

Note: Excluding Two-stage Gasoline Drive Contractor Series, which are covered for 1 year.


Perfectly suited for a wide array of industrial applications, such as:

  • Automotive Repair
  • Manufacturing
  • Construction
  • Pneumatic Tool Operations
  • Painting & Sandblasting

Trust in the time-proven design and exceptional strength of the Chicago Pneumatic RCP-7583VQP. For more information, contact our compressed air advisors who can offer expert advice tailored to your specific needs.

Order now and elevate your industrial capabilities with a product that guarantees performance and durability!
