Description

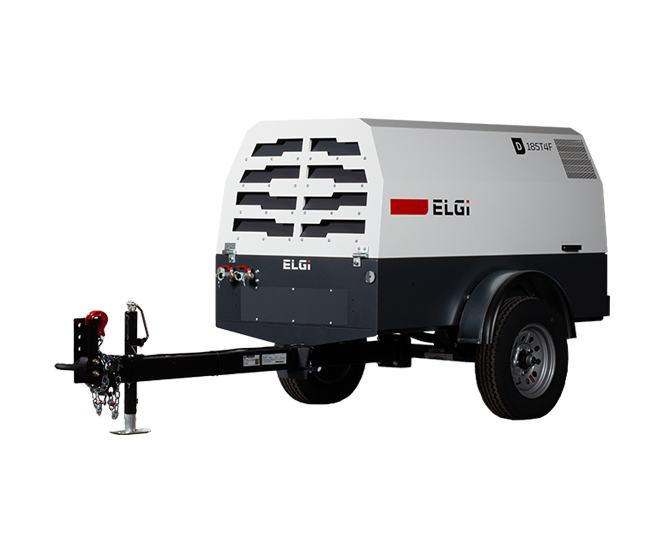

ELGi D185T4F Portable Diesel Air Compressor - 185 CFM at 100 PSI

Powerful. Compact. Jobsite Ready.

The ELGi D185T4F Portable Diesel Air Compressor delivers rugged performance, reliability, and portability for demanding construction, industrial, and service applications. Producing 185 CFM at 100 PSI, this towable rotary screw compressor provides the airflow needed to operate pneumatic breakers, air tools, utility equipment, construction tools, and other equipment requiring a dependable source of compressed air in the field.

Powered by a 49 HP Kohler KDI 1903 TCR diesel engine, the D185T4F combines ELGi's proven rotary screw compressor technology with a fuel-efficient, turbo-intercooled diesel engine designed to operate without a diesel particulate filter (DPF).

Built around a durable metal enclosure, intelligent controls, and a direct-drive compressor system, the ELGi D185T4F is designed to handle tough jobsites while remaining compact and easy to operate.

ELGi D185T4F Specifications

• Free Air Delivery: 185 CFM
• Operating Pressure: 100 PSI
• Minimum Working Pressure: 73 PSI
• Engine: Kohler KDI 1903 TCR
• Engine Power: 49 HP @ 2,600 RPM
• Engine Type: 3-Cylinder, 4-Stroke Diesel
• Displacement: 1,903 cc
• Aspiration: Turbo Intercooler
• Fuel System: High-Pressure Common Rail
• Drive System: Engine-to-Airend Direct Drive
• Air Outlets: (2) 3/4"
• Fuel Tank Capacity: 23 Gallons
• Fuel Consumption: 1.6 GPH
• Battery: 12V, 100Ah, 790A
• Maximum Ambient Temperature: 122°F
• Minimum Working Temperature: 14°F

Running Gear Configuration

• Dimensions: 124" L x 53" W x 54" H
• Dry Weight: 2,160 lbs.

Built for Demanding Jobsites

The ELGi D185T4F 185 CFM portable air compressor is engineered for professional users who depend on their equipment every day. Its durable metal enclosure helps protect major components from jobsite hazards while resisting dents and fading.

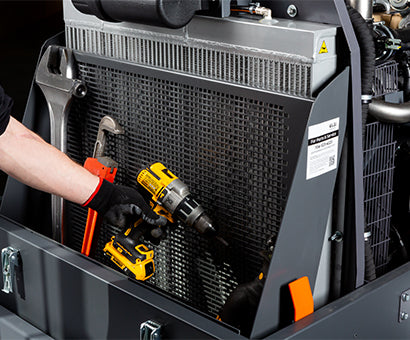

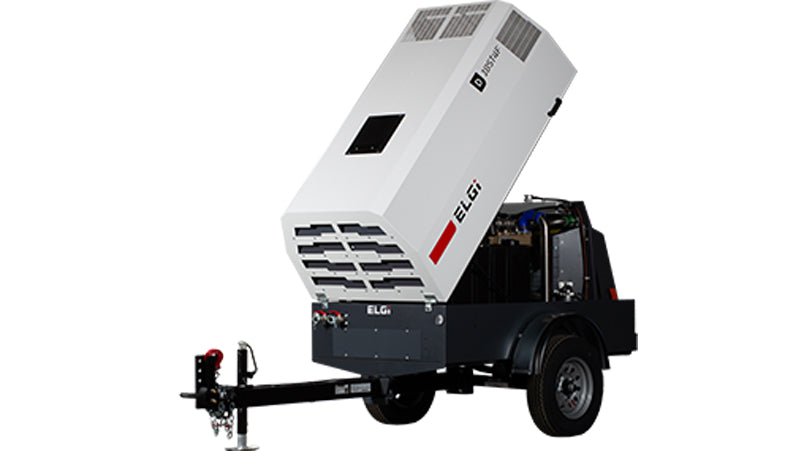

The compact package is designed to provide easy access to key components while keeping the compressor protected during transportation and operation. A conveniently positioned standard toolbox provides storage for hoses, fittings, and other jobsite accessories.

Kohler Diesel Power Without a DPF

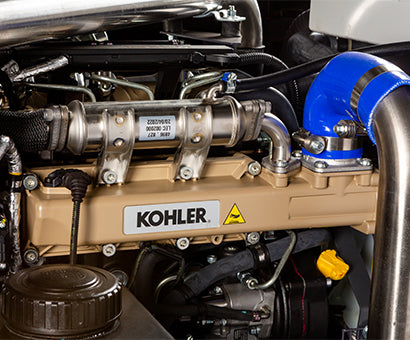

The D185T4F is powered by the Kohler KDI 1903 TCR, a 1,903 cc, three-cylinder diesel engine producing up to 49 HP at 2,600 RPM.

The high-pressure common rail fuel system and turbo-intercooled design provide dependable power for demanding compressor applications. The engine operates without a diesel particulate filter, helping simplify maintenance compared with engines requiring a DPF system.

185 CFM at 100 PSI

With 185 CFM of free air delivery at 100 PSI, the D185T4F provides the compressed air capacity needed for a wide variety of pneumatic equipment.

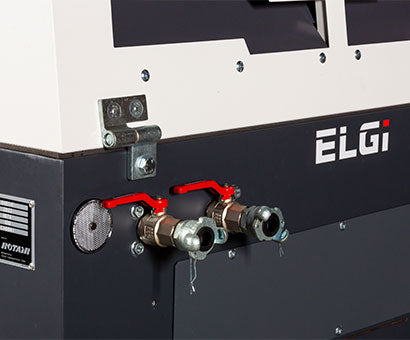

Two 3/4-inch outlet valves allow hoses and pneumatic tools to be connected directly to the compressor, making the D185T4F an excellent choice for construction crews, contractors, municipalities, utility companies, equipment rental businesses, and industrial service operations.

Intelligent Controls and Protection

DeepSea Controller

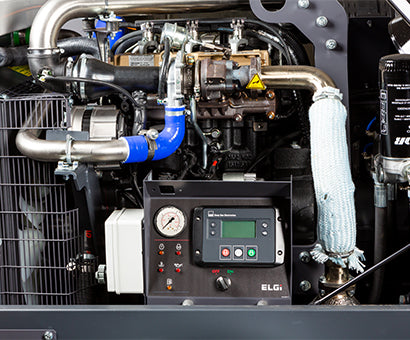

The D185T4F features a DeepSea controller providing flexible compressor control along with built-in monitoring and machine protection.

The controller makes it easier for operators to monitor compressor operation while helping protect critical components during use.

Intelligent Start/Stop System

ELGi's Intelligent Start/Stop System helps prevent cold starting and blowback, providing additional protection for the compressor during startup and shutdown.

Direct Drive Design

The engine-to-airend direct-drive system efficiently transfers power from the Kohler diesel engine directly to the ELGi rotary screw airend.

The straightforward drive arrangement is designed for dependable performance in demanding portable compressor applications.

23-Gallon Fuel Tank

A large 23-gallon onboard diesel fuel tank helps keep the D185T4F operating throughout the workday.

Published fuel consumption is approximately 1.6 gallons per hour, providing an effective balance between portable compressed air output and diesel fuel usage.

Ideal Applications

The ELGi D185T4F Portable Diesel Air Compressor is well suited for:

• Construction sites
• Pneumatic breakers and jackhammers
• Utility and municipal work
• Road and pavement repair
• Equipment maintenance
• Industrial field service
• Rental equipment fleets
• Pneumatic tools
• Remote compressed air applications
• General contracting
• Infrastructure projects

ELGi D185T4F Warranty

The ELGi D185T4F is backed by:

• 5-Year / Unlimited-Hour ELGi Airend Warranty
• 1-Year / 2,000-Hour Full Machine Warranty
• 3-Year / 2,000-Hour Kohler Engine Warranty

This comprehensive warranty coverage provides additional peace of mind for contractors and businesses relying on their portable compressor for everyday operation.
