Description

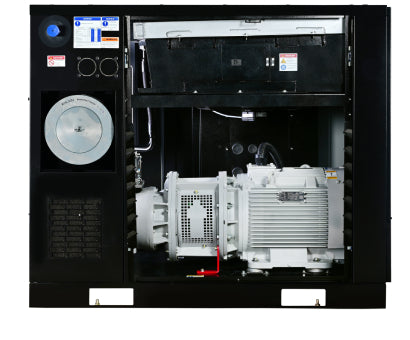

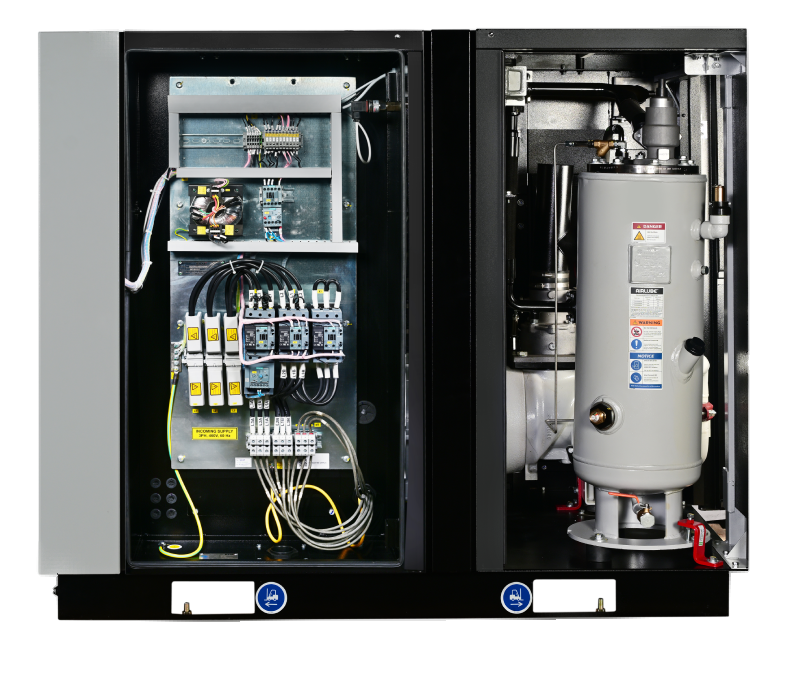

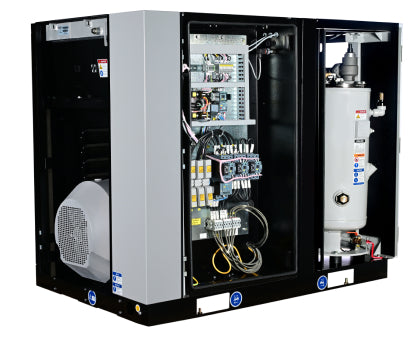

ELGi EQ Series 25hp Base Mounted Rotary Screw Air Compressor (Model EQ 18)

Powerfully built. Efficiently designed. Backed by best-in-class warranty.

The ELGi EQ Series 25hp Base Mounted Rotary Screw Air Compressor is your go-to solution for reliable, continuous compressed air—engineered for tough industrial environments and high-demand applications. With smart controls, robust internals, and low maintenance requirements, this unit is built to deliver serious performance and serious value.

Technical Specifications – EQ18 (25hp Base Mount)

• Motor Power: 18.5 kW (25 hp)

• Working Pressure Options: 100, 125, 150, or 175 PSI

• Free Air Delivery:

  • 100 PSI – 111 CFM

  • 125 PSI – 100 CFM

  • 150 PSI – 87 CFM

  • 175 PSI – 78 CFM

• Noise Level: Just 70 dB(A) for a quieter shop environment

• Unit Dimensions: 59" L x 32.3" W x 48" H

• Weight: 1,477 lbs

Performance Features:

• Oil-Injected & Air-Cooled: Designed for dependable daily operation with reduced thermal stress.

• Optimized Cooling System: Rated for up to 122°F ambient conditions—perfect for hot, dusty shops and tight mechanical rooms.

• Three-Stage Heavy Duty Filtration: Delivers cleaner air with just 3 ppm oil carryover, ensuring better downstream performance and extended equipment life.

• Neuron XT Microprocessor Controller: Industrial-grade brain of the compressor featuring real-time monitoring, safety shutdowns, data logging, and remote communication capability.

• Reliable TEFC Motor: ELGi’s TORQ motor features Class F insulation—designed for severe duty in demanding applications.

• Wye-Delta Starting: Reduces startup current to extend motor life and protect electrical infrastructure.

• Modular Configurations: Also available in tank-mounted packages with integrated refrigerated air dryer and filters for complete plug-and-play air systems.

Warranty You Can Count On:

• 1-Year Bumper-to-Bumper Coverage

• 5-Year Complete Package Warranty

• 6-Year Airend Warranty

• No Service Contract Required

Why Choose Compressed Air Advisors Online?

As an authorized ELGi distributor, Compressed Air Advisors Online brings you expert advice, fast shipping, and flexible financing options to make your purchase easy and worry-free. From quote to startup, we’re your compressed air partner.

🛒 Ready to order or learn more? Contact us now or explore your financing options here.

Click Here To See Elgi EQ Series Warranty

Click Here To Open Elgi EQ Series Brochure
