Description

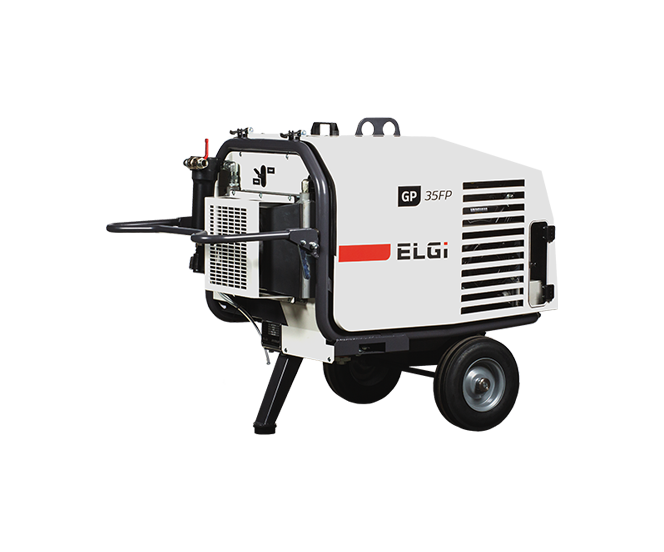

ELGi GP35FP Portable Gas Air Compressor – 35 CFM @ 218 PSI | Honda GX690 Engine
High-Pressure Compressed Air Built for Fiber Optic Cable Installation
The ELGi GP35FP Portable Gas Air Compressor is purpose-built for fiber optic cable blowing applications that require clean, cool, high-pressure compressed air in a compact and portable package. Delivering 35 CFM at 218 PSI, the GP35FP gives fiber installation professionals the pressure and airflow needed for demanding cable installation work while remaining easy to transport and maneuver on the jobsite.
Powered by a proven Honda GX690 22 HP gasoline engine, the GP35FP combines dependable power with ELGi's efficient rotary screw airend technology. Its compact design is especially useful for utility crews, telecommunications contractors, and fiber installation professionals who need high-pressure compressed air without hauling a large diesel compressor.
A key advantage of the GP35FP is its integrated air-treatment system. Two built-in aftercoolers and a moisture separator reduce the discharge air temperature to approximately 3.6°F above ambient temperature, helping deliver cooler, drier compressed air for sensitive fiber optic cable blowing applications.
Backed by ELGi's 5-year/unlimited-hour airend warranty, the GP35FP provides a durable, application-specific compressed air solution for professional fiber installation crews.
Key Features & Benefits
35 CFM at 218 PSI
- Produces 35 CFM of free air delivery
- Maximum operating pressure of 218 PSI
- Designed specifically for high-pressure fiber optic cable blowing applications
- Minimum working pressure of 73 PSI
Honda GX690 Gasoline Engine
- Powered by a Honda GX690 gasoline engine
- Produces up to 22 HP
- 2-cylinder, 4-stroke engine design
- Air-cooled for straightforward operation and maintenance
- Reliable gasoline power eliminates the need for a diesel-powered tow-behind compressor
Integrated Aftercooling System
- Equipped with two integrated aftercoolers
- Reduces compressed-air outlet temperature to approximately ambient temperature +3.6°F
- Helps protect fiber installation equipment and improve cable blowing performance
- Built directly into the compressor package for a compact installation
Integrated Moisture Separator
- Built-in moisture separator helps remove condensed moisture from the compressed-air stream
- Provides improved air quality for fiber optic cable blowing applications
- Helps prevent excessive moisture from entering cable conduit during installation
Compact Portable Design
- Measures approximately 51" L x 34" W x 50" H
- Dry weight of approximately 700 lbs.
- Compact footprint makes the GP35FP easier to transport and position at utility and telecommunications jobsites
- Designed to provide high-pressure performance without the footprint of a larger tow-behind compressor
Belt-Driven Rotary Screw Airend
- Engine-to-airend belt-drive system
- Proven rotary screw compressor technology
- Designed for consistent airflow during demanding cable installation work
3/4-Inch Air Outlet
- Equipped with a single 3/4-inch outlet valve
- Provides a straightforward connection for high-pressure air hose and fiber blowing equipment
Strong Warranty Coverage
- 5-Year / Unlimited-Hour ELGi Airend Warranty
- 1-Year / 2,000-Hour Full Machine Warranty
- 3-Year / Unlimited-Hour Honda Engine Warranty
Ideal Applications
The ELGi GP35FP is specifically suited for applications including:
- Fiber optic cable blowing
- Telecommunications construction
- Fiber network installation
- Utility construction
- Underground fiber installation
- Cable installation contractors
- Broadband infrastructure projects
- Field service and telecommunications crews
Technical Specifications
| Specification | ELGi GP35FP |
|---|---|
| Free Air Delivery | 35 CFM |
| Operating Pressure | 218 PSI |
| Minimum Working Pressure | 73 PSI |
| Drive System | Engine-to-Airend Belt Drive |
| Air Outlet Temperature | Ambient +3.6°F |
| Outlet Valve | 1 x 3/4" |
| Fuel Tank Capacity | 3.9 Gallons |
| Fuel Consumption | 1.7 GPH |
| Battery | 12V, 45Ah, 330A |
| Oil Cooling Capacity | 1.33 Gallons |
| Dimensions | 51" L x 34" W x 50" H |
| Dry Weight | 700 lbs. |
| Engine Manufacturer | Honda |
| Engine Model | GX690 |
| Engine Type | 4-Stroke |
| Engine Displacement | 627 cc |
| Cylinders | 2 |
| Aspiration | Naturally Aspirated |
| Maximum Engine Power | 22 HP @ 3,400 RPM |
| Maximum Engine Speed | 3,600 RPM |
| Minimum Engine Speed | 2,000 RPM |
| Cooling System | Air Cooled |
| Maximum Working Temperature | 115°F |
| Minimum Working Temperature | 14°F |
Frequently Asked Questions
How much air does the ELGi GP35FP produce?
The ELGi GP35FP delivers 35 CFM at an operating pressure of 218 PSI. It is specifically designed to provide the high-pressure compressed air required for professional fiber optic cable blowing applications.
What is the ELGi GP35FP designed for?
The GP35FP is specifically designed for fiber optic cable blowing and telecommunications installation. Its combination of 35 CFM airflow, 218 PSI pressure, integrated aftercooling, and moisture separation makes it particularly well suited for fiber installation crews.
What engine does the ELGi GP35FP use?
The GP35FP is powered by a Honda GX690 22 HP gasoline engine. The engine is a naturally aspirated, 2-cylinder, 4-stroke design.
Does the GP35FP have an aftercooler?
Yes. The GP35FP includes two integrated aftercoolers that reduce compressed-air discharge temperature to approximately 3.6°F above ambient temperature.
Does the GP35FP remove moisture from the compressed air?
The compressor includes an integrated moisture separator to help remove condensed moisture from the compressed-air stream before it reaches the fiber blowing equipment.
How much does the ELGi GP35FP weigh?
The GP35FP has a dry weight of approximately 700 lbs., making it substantially more compact and maneuverable than many larger high-pressure portable compressors.
What size air connection does the GP35FP have?
The GP35FP is equipped with one 3/4-inch air outlet valve.
What warranty comes with the ELGi GP35FP?
The GP35FP includes a 5-year/unlimited-hour ELGi airend warranty, a 1-year/2,000-hour full-machine warranty, and a 3-year/unlimited-hour Honda engine warranty.
