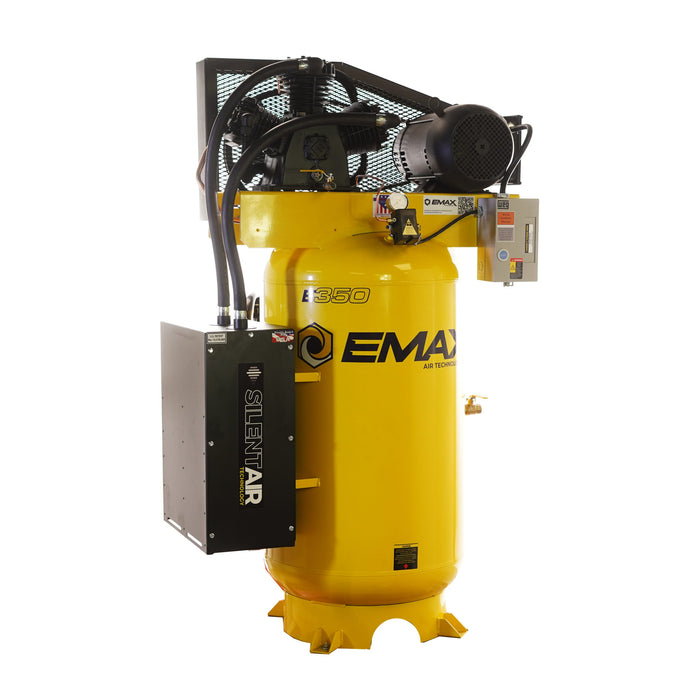

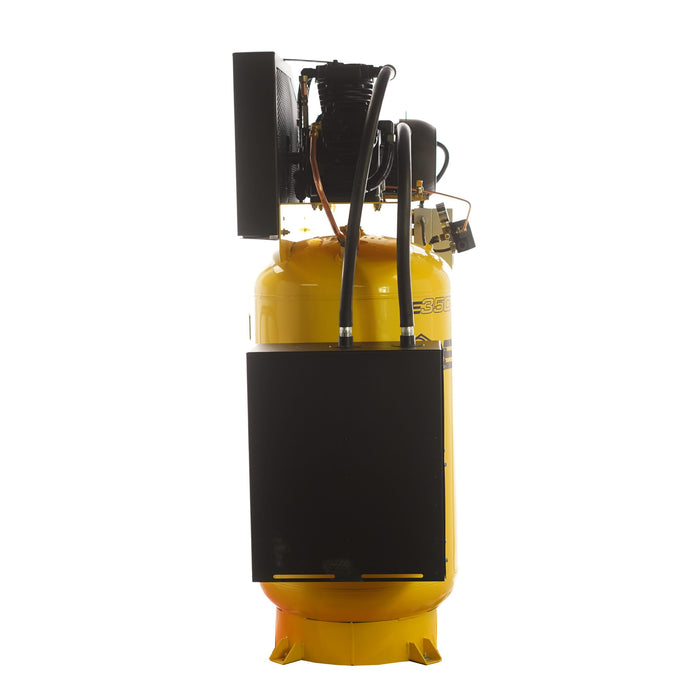

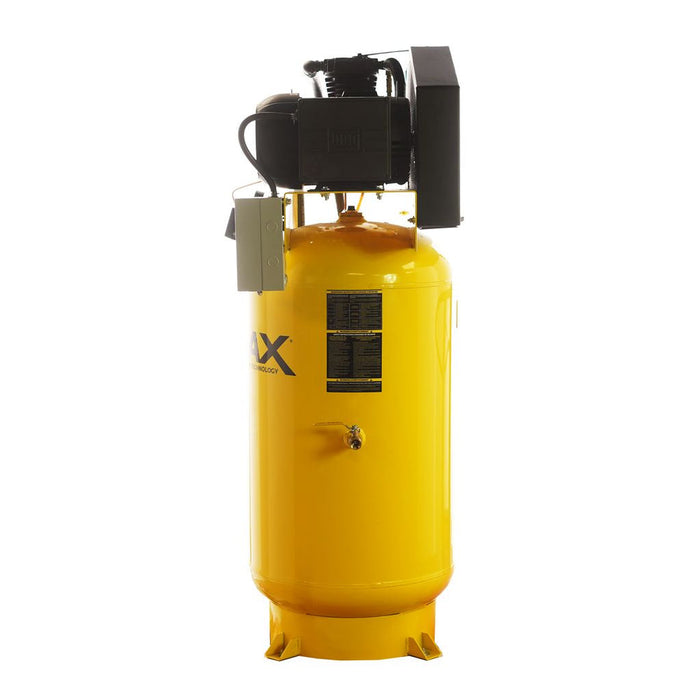

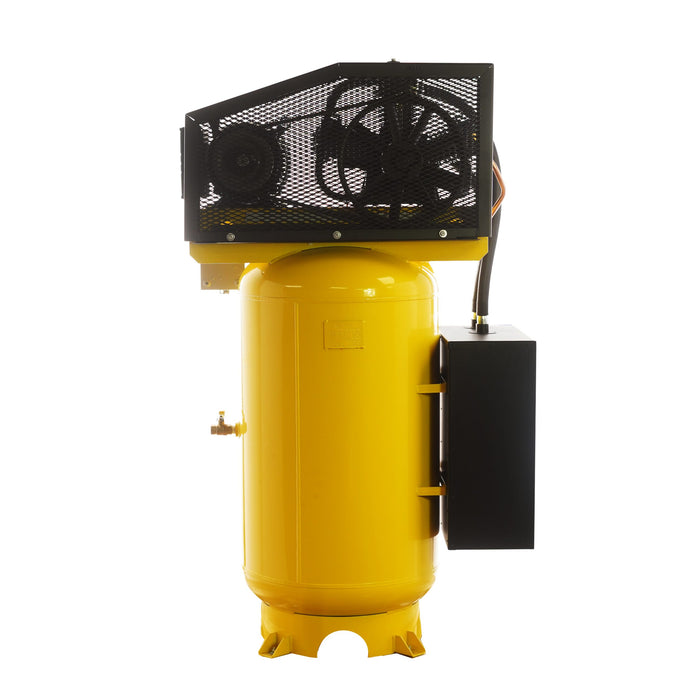

EMAX Silent Air ESS07V080Y1 – 7.5 HP Two-Stage Reciprocating Air Compressor, 26 CFM, 80-Gallon Vertical Tank, 230V/1Ph

Description

EMAX ESS07V080Y1 Silent Air 7.5 HP 26 CFM 80-Gallon Compressor

Industrial compressed air with reduced intake noise. The EMAX Silent Air ESS07V080Y1 combines a 7.5 HP, 230V single-phase motor, an 80-gallon vertical receiver and a three-cylinder, two-stage splash-lubricated pump. With an advertised 26 CFM output, it is designed for industrial and professional shop applications where noise control and equipment accessibility matter.

EMAX's patented Silent Air intake assembly uses noise-reducing baffles and high-capacity filtration to help reduce intake noise without a full sound enclosure. The stationary package includes vibration isolator pads. Free shipping applies under our qualifying-order policy.

Features and Benefits

• Silent Air intake-noise reduction: Patented silencer technology reduces intake noise without enclosing the entire compressor, keeping routine service access more convenient.
• Two-stage piston compression: The three-cylinder configuration supports industrial-duty compressed air production in a stationary compressor package.
• 80-gallon vertical receiver: Helps buffer intermittent air demand while using less floor space than a comparable horizontal tank.
• Single-phase electrical configuration: Designed for facilities with appropriately sized 230V single-phase electrical service.
• Splash-lubricated compressor pump: A traditional pump design that requires correct oil level, lubricant choice and routine oil service.
• V-belt drive and isolator pads: Belt drive transmits power to the pump, while supplied pads help control vibration when properly installed.

Technical Specifications

Recommended Applications

Consider this compressor for automotive service shops, machine and fabrication shops, maintenance departments and other facilities that require stationary piston-compressor air. Suitability depends on pressure, actual simultaneous air demand, duty cycle and required air quality. Compressed Air Advisors can help size the complete system before purchase.

Installation and Maintenance

Verify electrical supply, available starting capacity, ventilation and service clearances. Install on a suitable surface and use the supplied isolator pads according to EMAX instructions. Drain condensate, inspect intake filters and belts, and maintain the pump with the manufacturer-approved lubricant. Check the supplied operator's manual for break-in instructions and service intervals.

Complete Your Compressed Air System

For cleaner, drier compressed air, consider a properly sized refrigerated air dryer, water separator, coalescing filters, automatic condensate drain and suitable compressed-air piping. Explore our vertical tank-mounted reciprocating compressors or contact us to select accessories for your application.

Why Buy from Compressed Air Advisors Online?

Compressed Air Advisors Online helps customers compare real-world airflow requirements, electrical configurations and air treatment options before they purchase. We supply industrial compressed air equipment nationwide and can help you choose a system sized for your shop rather than relying on horsepower alone.

Ready to get started? Order online or contact Compressed Air Advisors for assistance with sizing, compatibility, freight delivery and accessory selection.

Frequently Asked Questions

How much air does the ESS07V080Y1 produce?

This model is advertised at 26 CFM. Confirm the corresponding operating pressure and your tools' simultaneous demand before selecting a compressor. We can help compare compressor output with your required working pressure.

Can it operate on single-phase power?

Yes. This 7.5 HP configuration is listed for 230V single-phase service. A qualified electrician should verify circuit sizing, starting load and local electrical requirements before installation.

How loud is the Silent Air system?

The Silent Air intake assembly is designed to reduce the noise created as air enters the pump. EMAX describes reductions of up to 50% in perceived noise under applicable conditions; exact dBA for this model has not been verified, so do not assume a fixed sound rating.

What is the difference between splash and pressure lubrication?

This compressor uses a splash-lubricated pump that distributes oil mechanically from the crankcase. It is not the same as EMAX pressure-lubricated pump configurations. Correct oil grade and fill level are essential.

Does the compressor include an air dryer?

No refrigerated or desiccant air dryer is included in the described configuration. If your application requires dry air, consider a correctly sized dryer, particulate filtration and condensate management.

Is this compressor suitable for a body shop or fabrication shop?

It may be suitable where 26 CFM and the available pressure meet the equipment's actual duty requirements. Paint booths, multiple tools and other continuous-use applications should be assessed for demand, air quality and duty cycle before ordering.

What maintenance does the compressor need?

Follow EMAX's maintenance schedule for pump oil, intake-filter media, belts, drain operation and safety devices. Inspect belt tension and receiver condensate regularly, and perform servicing only after isolating electrical power and relieving pressure.

What is included with the unit?

The specified package includes the compressor, 80-gallon vertical receiver, Silent Air intake system and isolator pads. Add-on air treatment, external piping and electrical installation are separate unless specifically quoted.

Does it qualify for free shipping?

Yes, this product qualifies under Compressed Air Advisors' free-shipping offer. Confirm any liftgate, site-access or special delivery requirements for this freight shipment.
