EMAX Silent Air ESS07V080Z1 – 7.5 HP MaxFlo Two-Stage Reciprocating Air Compressor, 35.2 CFM @ 100 PSI, 80-Gallon Vertical Tank, 230V/1Ph
FREE SHIPPING
On All Orders Over $149.00
Satisfaction Guaranteed
Easy Exchanges & Returns
Secure checkout
Protected By SSL
Description

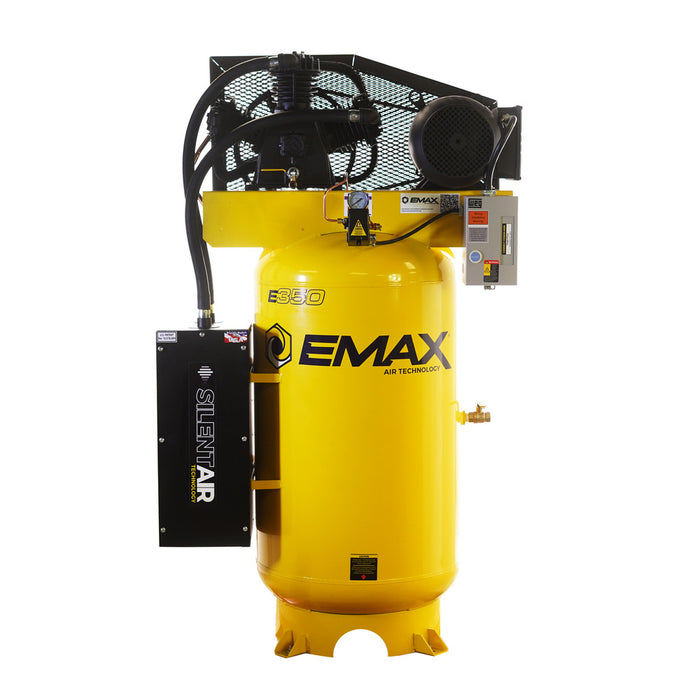

EMAX ESS07V080Z1 MaxFlo Silent Air 7.5 HP Compressor
Designed for professional shops demanding higher piston-compressor airflow, the EMAX ESS07V080Z1 MaxFlo delivers a manufacturer-listed 35.2 CFM at 100 PSI from a 7.5 HP, 230V single-phase compressor with an 80-gallon vertical receiver. Its three-cylinder, two-stage splash-lubricated pump combines with the patented Silent Air intake-noise reduction system and isolator pads for industrial shop use.
Free shipping is included under our qualifying-order policy. This is a stationary compressor package, not a bare pump or integrated dryer system.
Key Features and Benefits
Silent Air technology: Engineered intake silencer with baffle plates and high-capacity filter media reduces intake noise without a full compressor enclosure.
- Two-stage cast-iron piston pump: Industrial splash-lubricated configuration built for long-term service with scheduled maintenance.
- 80-gallon vertical receiver: Provides air storage while conserving workshop floor space.
- Dual V-belt drive: Helps distribute drive load and simplifies belt inspection and maintenance.
- Magnetic starter and isolator pads: Supports electrical starting and reduced transmitted vibration when properly installed.
Technical Specifications
| Model / MPN | ESS07V080Z1 |
|---|---|
| Manufacturer part # | E01ISXXS07V080ZXXXX |
| UPC | 810070054106 |
| Horsepower | 7.5 HP |
| Airflow | 35.2 CFM @ 100 PSI (manufacturer catalog) |
| Max pressure | 175 PSI |
| Electrical | 230V single-phase |
| Tank | 80-gallon vertical |
| Pump | Three-cylinder, two-stage, splash-lubricated |
| Pump speed | 730 RPM |
| Motor | ODP, 1740 RPM |
| Outlet | 3/4 in. |
| Starter | Magnetic starter |
| Drain | Manual |
| Recommended breaker | 50 A, subject to code and electrician verification |
| Uncrated dimensions | 39 × 25 × 75 in. |
| Uncrated weight | 829 lb |
| Crated dimensions | 48 × 46 × 87 in. |
| Crated weight | 899 lb |
| Certifications | ETL, ASME, CRN |
| Service kit | EFKIT008AWB |
| Pump oil capacity | Verify with EMAX; source lists zero, which is not a usable fill specification |
Applications and Best Uses
Consider this model for automotive service, fleet maintenance, metal fabrication, machine shops and industrial repair facilities. Select the compressor by tool air usage, actual operating pressure, simultaneous demand and duty cycle, not horsepower alone. Contact Compressed Air Advisors for help with sizing.
Installation and Maintenance
Confirm suitable 230V single-phase power, wiring, breaker sizing, ventilation, clearances, floor support and freight unloading arrangements. Check pump oil before startup, drain receiver condensate, and maintain intake filters, belts and lubrication according to the EMAX manual. EMAX's online specifications do not provide a reliable oil-fill quantity for this SKU, so verify that detail before installation.
Recommended Accessories
Protect tools and processes with an appropriately sized refrigerated dryer, water separator, coalescing filtration, condensate drain and compressed-air piping. Browse vertical tank-mounted air compressors or ask us for assistance selecting air-treatment components.
Why Buy from Compressed Air Advisors Online?
Compressed Air Advisors Online helps businesses match compressor performance to real air demand, evaluate air-treatment requirements and choose dependable equipment for industrial and commercial operations nationwide. Our team can assist with equipment sizing, accessory selection and freight-delivery questions before you order.
Order online or contact our team to confirm the ESS07V080Z1 is the right fit for your application.
Frequently Asked Questions
How much air does the ESS07V080Z1 deliver?
EMAX's 2025 catalog lists 35.2 CFM at 100 PSI for the MaxFlo model. Actual compressor selection should account for the air consumption and operating pressure of the connected tools.
What electrical service does it need?
This is the 230V single-phase version. EMAX lists a 50A recommended breaker, but the final electrical installation must be checked by a qualified electrician against the motor nameplate and local code.
Is the MaxFlo pump splash or pressure lubricated?
ESS07V080Z1 has a two-stage splash-lubricated pump. Other EMAX models use pressure lubrication, so verify the exact part number when comparing equipment.
Does Silent Air require a fully enclosed cabinet?
No. The Silent Air silencer reduces air-intake noise through baffles and high-capacity filtration while preserving access to the compressor for service. EMAX advertises up to 50% quieter operation under its stated conditions.
What is the tank size and orientation?
This model has an 80-gallon vertical stationary tank. Ensure suitable clearance for installation, ventilation, piping and maintenance.
Does the compressor include a refrigerated air dryer?
No dryer is listed with this compressor. Depending on your application, add a properly sized refrigerated dryer, filters, water separator and drain.
What lubricant and maintenance does it require?
Follow the EMAX manual for the lubricant grade, oil capacity and service intervals. The provided website data shows a zero-quart capacity, which should not be treated as a valid fill amount.
Is it suitable for a machine shop or automotive shop?
It can be considered for shops whose air-demand profile fits its verified CFM and pressure. Continuous-duty tools and paint applications may need additional air treatment or a different compressor configuration.
Does it qualify for free shipping?
Yes, the compressor qualifies for our free-shipping offer. Confirm any special site access, unloading, or liftgate delivery requirements.
