Description

CT SERIES FEATURES AT A GLANCE

 100% CAST-IRON CYLINDERS, CYLINDER HEADS CONNECTING RODS, AND HIGH

PRESSURE PISTONS

More cast-iron for longer service life.

• Two-stage cast-iron pump is significantly more durable than pumps with aluminum components
• Deep-finned cast-iron cylinders and heads for cool operation
• Industry-leading cast-iron cylinders high-pressure pistons for extreme durability
• Ductile iron crankshaft is stronger, more corrosion-resistant and less likely to break

QUALITY COMPONENTS

Built to last for superior compressor life.

• High-flow, heavy-duty stainless steel channel valve system delivers more cfm per horsepower
• Precision-fit, industrial-grade main roller bearings support all rotating parts for longer pump life
• Robust intercooler increases compressor efficiency
• Oil level sight glass is conveniently located for easy monitoring
• Metal intake filter/silencer is superior to plastic

VALUE-MINDED INDUSTRIAL DESIGN

Robust performance at a lower cost.

• Provides higher pressures and longer life than single-stage pumps
• Follows the same world-class quality design standards as other

FS-Curtis products

• Slow turning pump increases pump life
• Robust design sets the CT Series apart from comparable entry level Models

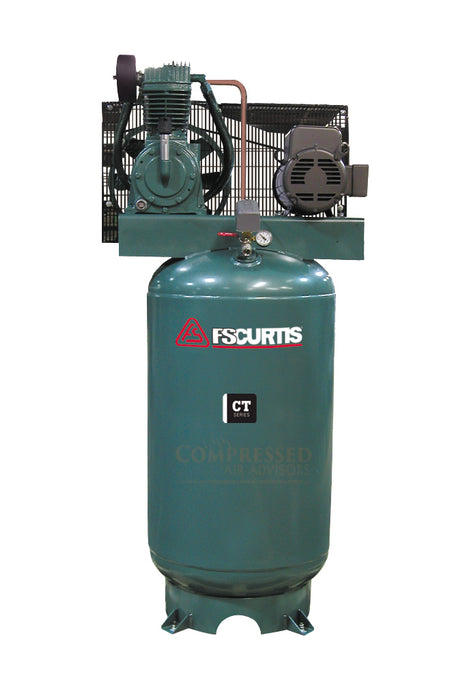

 SIMPLEX COMPRESSORS

Standard Features

• Cast-iron 2-stage pump built to ISO 9001 standards
• Slow speed pump with V-belt drive
• Rugged NEMA motor with UL-approved electric design
• ASME air tank
• OSHA-approved totally enclosed metal belt guard
• UL-approved pressure switch
• Automatic start-stop control
• Metal intake filter/silencer
• Manual tank condensate drain valve
• Dial read-out pressure gauge
• Loadless starting
• ASME-approved safety valve
• ASME-approved discharge valve
• Factory oil filled

These CT5 Models are supplied with motor thermal overload, magnetic starter is not required.

Twelve (12) months from date of start up or fifteen (15) months from date of shipment, whichever occurs first.
