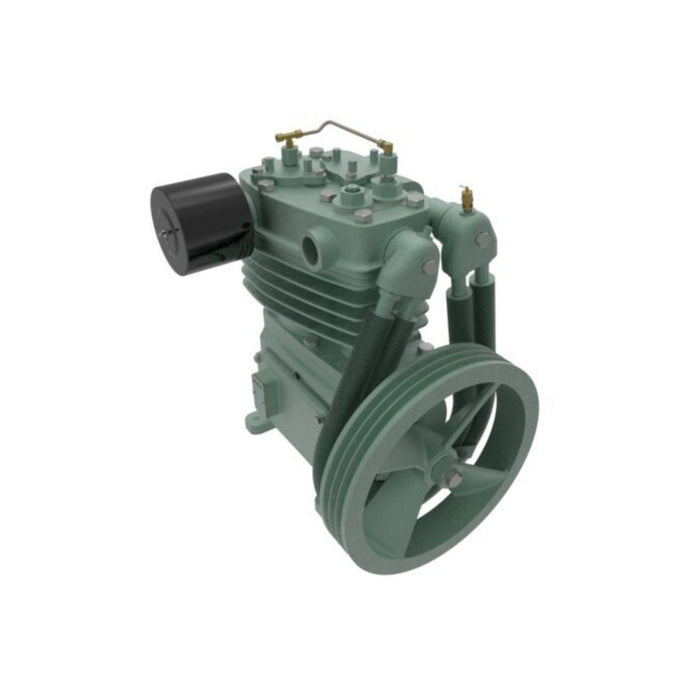

FS-Curtis FMLC89 C89 Bare Air Compressor Pump, 15-20 HP
The FS-Curtis Masterline C89 is a two-stage, oil-lubricated bare reciprocating compressor pump for compatible 15-20 HP systems. Centro-Ring pressure lubrication with disc and spring valves and cast-iron cylinders, heads, connecting rods and crankshaft deliver heavy-duty industrial performance. This listing includes the bare pump only, without motor, tank, belt drive or controls. Free Shipping. Ships without oil.
Features
- Centro-Ring pressure lubrication
- 100% cast-iron cylinders, cylinder heads, connecting rods and crankshaft
- Dynamically balanced flywheel
- Suction head unloaders and stainless steel valves
- Oversized main roller bearings, metal air intake filter silencers
- Finned intercooler; factory assembled in Saint Louis, Missouri
Technical Specifications
| Manufacturer part number | FMLC89 |
|---|---|
| Pump model | C89 |
| Motor horsepower range | 15-20 HP |
| Pump type | Two-stage, oil-lubricated |
| Maximum pressure | 250 PSI |
| Maximum loaded duty cycle | 70% |
| Operating speed | 600-950 RPM |
| Flywheel configuration | 3B |
| Discharge size | 1.5 in. NPT |
| Oil capacity | 2.5 quarts (not included) |
| Dimensions L × W × H | 18 × 22 × 27 in. |
| Weight | 480 lb |
Frequently Asked Questions
Does the C89 include a motor and receiver tank?
No. This is a bare pump replacement assembly, not a complete compressor. Your motor, tank, belts, guard, controls and associated components must be supplied separately.
What horsepower is the FMLC89 designed for?
FS-Curtis lists 15-20 HP for this model. Confirm existing equipment, pump speed and installation requirements before ordering.
Is this single-stage or two-stage?
The C89 is a two-stage oil-lubricated reciprocating compressor pump. It is intended for compatible industrial compressed-air applications.
What is the maximum working pressure and duty cycle?
FS-Curtis specifies 250 PSI maximum pump pressure and 70% maximum loaded duty cycle. The completed compressor's operating settings must respect the ratings of every component.
What RPM and flywheel arrangement does it use?
The manufacturer specifies 600-950 RPM and a 3B flywheel configuration. Confirm the motor and pulley arrangement before installation.
What discharge connection does the pump have?
The published discharge size is 1.5 in. NPT. Verify pipe compatibility and the complete system's pressure rating.
Does the bare pump ship with lubricant?
No. It ships without oil and has a nominal 2.5-quart capacity. Use the appropriate manufacturer-approved compressor lubricant prior to startup.
How do I choose the correct replacement pump?
Compare your existing pump number, horsepower, RPM, flywheel, mounting, and air connections. Compressed Air Advisors can help confirm compatibility before ordering.
Does this qualify for free shipping?
Yes. This pump qualifies for free shipping under our standard qualifying-order policy.
